AR6140-S – Huawei AR6000 Series Enterprise Routers

Add to Wishlist

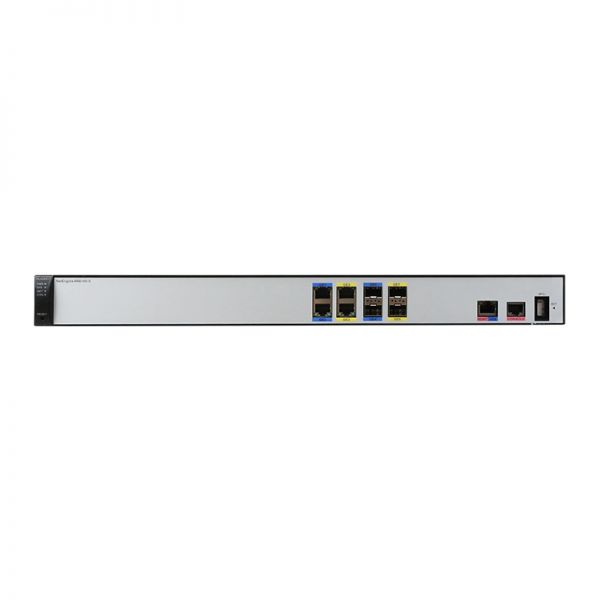

Model: AR6140-S – Huawei AR6000 Series Enterprise Routers
Detail:
Huawei AR6140-S 5 Gigabit Power 4 Gigaoptical enterprise router sits instead of AR2220E-S.
Product Code AR6140-S
Processor ARM64 4-core
Capacity 600PCs
Forwarding performance 9Mpps-25Mpps
Machine switching capacity 20Gbps
Fixed WAN interface 2*GE electrical+ 2*GE optical
Fixed LAN interface 2*GE optical+3GE power (LAN can be switched to WAN)
Number of APs supported for management 12(4 APs are free)
SIC slot 4
WSIC slot (default/maximum) 0/2
XSIC slot (default/maximum) –
Serial auxiliary/console port 1*USB3.0
USB interface 1* RJ45 Console serial port
RAM 2 GB
Flash 1 GB

AED4,399.00

Add to Wishlist

With an innovative CPU + NP heterogeneous forwarding architecture, NetEngine AR6000 series routers deliver performance far beyond the industry average. Meanwhile, critical functions — including SD-WAN, cloud management, routing, switching, Virtual Private Network (VPN), security, voice, and Multiprotocol Label Switching (MPLS) — are integrated to fully support diversified and cloud-based services.

Features

  1. Leading performance

Based on the innovative CPU+NP heterogeneous forwarding architecture, control and forwarding are separated, the single-slot bus bandwidth can reach up to 10Gbps, and there is no bottleneck in service forwarding

  1. Dual-mode network, flexible access

Support mobile mode (3G/LTE) and fixed mode (optical fiber access/copper cable access) to achieve integrated access to wired and wireless applications

  1. Multi-service integration, network integration

Converge routing, switching, 3G/LTE, security and other functional features to achieve all-in-one services.

Compare to Similar Items

Table 2 shows the comparison.

Product model AR6120-S AR6140-S AR6300-S
Processor ARM64 4-core ARM64 4-core ARM64 16-core
Capacity 400PCs 600PCs 3000PCs
Forwarding performance 9Mpps-25Mpps 9Mpps-25Mpps 60Mpps-280Mpps
Machine switching capacity 20Gbps 20Gbps 640Gbps
Fixed WAN interface 1*GE Combo+1*GE electrical+1*10GE optical (compatible with GE optical) 2*GE electrical+ 2*GE optical 14*10GE optical (switchable to GE optical)+10*GE electrical (all WAN Port can be switched to LAN)
Fixed LAN interface 8*GE power (switchable to WAN port) 2*GE optical+3GE power (LAN can be switched to WAN) –
Number of APs supported for management 12(12 APs are free) 12(4 APs are free) 128(4 APs are free)
SIC slot 2 4 4
WSIC slot (default/maximum) 0/1 0/2 2/8
XSIC slot (default/maximum) – – 4/6
Serial auxiliary/console port 1*USB3.0(compatible with USB2.0)+1*USB2.0 1*USB3.0 1* RJ45 Consoleserial port
USB interface 1* RJ45 Console serial port 1* RJ45 Console serial port 1*USB2.0
RAM 2GB 2 GB 8 GB
Flash 1GB/512M ** 1 GB 2 GB
Category:

AR6140-S Specification
Installation type Rack
Dimensions without packaging (H x W x D) [mm(in.)]
  • Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 428.2 mm (1.73 in. x 17.4 in. x 16.86 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 431.2 mm (1.73 in. x 17.4 in. x 16.98 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 175 mm x 710 mm x 550 mm (6.89 in. x 27.95 in. x 21.65 in.)
CPU 1.4 GHz, 4 Cores
Memory 2 GB
NAND Flash 1 GB
Console port RJ45
RTC Supported
Maximum power consumption [W] 32 W
Power supply mode AC built-in
Number of power modules 2
Rated input voltage [V] 100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V] 90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A] 2 A
Maximum output power [W] 60 W/70 W

To view the available maximum output power, run the display power command.
Type of fans Built-in
Number of fan modules 0
Heat dissipation mode Air cooling
Airflow direction Left to right
Extended slots (standard configuration) 4 x SIC
Number of service board slots 4
Redundant power supply Support double power supply (1:1 backup)
RPS input Not supported
PoE Not supported
Noise at normal temperature (acoustic power) [dB(A)] 54.0 dB(A)
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)
