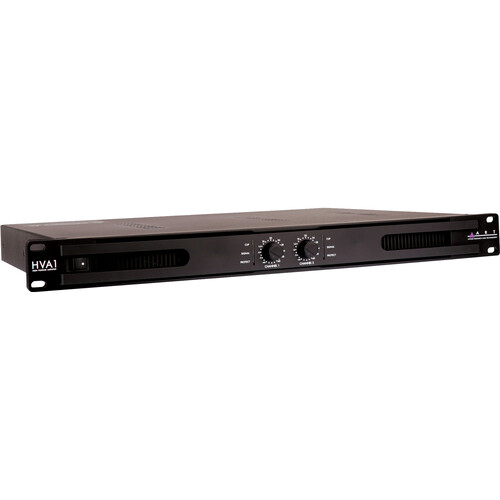

ART HVA1 2-Channel Class-D Installation Amplifier (135W/Channel at 70/100V)

Add to Wishlist
Key Features
  • 1 RU Design
  • High Power Output
  • Low Noise and Low Distortion
  • Euroblock Inputs and Outputs
  • Short Circuit and Thermal Protection
  • On/Off Power Muting Protection
  • Built-In Limiter
  • Front-Mounted Gain Controls
  • Signal, Clip, Power LED Indicators
  • Includes Power Cord

د.إ2,799.00

Add to Wishlist

System installers looking for a high-quality 70/100V power amplifier for their next install will be impressed with the ART HVA1 rack-mountable 2-channel power amplifier designed for retail, restaurants, meeting rooms, and other 70/100V installations.

The amplifier employs a Class-D topology that provides high output with low noise and low distortion. The HVA1 provides an output power rating of 135W with all channels driven or a bridged output of 150W. All inputs and outputs are available with Euroblock connectors. The amplifier includes front-mounted gain controls and indicator LEDS for signal, clip protect, and power. The amplifier also includes a comprehensive set of protection circuits that safe guard against shorts, thermal overload, and power on/off muting. The HVA1 includes a power cord.

  • High current switching power allowing high power output with low noise and low distortion
  • Short circuit, thermal, and power on/off muting protection
  • Built-in limiter
  • Euroblock input and output
  • Front-mounted gain controls for easy access
  • Signal, clip protect, and power LED indicators to monitor performance
  • Disable amplifier outputs remotely
  • Priority, remote test trigger
  • Remote failure status indicator
  • 2-channel installation amplifier
  • 70/100V line operation
  • Power output (70/100V): 2x135W
  • 1 RU rack 19-inch size
  • Switching power, class-D amplifier
SKU: HVA1 Category: Tag:
Key Specs
Number of Channels
2
Amplifier Power Rating
70 V / 100 V:
2x 135 W Peak per Channel
70 V / 100 V:
1x 150 W Peak One Channel Driven
Load Impedance / Voltage
70 / 100 V
Analog Audio I/O
1x Block 6-Pin Balanced Line Input
1x Block 4-Pin Speaker Output
Digital I/O
No
Network I/O
No
Rackmount Size
1 RU
Amplifier Power Rating
70 V / 100 V:
2x 135 W Peak per Channel
70 V / 100 V:
1x 150 W Peak One Channel Driven
Amplifier Class
Class-D
Load Impedance / Voltage
70 / 100 V
Performance
Protections
On/Off Muting, Short Circuit, Thermal
Frequency Response
120 Hz to 17 kHz
Damping Factor
> 200
Input Sensitivity
0.9 V to 1.1 V
Input Impedance
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
Max Gain
40 dB (at 100 V)
SNR
> 95 dB
THD+N
< 0.1%
Crosstalk
> 70 dB
Signal Processing
Limiting
Yes
Connectivity
Analog Audio I/O
1x Block 6-Pin Balanced Line Input
1x Block 4-Pin Speaker Output
Digital I/O
No
Network I/O
No
USB I/O
No
Wireless
No
Power
AC Input Power
110 to 240 VAC, 50 / 60 Hz
AC Power Connector
1x IEC 15 A / NEMA 5-15
Physical
Display & Indicators
Multi-Color LED (Clip/Power/Protect/Signal)
Rackmount Size
1 RU
Cooling
Fan (Variable Speed)
Dimensions
19.0 x 1.8 x 14.2″ / 482.6 x 45.7 x 360.7 mm
Weight
10.4 lb / 4.7 kg
Packaging Info
Package Weight
13.875 lb
Box Dimensions (LxWxH)
24 x 19.5 x 5.1″
