Aruba 1G SFP LC SX 500m MMF XCVR

Add to Wishlist

AED599.00

Add to Wishlist

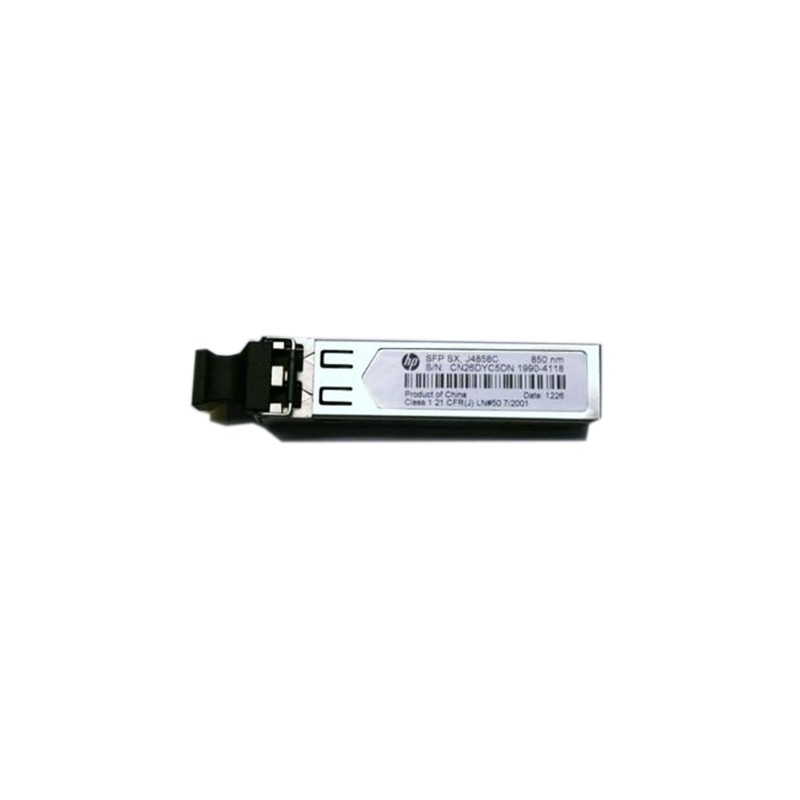

J4858D is an Aruba 1G SFP LC SX 500m OM2 MMF Transceiver.

Quick Spec

Table 1 shows the quick spec.

Product name (SKU) DOM – Digital Optical Monitoring (4×4 part #) Central wl (nm) Fiber mode Fiber diameter (µm) Modal bandwidth (MHz*km) Transmission distance
Aruba 1G SFP LC SX 500m MMF XCVR (J4858D) Yes

(1990-4395 &

1990-4415)

 850 MMF 50/125 500 (OM2)

400

 550 m (1804.46 ft)

500 m (1640.42 ft)
62.5/125 200 (OM1)

160

 275 m (902.23 ft)

220 m (721.78 ft)
SKU: J4858D Category: Tag:

J4858D Specification
Product name (SKU) Aruba 1G SFP LC SX 500m MMF XCVR (J4858D)
DOM – Digital Optical Monitoring (4×4 part #) Yes

(1990-4395 &

1990-4415)
Central wl (nm) 850
Fiber mode MMF
Fiber diameter (µm) | Modal bandwidth (MHz*km) | Transmission distance 50/125 | 500 (OM2), 400 | 550 m (1804.46 ft), 500 m (1640.42 ft)
62.5/125 | 200 (OM1), 160 | 275 m (902.23 ft), 220 m (721.78 ft)
Optical parameters (dBm)

Transmit power

 –9.5 to 0
Optical parameters (dBm)

Receive power

 –17 to –3
Product dimensions (H x W x D) 0.6 x 2.2 x 0.5 in
Weight 0.1 lb
