ASA5512-IPS-K9 Cisco ASA 5500 Series IPS Edition Bundles

Add to Wishlist

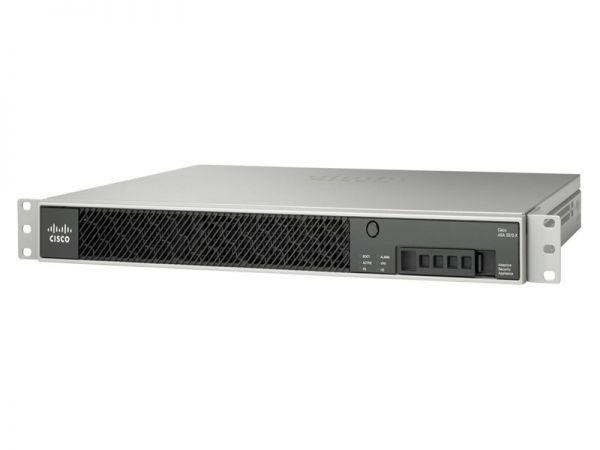

Cisco ASA5512-IPS-K9 ASA 5512-X with IPS, SW, 6GE Data, 1GE Mgmt, AC, 3DES/AES

32,499.00 د.إ

Add to Wishlist

ASA5512-IPS-K9 Overview

Cisco ASA 5500-X Next-Generation Firewall ASA5512-IPS-K9Ā is ASA5512-K9 withĀ IPS service bundled, after this,Ā ASA5512-IPS-K9Ā has a same datasheet with ASA5512-K9 include:Ā 250 IPsec VPN peers, 2 SSL VPN peers, 6 copper Gigabit Ethernet data ports, 1 copper Gigabit Ethernet management port, 1 AC power supply, 3DES/AES encryption.

Quick Specs

Table 1 shows the Quick Specs of the ASA5512-IPS-K9.

Product Code ASA5512-IPS-K9
Interfaces 6 copper GE ports,

1 copper GE management port,

1 expansion slot
Stateful inspection throughput (maximum) 1 Gbps
3DES/AES VPN throughput 200 Mbps
IPsec VPN peers 250
Virtual interfaces (VLANs) 50; 100
Memory 4 GB
Flash 4 GB
Height (rack units) 1 RU
Dimensions (D x H x W) 4.24 x 42.9 x 39.5 cm
Package Weight 13.1 Kg
Manufacturer Warranty 1 year warranty

Product Details

Note:

ā‘  Management 0/0 interface ā‘” Rear panel LEDs
ā‘¢ Console port ā‘£ USB ports
ā‘¤ GigabitEthernet data interfaces ā‘„ Power supply
Category: Tags: , ,

ASA5512-IPS-K9 Specification

Feature Cisco ASA 5512-X; Security Plus
Stateful Inspection Throughput (Maximum) 1 Gbps
Stateful Inspection Throughput (Multiprotocol) 500 Mbps
IPS Throughput 250 Mbps
(Extra hardware not required)
Next-Generation Throughput(Multiprotocol) 200 Mbps
3DES/AES VPN Throughput 200 Mbps
Users/Nodes Unlimited
IPsec VPN Peers 250
Cisco Cloud Web Security Users 100
Premium AnyConnect VPN Peers(Included/Maximum) 2/250
Concurrent Connections 100,000
New Connections/Second 10,000
Virtual Interfaces (VLANs) 50; 100
Security Contexts (Included/Maximum) 0,0;Ā 2,5
High Availability Not supported; Active/Active and Active/Standby
Expansion Slot 1 interface card
User-Accessible Flash Slot No
USB 2.0 Ports 2
Integrated I/O 6 GE Copper
Expansion I/O 6 GE Copper orĀ 6 GE SFP
Serial Ports 1 RJ-45 console
Solid State Drive 1 slot, 120 GB MLC SED
Memory 4 GB
Minimum System Flash 4 GB
System Bus Multibus architecture
Temperature 23 to 104Ā°F (-5 to 40Ā°C)
Relative Humidity 10 to 90 percent noncondensing
Altitude Designed and tested for 0 to 15,000 ft (4572m)
Shock 70G, 4.22 m/sec
Vibration 0.41 Grms2 (3 to 500 Hz) random input
Acoustic Noise 64.2 dBa max
Temperature -13 to 158ĀŗF (-25 to 70ĀŗC)
Relative Humidity 10 to 90 percent noncondensing
Altitude Designed and tested for 0Ā to 15,000 ft (4570m)
Shock 70G, 4.22 m/sec
Vibration 1.12 Grms2 (3 to 500 Hz) random input
AC Range Line Voltage 100 to 240 VAC
AC Normal Line Voltage 100 to 240 VAC
AC Current 4.85A
AC Frequency 50/60 Hz
Dual-Power Supplies None
DC Domestic Line Voltage -40.5 to 56 VDC (-48 VDC nominal)
DC International Line Voltage -55 to -72 VDC

(-60 VDC nominal)
DC Current 15A (maximum input)
Steady State 51W
Maximum Peak 56W
Maximum Heat Dissipation 192 BTU/hr
Form Factor 1 RU, 19-in. rack-mountable
Dimensions (HĀ xĀ W x D) 1.67 x 16.7 x 15.6 In (4.24Ā x 42.9 x 39.5 cm)
Weight (with AC Power Supply) 13.39 lb (6.07 kg)
Safety IEC 60950-1: 2005, 2ndEdition
EN 60950-1:2006+A11: 2009
UL 60950-1:2007, 2ndEdition;
CSA C22.2 No. 60950-1-07, 2ndĀ Edition
Electromagnetic Compatibility (EMC) CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008;
FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009;
ICES-003 ISSUE 4 FEBRUARY.2004;
VCCI: V-3/2011.04;
C-TICK: AS/NZS CISPR 22,2009
KC: KN22 & KN24
Industry Certifications In process
