Firewalls

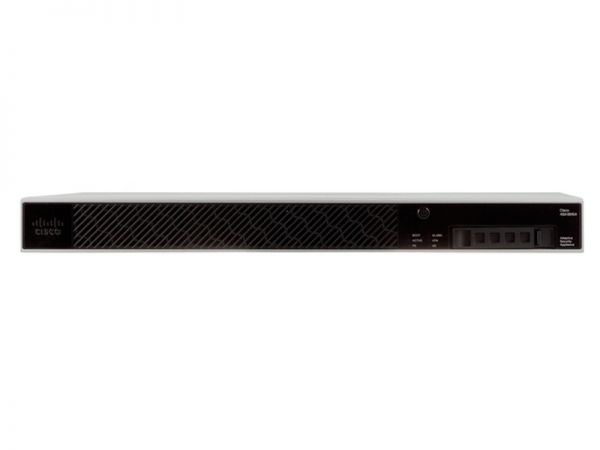

ASA5515-K9 Cisco ASA 5500 Series Firewall Edition Bundle
|
Cisco ASA 5500 Edition Bundle ASA5515-K9 ASA 5515-X with SW, 6GE Data, 1GE Mgmt, AC, 3DES/AES
|
AED24,999.00
ASA5515-K9 Overview
Cisco ASA 5515-X supports Active/Active and Acitve/standby failover to enable the firewall redundancy. It delivers up to 1.2 Gbps stateful inspection throughput, 250 IPsec VPN peers, 250,000 concurrent connections and 1 expansion slot, which makes it ideally suited for the small, mid-size enterprises or branch offices.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | ASA5515-K9 |
| Interfaces | 6 copper GE ports, 1 copper GE management port |
| Stateful inspection throughput (multiprotocol) | 600 Mbps |
| Maximum 3DES/AES VPN throughput | 250 Mbps |
| IPsec site-to-site VPN peers | 250 |
| Virtual interfaces (VLANs) | 100 |
| Memory | 8 GB |
| Flash | 8 GB |
| Height (rack units) | 1 RU |
| Dimensions (D x H x W) | 4.24 x 42.9 x 39.5 cm |
| Package Weight | 13.1 Kg |
Product Details
Notes:
| ā | Power button |
| ā” | Front Panel LED |
| ā¢ | Hard-disk release button |
Table 2 shows the Front Panel LEDsā descriptions.
| LED | Color | Description |
| BOOT | Flashing green | Power-up diagnostics are running, or system is booting. |
| Solid green | System has passed power-up diagnostics. | |
| Off | Power-up diagnostics are not operational. | |
| ACTIVE | Solid green | Failover pair is operating normally. |
| Off | Failover is not operational. | |
| PS | – | Power supply status |
| ALARM | Off | Normal operating system function. |
| Solid amber | Critical Alarm indicating one or more of the following:
āa major failure of a hardware or software component. āan over-temperature condition. āpower voltage is outside of the tolerance range. |
|
| VPN | Solid green | VPN tunnel is established. |
| Off | No VPN tunnel established. | |
| HD | Flashing green | Proportioned to read/write activity. |
| Solid amber | Hard-disk drive failure. | |
| Off | No hard-disk drive present. |
Noteļ¼
| ā | Back Panel LED: Power, Alarm, Boot, Active, VPN, HD0, HD1 | ā£ | Power supply |
| ā” | Console port | ā¤ | GigabitEthernet data interfaces (0/0 through 0/5) |
| ā¢ | USB Ports | ā„ | Management 0/0 interface |
Ā·The GigabitEthernet interface connects with an RJ-45 cable and must be restricted to management use only
ASA5515-K9 Specification
ASA5515-K9 Specifications |
|
| Type | Cisco ASA 5515-X w/ FirePOWER Services |
| Throughput:
Application Control (AVC) |
500 Mbps |
| Throughput:
Application Control (AVC) and IPS |
250 Mbps |
| Maximum concurrent sessions | 250,000 |
| Maximum New Connections per second | 15,000 |
| Supported applications | More than 3,000 |
| URL categories | 80+ |
| Number of URLs categorized | More than 280 million |
| Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
| On-Device Management | ASDM |
| Feature | Cisco ASA 5515-X w/ FirePOWER Services |
| Stateful inspection throughput (maximum1) | 1.2 Gbps |
| Stateful inspection throughput (multiprotocol2) | 600 Mbps |
| Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3 |
250 Mbps |
| Users/nodes | Unlimited |
| IPsec site-to-site VPN peers | 250 |
| Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5 | 250 |
| Virtual interfaces (VLANs) | 100 |
| Security contexts5(included; maximum) | 2.5 |
| High availability | Active/ Active and Active/ Standby |
| Integrated Wireless Access Point
(See Cisco AP 702 datasheet for WiFi technical details) |
N/A |
| Expansion slot | 1 interface card |
| User-accessible Flash slot | No |
| USB 2.0 ports | 2 |
| Integrated I/O | 6 GE copper |
| Expansion I/O | |
| 6 GE copper or 6 GE SFP | |
| Dedicated management port | Yes (1 GE) |
| Serial ports | 1 RJ-45 console |
| Solid-state drive | 1 slot, 120 GB MLC SED |
| Memory | 8 GB |
| System flash | 8 GB |
| System bus | Multibus architecture |
| Temperature | 23 to 104Ā°F (-5 to 40Ā°C) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
| Acoustic noise |
64.2 dBA max |
| Temperature | -13 to 158ĀŗF (-25 to 70ĀŗC) |
| Relative humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0Ā to 15,000 ft (4570 m) |
| AC range line voltage | 100 to 240 VAC |
| AC normal line voltage | 100 to 240 VAC |
| AC current | 4.85A |
| AC frequency | 50/60 Hz |
| Dual-power supplies | None |
| DC domestic line voltage | -40.5 to 56 VDC (-48 VDC nominal) |
| DC international line voltage | -55 to -72 VDC
(-60 VDC nominal) |
| DC current | 15A (maximum input) |
| Steady state | 65W |
| Maximum peak |
70W |
| Maximum heat dissipation |
239 Btu/hr |
| Form factor | 1RU, 19-in. rack-mountable |
| Dimensions
(HĀ xĀ W x D) |
1.67 x 16.7 x 15.6 in. |
| (4.24Ā x 42.9 x 39.5 cm) | |
| Weight (with AC power supply) | 13.39 lb (6.07 kg) |
