| Model: | ASA5525-K9 Cisco ASA 5500 Series Firewall Edition Bundle |
| Detail: |
Cisco ASA 5500 Edition Bundle ASA5525-K9 ASA 5525-X with SW, 8GE Data, 1GE Mgmt, AC, 3DES/AES
|
ASA5525-K9 Overview
Cisco ASA 5525-K9 delivers superior performance with up to 2 Gbps stateful inspection throughput, 750 IPsec VPN peers, 500,000 concurrent connections and 1 expansion slot makes it ideally suited for the small, mid-size enterprises, branch offices or internet edge deployments while delivering enterprise-strength security.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
ASA5525-K9 |
|
Interfaces |
8 copper GE ports, 1 copper GE management port, 1 expansion slot |
|
Stateful inspection throughput (maximum) |
2 Gbps |
|
3DES/AES VPN throughput |
300 Mbps |
|
IPsec VPN peers |
750 |
|
Virtual interfaces (VLANs) |
200 |
|
Memory |
8 GB |
|
Flash |
8 GB |
|
Height (rack units) |
1 RU |
|
Dimensions (D x H x W) |
4.45 x 20.04 x 36.2 cm |
|
Package Weight |
13.1 Kg |
Product Details
Figure 1 shows the front panel of ASA5525-K9.
Table 2 shows the Front Panel LEDsā descriptions.
| LED | Color | Description |
| BOOT | Flashing green | Power-up diagnostics are running, or system is booting. |
| Solid green | System has passed power-up diagnostics. | |
| Off | Power-up diagnostics are not operational. | |
| ACTIVE | Solid green | Failover pair is operating normally. |
| Off | Failover is not operational. | |
| PS | – | Power supply status |
| ALARM | Off | Normal operating system function. |
| Solid amber | Critical Alarm indicating one or more of the following:
āa major failure of a hardware or software component. āan over-temperature condition. āpower voltage is outside of the tolerance range. |
|
| VPN | Solid green | VPN tunnel is established. |
| Off | No VPN tunnel established. | |
| HD | Flashing green | Proportioned to read/write activity. |
| Solid amber | Hard-disk drive failure. | |
| Off | No hard-disk drive present. |

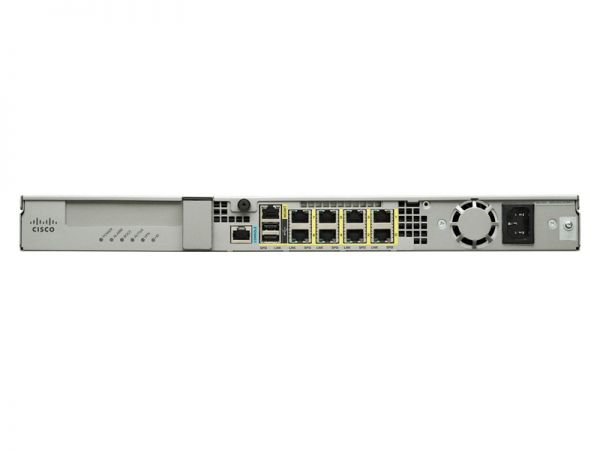

Figure 2 shows the back panel of ASA5525-K9.
Noteļ¼
| ā | LEDs | ā£ | EightĀ Gigabit Ethernet data interfaces |
| ā” | One Console port | ā¤ | AC Socket |
| ā¢ | Two USB Ports | ā„ | One Management 0/0 interface |
Ā· There are six LEDs on the back panel: POWER, ALARM, BOOT, ACTIVE, VPN, and HD.
Compare to Similar Items
Table 4 shows the comparison of ASA5512-K9, ASA5515-K9 and ASA5525-K9.
| Models | ASA5512-K9 | ASA5515-K9 | ASA5525-K9 |
| Stateful Inspection Throughput (maximum) | 1 Gbps | 1.2 Gbps | 2 Gbps |
| Next-generation firewall throughput (multiprotocol) | 200 Mbps | 350 Mbps | 650 Mbps |
| Memory | 4GB | 8GB | 8GB |
| Flash | 4GB | 8GB | 8GB |
| Height (rack units) | Desk Top | 1 RU | 1 RU |
ASA5525-K9 Specification
ASA5525-K9 Specifications |
|
| Feature | ASA5525-K9 |
| Stateful Inspection Throughput (Maximum) | 2 Gbps |
| Stateful Inspection Throughput (Multiprotocol) | 1 Gbps |
| IPS Throughput | 600 Mpbs |
| Next-Generation Throughput(Multiprotocol) | 650 Mbps |
| 3DES/AES VPN Throughput | 300 Mbps |
| Users/Nodes | Unlimited |
| IPsec VPN Peers | 750 |
| Cisco Cloud Web Security Users | 4,000 |
| Premium AnyConnect VPN Peers(Included/Maximum) | 2/750 |
| Concurrent Connections | 500,000 |
| New Connections/Second | 20,000 |
| Virtual Interfaces (VLANs) | 200 |
| Security Contexts (Included/Maximum)6 | 2; 20 |
| High Availability | Active/Active and Active/Standby |
| Expansion Slot | 1 interface card |
| User-Accessible Flash Slot | 0 |
| USB 2.0 Ports | 2 |
| Integrated I/O | 8 GE Copper |
| Expansion I/O | 6 GE Copper orĀ 6 GE SFP |
| Serial Ports | 1 RJ-45 console |
| Solid State Drive | 1 slot, 120 GB MLC SED |
| Memory | 8 GB |
| Minimum System Flash | 8 GB |
| System Bus | Multibus architecture |
| Temperature | 23 to 104Ā°F (-5 to 40Ā°C) |
| Relative Humidity | 90 percent noncondensing |
| Altitude | Designed and tested for 0 to 10,000 ft (3050m) |
| Shock | 50G, 2 m/sec |
| Vibration | 0.41 Grms2 (3 to 500 Hz) random input |
| Acoustic Noise | 64.2 dBa max |
| Temperature | -13 to 158ĀŗF (-25 to 70ĀŗC) |
| Relative Humidity | 10 to 90 percent noncondensing |
| Altitude | Designed and tested for 0Ā to 15,000 ft (4570m) |
| Shock | 70G, 4.22 m/sec |
| Vibration | 1.12 Grms2 (3 to 500 Hz) random input |
| AC Range Line Voltage | 100 to 240 VAC |
| AC Normal Line Voltage | 100 to 240 VAC |
| AC Current | 4.85A |
| AC Frequency | 50/60 Hz |
| Dual-Power Supplies | None |
| DC Domestic Line Voltage | -40.5 to 56 VDC (-48 VDC nominal) |
| DC International Line Voltage | -55 to -72 VDCĀ (-60 VDC nominal) |
| DC Current | 15A (maximum input) |
| Steady State | 75W |
| Maximum Peak | 108W |
| Maximum Heat Dissipation | 369 BTU/hr |
| Form Factor | 1 RU, 19-in. rack-mountable |
| Dimensions (HĀ xĀ W x D) | 1.75 x 17.5 x 14.25 In (4.45 x 20.04 x 36.2 cm) |
| Weight (with AC Power Supply) | 22.0 lb (10 kg) |
| Safety | IEC 60950-1: 2005, 2ndĀ EditionĀ EN 60950-1:2006+A11: 2009Ā UL 60950-1:2007, 2ndĀ Edition;Ā CSA C22.2 No. 60950-1-07, 2ndĀ Edition |
| Electromagnetic Compatibility (EMC) | CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008;
FCC: CFR 47,Ā Part 15 Subpart B Class A 2010, ANSI C63.4 2009;Ā ICES-003 ISSUE 4 FEBRUARY.2004;Ā VCCI: V-3/2011.04;Ā C-TICK:Ā AS/NZS CISPR 22,2009Ā KC: KN22 & KN24 |
| Industry Certifications | In process |
