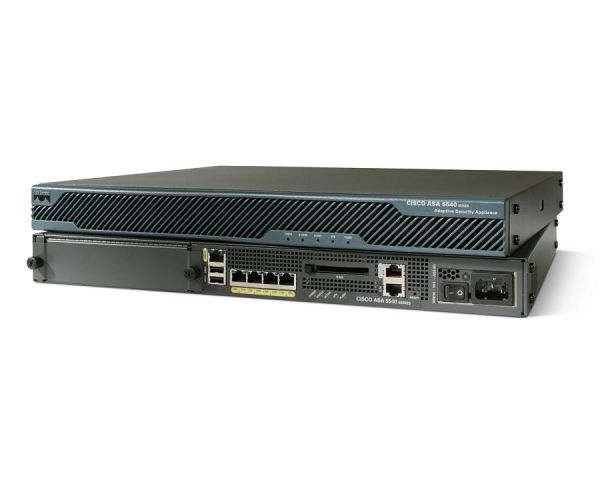

ASA5540-BUN-K9 Cisco ASA 5540 Firewall

Add to Wishlist

ASA 5540 Security Appliance with SW, HA, 4GE+1FE, 3DES/AES, Cisco ASA 5500 Series Firewall Edition Bundles

د.إ84,999.00

Add to Wishlist

ASA5540-BUN-K9 (USED) Overview

The Cisco ASA 5540 Adaptive Security Appliance ASA5540-BUN-K9Ā delivers high-performance, high-density security services with Active/Active high availability and Gigabit Ethernet connectivity for medium-sized and large enterprise and service-provider networks, in a reliable, modular appliance. With four Gigabit Ethernet interfaces and support for up to 100 VLANs, businesses can use the Cisco ASA 5540 to segment their network into numerous zones for improved security. The Cisco ASA 5540 Adaptive Security Appliance scales with businesses as their network security requirements grow, delivering exceptional investment protection and services scalability. The advanced network and application-layer security services and content security defenses provided by the Cisco ASA 5540 Adaptive Security Appliance can be extended by deploying the AIP SSM for high-performance intrusion prevention and worm mitigation.

Quick Spec

Table 1 shows the quick spec.

Product Code ASA5540-BUN-K9
Product Description Cisco ASA 5540 Firewall Edition includes 4 Gigabit Ethernet interfaces + 1 Fast Ethernet interface, 5000 IPsec VPN peers, 2 SSL VPN peers, 3DES/AES license
Users/Nodes Unlimited
Firewall Throughput Up to 650 Mbps
Maximum Firewall and IPS Throughput ā—Ā Ā Up to 500 Mbps with AIP-SSM-20

ā—Ā Ā Up to 650 Mbps with AIP-SSM-40
Memory 1 GB
Minimum System Flash 64 MB
Dimensions (HĀ xĀ W x D) 1.75 x 17.5 x 14.25 in. (4.45 x 20.04 x 36.20 cm)
Weight (with Power Supply) 20.0 lb (9.07 kg)
SKU: ASA5540-BUN-K9 (USED) Category: Tag:

ASA5540-BUN-K9 (USED) Specification

ASA5540-BUN-K9 Specification
Product Number ASA5540-BUN-K9
Product Description Cisco ASA 5540 Firewall Edition includes 4 Gigabit Ethernet interfaces + 1 Fast Ethernet interface, 5000 IPsec VPN peers, 2 SSL VPN peers, 3DES/AES license
Users/Nodes Unlimited
Firewall Throughput Up to 650 Mbps
Maximum Firewall and IPS Throughput ā—Ā Ā Up to 500 Mbps with AIP-SSM-20

ā—Ā Ā Up to 650 Mbps with AIP-SSM-40
3DES/AES VPN Throughput Up to 325 Mbps
IPsec VPN Peers 5000
SSL VPN Peers Included/ Maximum) 2/2500
Concurrent Connections 400,000
New Connections/ Second 25,000
Integrated Network Ports 4 Gigabit Ethernet, 1Ā Fast Ethernet
Virtual Interfaces (VLANs) 200
Security Contexts (Included/ Maximum) 2/50
High Availability Active/Active and Active/ Standby
Expansion Slot 1, SSM
User-Accessible Flash Slot 1
USB 2.0 Ports 2
Serial Ports 2 RJ-45, console and auxiliary
Rack-Mountable Yes
Wall-Mountable Not Available
Security Lock Slot (for Physical Security) Not Available
Memory 1 GB
Minimum System Flash 64 MB
System Bus Multibus architecture
Form Factor 1 RU, 19-in. rack-mountable
Dimensions (HĀ xĀ W x D) 1.75 x 17.5 x 14.25 in. (4.45 x 20.04 x 36.20 cm)
Weight (with Power Supply) 20.0 lb (9.07 kg)
Safety UL 60950, CSA C22.2 No. 60950, EN 60950 IEC 60950, AS/NZS60950
Electromagnetic Compatibility (EMC) CE marking, FCC Part 15 Class A, AS/NZS CISPR22 Class A, VCCI Class A, EN55022 Class A, CISPR22 Class A, EN61000-3-2, EN61000-3-3
Industry Certifications Common Criteria EAL4 US DoD Application-Level Firewall for Medium-Robustness Environments, Common Criteria EAL2 for IPS on AIP SSM-10 and -20, FIPS 140-2 Level 2, and NEBS Level 3. In process: Common Criteria EAL4+ US DoD Application-Level Firewall for Medium-Robustness Environments, and Common Criteria EAL4 for IPsec/SSL VPN
