Cisco ASA 5500 Series

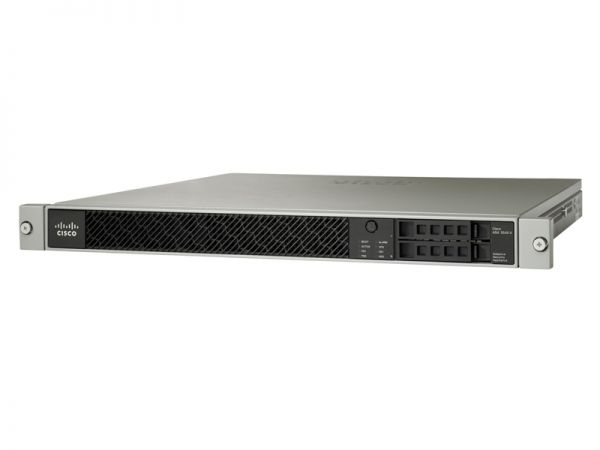

ASA5545-K7 Cisco ASA 5500 Series Firewall Edition Bundle
Cisco ASA 5500 Edition Bundle ASA5545-K7 ASA 5545-X with SW, 8GE Data, 1GE Mgmt, AC, NPE
AED89,999.00
ASA5545-K7 Overview
Cisco ASA5545-K7Ā includes firewall services, 5000 IPsec VPN peers, 2 SSL VPN peers, 8Ā copper Gigabit Ethernet data ports, 1 copper Gigabit Ethernet management port, 1 AC power supply, Active/Active High Availability, 2 security contexts, no payload encryption.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | ASA5545-K7 |
| Interfaces | 8 copper GE ports,
1 copper GE management port, 1 expansion slot |
| Stateful inspection throughput (maximum) | 3 Gbps |
| 3DES/AES VPN throughput | 400 Mbps |
| IPsec VPN peers | 2,500 |
| Virtual interfaces (VLANs) | 300 |
| Memory | 12 GB |
| Flash | 8 GB |
| Height (rack units) | 1 RU |
| Dimensions (D x H x W) | 4.24 x 42.9 x 48.4 cm |
Product Details
Table 2 shows the Front Panel LEDsā descriptions.
| LED | Color | Description |
| BOOT | Flashing green | Power-up diagnostics are running, or system is booting. |
| Solid green | System has passed power-up diagnostics. | |
| Off | Power-up diagnostics are not operational. | |
| ACTIVE | Solid green | Failover pair is operating normally. |
| Off | Failover is not operational. | |
| PS | – | Power supply status |
| ALARM | Off | Normal operating system function. |
| Solid amber | Critical Alarm indicating one or more of the following:
āa major failure of a hardware or software component. āan over-temperature condition. āpower voltage is outside of the tolerance range. |
|
| VPN | Solid green | VPN tunnel is established. |
| Off | No VPN tunnel established. | |
| HD0 | Flashing green | Proportioned to read/write activity. |
| Solid amber | Hard-disk drive failure. | |
| Off | No hard-disk drive present. | |
| HD1 | Flashing green | Proportioned to read/write activity. |
| Solid amber | Hard-disk drive failure. | |
| Off | No hard-disk drive present. |
Noteļ¼
| ā | LEDs | ā¤ | AC Socket |
| ā” | One Console port | ā„ | one Management 0/0 interface |
| ā¢ | Two USB Ports | ā¦ | I/O slot |
| ā£ | Eight Gigabit Ethernet data interfaces |
Ā· There are seven LEDs on the back panel: POWER, ALARM, BOOT, ACTIVE, VPN, HD0 and HD1.
ASA5545-K7 Specification
ASA5545-K7 Specification |
|
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 16.9 in |
| Depth | 19.1 in |
| Height | 1.7 in |
| Weight | 16.75 lbs |
| Processor / Memory / Storage | |
| RAM | 12 GB |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Performance | Firewall throughput: 3 Gbps Ā¦ VPN throughput (3DES/AES): 400 Mbps Ā¦ Connection rate: 30000 connections per second Ā¦ Firewall + intrusion prevention throughput: 900 Mbps |
| Capacity | IPSec VPN peers: 2500 Ā¦ SSL VPN peers: 2 Ā¦ Concurrent sessions: 750000 Ā¦ Virtual interfaces (VLANs): 300 Ā¦ Security contexts: 2 |
| Status Indicators | Power, HDD activity, active, alarm |
| Features | Firewall protection, VPN support, VLAN support, High Availability |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 8 x 1000Base-T – RJ-45 Ā¦ 1 x 1000Base-T (management) – RJ-45 Ā¦ 1 x management – RJ-45 Ā¦ 2 x USB 2.0 – Type A |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | VCCI, C-Tick, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-07, ANSI C63.4-2009 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 400 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 23 Ā°F |
| Max Operating Temperature | 104 Ā°F |
