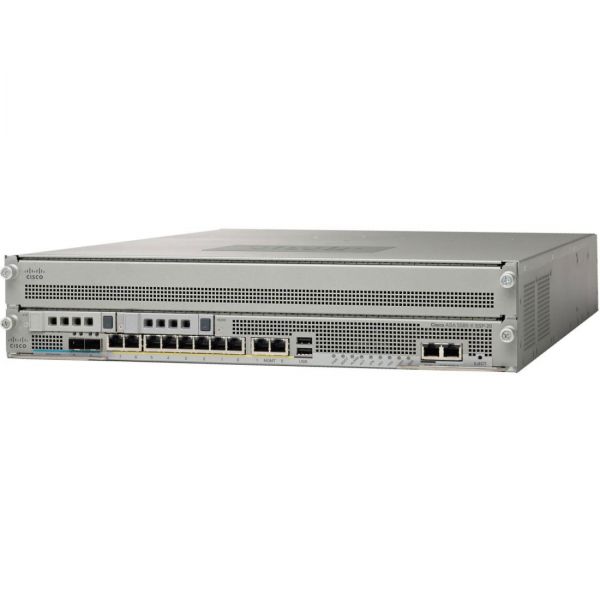

ASA5585-S10P10SK9 Cisco ASA 5585 Series Firewall

Add to Wishlist
Cisco ASA 5585 Firewall ASA5585-S10P10SK9 ASA 5585-X w/SSP10,IPS SSP-10,16GE,5K VPN PR,1 AC,3DES/AES

AED599,999.00

Add to Wishlist

ASA5585-S10P10SK9 Overview

Cisco ASA 5585-X Adaptive Security Appliances are tailored to meet the high performance needs of mission-critical data centers and provide peace of mind with Cisco guaranteed coverage. Supporting the highest VPN session counts and twice as many connections per second as competitive firewalls in its class, Cisco ASA 5585-X appliances meet the growing needs of today’s most dynamic organizations. The appliances combine the world’s most proven firewall with the industry’s most comprehensive, effective IPS, offering the most effective security solution in the industry to significantly decrease business risk and address regulatory compliance – all in a compact 2-rack-unit footprint.

Quick Specs

Table 1 shows the Quick Specs.

Product Name ASA5585-S10P10SK9
Product Series 5500
Product Model 5585-X
Product Type Network Security/Firewall Appliance
Technical Information
Encryption Standard 3DES

DES
Interfaces/Ports
Total Number of Ports 16
USB Yes
I/O Expansions
Number of Total Expansion Slots 6
Expansion Slot Type SFP+
Number of SFP+ Slots 4
Network & Communication
Ethernet Technology Gigabit Ethernet
Network Standard 10/100/1000Base-T
Management & Protocols
Manageable Yes
Wireless Specifications
Wireless LAN No
Physical Characteristics
Compatible Rack Unit 2U
Form Factor Rack-mountable
Height 3.5″
Width 19″
Depth 26.5″
Warranty
Limited Warranty 90 Day
Other Information
Product Family 5500
DSL Port No
Management Port Yes
Flash Memory 4 GB
Input Voltage 110 V AC

220 V AC
Standard Memory 12 GB
Virtualization 65000 x New Sessions/second

1000000 x Concurrent Session

5000 x IPSec VPN Peer

100 x Security Context

1024 x 802.1Q VLAN Support
SKU: ASA5585-S10P10SK9 Category: Tags: ,

ASA5585-S10P10SK9 Specification

ASA5585-S10P10SK9 Specification
General
Device Type Security appliance
Height (Rack Units) 2U
Installed Modules Qty (Max) 2 (2)
Width 19 in
Depth 26.5 in
Height 3.5 in
Processor / Memory / Storage
Processors Installed 2 x
RAM 12 GB
Flash Memory 4 GB
Networking
Form Factor Rack-mountable
Ports Qty 16
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance Firewall throughput: 4 Gbps ¦ VPN throughput (3DES/AES): 1 Gbps ¦ Connection rate: 50000 connections per second ¦ IPS throughput: 2 Gbps
Capacity Concurrent connections: 750000 ¦ IPSec VPN peers: 5000 ¦ Virtual interfaces (VLANs): 250 ¦ SSL VPN peers: 5000 ¦ Nodes: unlimited
Features Firewall protection, VPN support, load balancing, VLAN support
Encryption Algorithm Triple DES, AES
Expansion / Connectivity
Expansion Slots 2 (total) / 0 (free) x expansion slot ¦ 4 (total) / 4 (free) x
Interfaces 4 x 1000Base-T (management) – RJ-45 ¦ 4 x USB 2.0 – Type A ¦ 2 x management – RJ-45 ¦ 2 x management ¦ 16 x 1000Base-T – RJ-45
Miscellaneous
Rack Mounting Kit Included
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943
Power
Power Device Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 2
Voltage Required AC 120/230 V (50/60 Hz)
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
