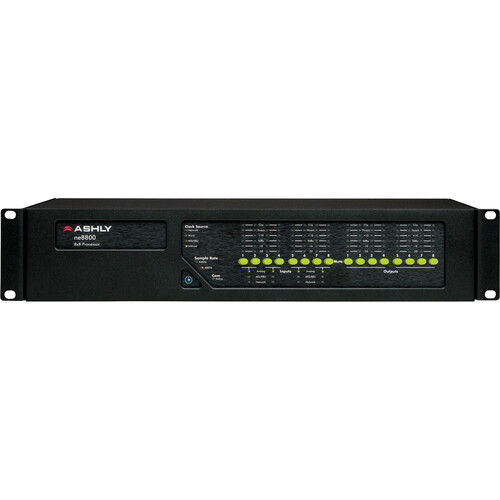

Ashly ne8800MMSC Network Enabled Digital Signal Processor with 8-Channel Mic Pre Ins + 8-Channel AES3 Outs + CobraNet

Add to Wishlist
Key Features
  • 8 Analog Inputs/8 Analog Outputs
  • 10/100 Ethernet and RS-232 Interfaces
  • 24-Bit A/D-D/A Audio Resolution
  • Extensive DSP via Protea Software Suite
  • Easy and Intuitive User Interface
  • Wordclock I/O
  • Option Bays for Expanded Functionality
  • Windows

18,799.00 د.إ

Add to Wishlist

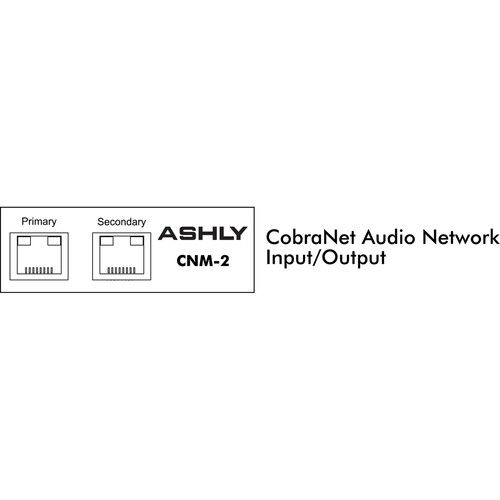

Control and protect your sound system with the Ashly ne8800MMSC, a network-enabled DSP processor that offers easy setup and control using standard 10/100 Ethernet protocol and Protea ne software. The ne8800MMSC features four option bays for expanded functionality. This model includes the 8-channel mic pre input card, 8-channel AES3 output card, and CobraNet card.

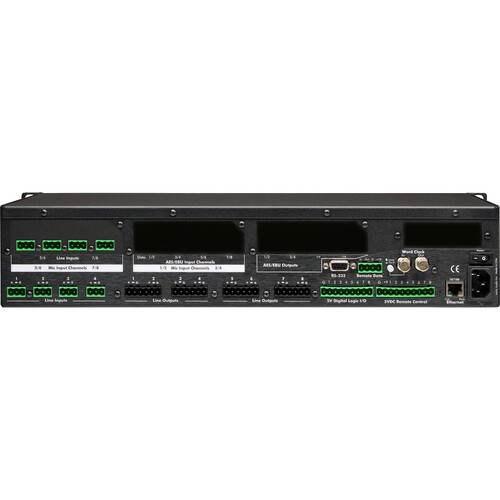

The rear panel utilizes Euroblock connectors for easy and secure wiring. Additionally, the 12V Digital Logic I/O uses a 9-pin Euroblock connector that can be assigned to trigger a preset recall or push-to-talk mic function. A 10-pin Euroblock connector is for the 5 VDC Remote Level Control, which allows for up to eight user-defined remote DC level controls.

At a Glance
  • CobraNet, Dante, AES3, Mic Input options
  • 10/100 Ethernet and RS-232 computer interface standard
  • Extensive DSP available
  • Easy and intuitive user interface
  • 24-bit A/D–D/A audio resolution
  • 32-bit SHARC DSPs
  • Sample rates of 48 and 96 kHz
  • Hot-plug software control
  • Automatic DHCP network IP configuration
  • Butterworth, Bessel, Linkwitz-Riley, and Notched-Linkwitz-Riley filters
  • FIR filter capability
  • Advanced automatic feedback suppression
  • Wordclock input and output
  • Euroblock connectors for audio, preset recall, DC remote level control and data in/out
  • Remote controls for level, logic I/O and programmable functions
  • Third-party control friendly, input and output metering, multi-level security
Protea DSP Functions and Processors
  • Input source selection
  • Brick wall limiter
  • Compressor
  • Autoleveler controls
  • Ambient noise compensation (output only)
  • Ducking (high/low priority, trigger, filibuster, ducked program)
  • Gate
  • Advanced gate controls
  • Gain
  • EQ:
    • 31-band
    • Parametric 2, 4, 6, or 10 band
    • High/Low Shelf 6/12 dB per octave
    • All-Pass
    • Variable Q HP/LP
    • Notch/Band-Pass
  • Feedback Suppressor (inputs only and 48 kHz sampling rate)
  • Crossover: 2-, 3-, 4-way crossover and High-Pass/Low-Pass filters
  • Delay:
    • Input time, distance, and temperature at 48 kHz sampling rate
    • Input time, distance, and temperature at 96 kHz sampling rate
  • Audio metering tool
  • Signal Generator Tool (pink noise, white noise, sine wave)
  • Matrix mixer
  • Processors
Programming
All programming is accomplished using standard 10/100 Ethernet or RS-232 protocol and Protea ne software on a PC platform. Hot-plug software control allows you to plug any function into any channel block, even when running live audio with no recompiling necessary. Automatic DHCP network IP configuration reduces network set up time. Multi-level software security with password access assures you a tamperproof audio system.
SKU: NE8800MMSC Category: Tag:
Specification Details
Frequency Response 20 Hz to 20 kHz
±0.1 dB, A>D
±0.25 dB, D>A
±0.25 dB, A>A
Dynamic Range 20 Hz to 20 kHz (Unweighted)
>115 dB, A>D
>114 dB, D>A
>114 dB, A>A
THD + N 1 kHz, +20 dBu Analog (-1.0 dBFS Digital)
>0.001%, A>D
>0.002%, D>A
>0.002%, A>A
>0.00001%, D>D
Latency 48 kHz
1.42 ms, A>D
0.90 ms, D>A
2.21 ms, A>A
0.10 ms, D>D
96 kHz
0.71 ms, A>D
0.45 ms, D>A
1.11 ms, A>A
0.05 ms, D>D
Wordclock Input/Output Type: 75 Ohms BNC
Lock Range: 48 kHz ±4%, 96 kHz ±4%
Input Impedance: Selectable 75 Ohms or High Impedance
Input Voltage Range: 1.0 to 7.0 Vpp
Output Impedance: 75 Ohms
Output Level: 5.0 Vpp Nominal, Unterminated
Master Clock Sources Audio Network, Wordclock, AES3, Internal Crystal Clock
Master Clock Modes Prioritized Auto Switching, Manual
Inputs Analog Line
Input Type: Active Balanced Euroblock
Input Impedance: 20 Kilohms
Maximum Input Level: +20 dB
AES3 Digital
Input Type: Transformer Balanced Female XLR
Input Impedance: 110 Ohms
Max Input Level: 7.0 Vpp
Outputs Analog
Output Type: Servo-Balanced Euroblock
Output Impedance: 20 Ohms
Maximum Output Level: +20 dBu
AES3
Output Type: Transformer Balanced Male XLR
Output Impedance: 110 Ohms
Maximum Output Level: 5.0 Vpp
Other Connectors 10/100 Ethernet Port, RS-232 Port, Remote Level Control, Logic I/O, Data In/Out Ports, On/Off Switch
Environmental 40 to 120°F / 4 to 49°C Non-Condensing
Power Requirements 90 to 240 VAC, 50/60 Hz, 70 W Maximum
System Requirements Computer Running Under Windows Vista, 7, 8, 10
Dimensions (WxHxD) 19 x 8.5 x 3.5″ / 483 x 216 x 89 mm
Weight 10.5 lb / 4.8 kg
