Ashly Protea ne24.24MT Matrix Digital Signal Processor with 4×4 I/O and GPO Logic Card

Add to Wishlist
Key Features
  • Standard I/O: 4 Inputs & 4 Outputs
  • 10/100 Ethernet and RS-232 Interfaces
  • 24-Bit A/D-D/A Audio Resolution
  • Extensive DSP via Protea Software Suite
  • Easy and Intuitive User Interface
  • Option Bays for Expanded Functionality
  • Windows Compatible

9,299.00 د.إ

Add to Wishlist

Ashly NE24.24MT w/Logic Overview

Control and protect your installed sound system with the Ashly Protea NE24.24MT, a network-enabled DSP speaker processor that offers easy setup and control using standard 10/100 Ethernet protocol and Protea ne software. The ne24.24m has four analog inputs and four analog outputs as standard. Use the four option bays to provide additional I/O and functionality. This model includes the GPO Logic card, which is used to drive preset controlled relays or another device’s logic control inputs.

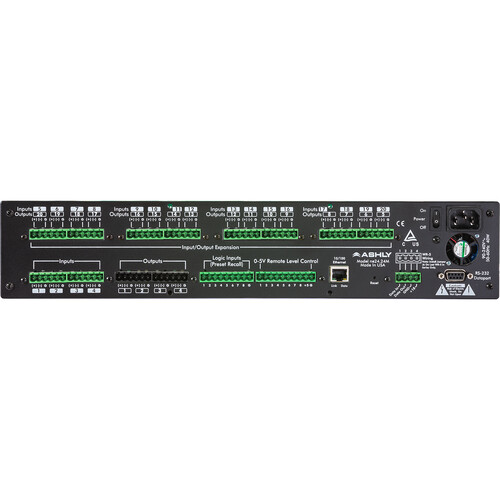

The rear panel utilizes Euroblock connectors for easy and secure wiring. Additionally, the 12V Digital Logic I/O uses a 9-pin Euroblock connector that can be assigned to trigger a preset recall or push-to-talk mic function. A 10-pin Euroblock connector is for the 5 VDC Remote Level Control, which allows for up to eight user-defined remote DC level controls.

At a Glance
  • 10/100 Ethernet & RS-232 computer interface standard
  • Extensive DSP available
  • Easy and intuitive user interface
  • Mic/line inputs
  • 24-bit A/D–D/A audio resolution
  • Up to 24 channels of audio processing
  • 4×4 base unit configuration
  • Expand inputs or outputs 4 channels per module
  • Modules easily field installable
  • Euroblock connectors for audio, preset recall, DC remote level control, and data in/out
  • 31 preset locations
  • Remote controls for level, preset recall, and programmable functions
  • Third-party control-friendly
  • Input and output metering viewable in dBu
  • Multilevel security
Protea DSP Functions and Processors
  • Input source selection
  • Brick wall limiter
  • Compressor
  • Autoleveler controls
  • Ambient noise compensation (output only)
  • Ducking (high/low priority, trigger, filibuster, ducked program)
  • Gate
    • Advanced gate controls
  • Gain
  • EQ:
    • 15-band parametric
    • High/Low Shelf 6/12 dB per octave
    • All-Pass
    • Variable Q HP/LP
    • Notch/Band-Pass
  • Crossover: 2-, 3-, 4-way crossover and High-Pass/Low-Pass filters
  • Delay:
    • Input time, distance, and temperature at 48 kHz sampling rate
    • Input time, distance, and temperature at 96 kHz sampling rate
  • Audio metering tool
  • Signal Generator Tool (pink noise, white noise, sine wave)
  • Matrix mixer
  • Processors
SKU: NE24.24MT (4X4) LOGIC Category: Tag:
General
Compatibility
Not Specified by Manufacturer
Frequency Response
20 Hz to 20 kHz (±0.25 dB)
THD
<0.01% at 1 kHz, +20 dBu
Dynamic Range
>110 dB (20 Hz to 20 kHz) Unweighted
Signal to Noise Ratio
<-90 dBu Unweighted
Inputs / Outputs
Audio I/O
2x Block 6-Pin Line Input
2x Block 6-Pin Line Output
Inputs/Outputs
Input: Active Balanced, 18 Kilohms
Input Gain Range: -50 to +12 dB, Selectable Polarity
Output: Active Servo Balanced, 112 Ohms
Input/Output: Level +20 dBu (Max)
Output Gain Range: -50 to +12 dB, Selectable Polarity
Input and Output Connectors
Logic Inputs (Preset Recall): 9-Pin Block
0-5V Remote Level Control: 10-Pin Block
Controller Interface: 4-Pin Block
Network
10/100 Ethernet Port
RS-232 Port
Wireless
Mobile App Compatible
No
Power
Power Source
AC Input (Included)
AC Input Power
90 to 240 VAC, 50 / 60 Hz
Power Consumption
40 W
Environmental
Environmental Resistance
No
Operating Temperature
40 to 120°F / 4 to 48°C
Physical
Color
Black
Dimensions
19 x 8.5 x 3.5″ / 48.3 x 21.6 x 8.9 cm
Weight
12 lb / 5.4 kg
