ASR-903 Cisco ASR 903 Chassis
| Model: | ASR-903 Cisco ASR 903 Chassis |
| Detail: |
Cisco ASR 903 Chassis ASR-903 ASR 903 Series Router Chassis
|
| Part Number | ASR-903 |
| Rack mounts | ETSI rack mount kit
19 in. rack mount kit 23 in. rack mount kit |
| Power supplies | 2 power supply slots |
| Interface modules | 6 interface module slots |
| Route switch processors | 2 RSP slots |
| Fan tray | 1 fan tray with fan redundancy
4 dry contact input alarms on the fan tray |
| Physical specifications | Height: 5.22 in. (132.6 mm) – 3RU
Width: 17.44 in. (443 mm) Depth: 9.22 in. (234.2 mm) Weight: –Ā 34.17 lb (15.5 kg) with two RSPs, two DC power supplies, and loaded with a typical combination of interface moduleĀ cards – 11.2 lb (5.1 kg) for an empty chassis –Ā 38 lb shipment weight |
| Air flow | Side-to-side airflow; inlet on the right side, outlet on the left side when looking from the front |
AED22,199.00
Cisco ASR-903 is ASR 900 Series Router Chassis. Cisco ASR 900 Series Aggregation Services Routers are full-featured, modular aggregation platforms. Theyāre designed for the cost-effective delivery of converged mobile, residential, and business services. You get redundancy, a shallow depth, low power consumption, and high service scale in routers packed with useful features and optimized for small aggregation and remote point-of-presence (POP) applications.

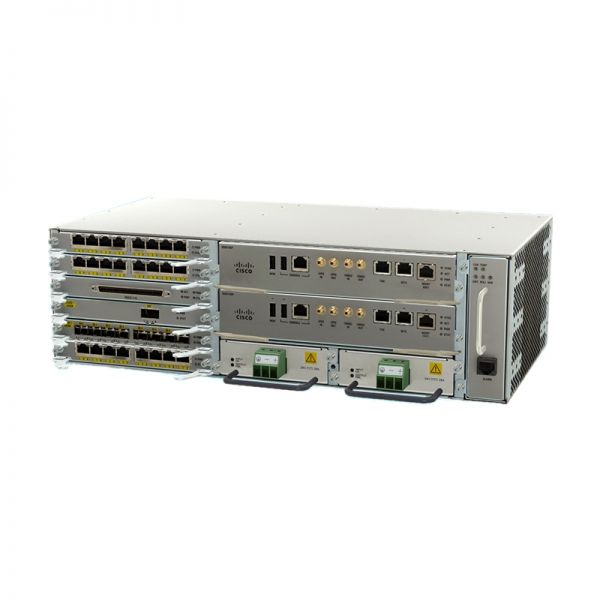

Figure 1 shows the appearance of ASR-903. Those modules in the chassis must be purchased separately.
Figure 2 shows the front panel of ASR-903. Those modules in the chassis must be purchased separately.
Note:
| ā | 2 RSP unit Slots | ā¢ | Redundant power units (two DC power units are shown) |
| ā” | 6 Interface modules Slots | ā£ | Fan tray |
Modules and Accessories
Table 2 shows the recommended models.
| Models | Description |
| A903-RCKMNT-19IN | CiscoĀ A903-RCKMNT-19INĀ ASR 903 EIA 19in Rack Mount Kit, Spare |
| A903-CABLE-GUIDE | CiscoĀ A903-CABLE-GUIDEĀ ASR 903 Cable Guide, Spare |
| A900-CONS-KIT-U | CiscoĀ A900-CONS-KIT-UĀ ASR 900 USB Console Cabling Kit, Spare |
| A903-RSP1A-55 | Cisco ASR 903 Route Switch ProcessorĀ A903-RSP1A-55Ā ASR 903 Route Switch Processor 1, Base Scale |
| A900-IMA16D | Cisco ASR 903 Interface ModulesĀ A900-IMA16DĀ ASR 900 16 port T1/E1 Interface Module, Requires patch panel |
| A900-IMA4OS | Cisco ASR 903 Interface ModulesĀ A900-IMA4OS ASR 900 4 port OC3/STM1 or 1 port OC12/STM4 Interface Module |
| A900-IMA8T | Cisco ASR 903 Interface ModulesĀ A900-IMA8T ASR 900 8 port 10/100/1000 Ethernet Interface Module |
| A900-IMA8S | Cisco ASR 903 Interface ModulesĀ A900-IMA8S ASR 900 8 port SFP Gigabit Ethernet Interface Module |
| A900-IMA1X | Cisco ASR 903 Interface ModulesĀ A900-IMA1X ASR 900 1 port 10GE XFP Interface Module |
| A903-FAN | Cisco ASR 903 FANĀ A903-FANĀ ASR 903 FAN Tray |
| A900-PWR550-A | Cisco ASR 900 Power SupplyĀ A900-PWR550-A ASR 900 550W AC Power Supply |
| A900-PWR550-D | Cisco ASR 900 Power SupplyĀ A900-PWR550-D ASR 900 550W DC Power Supply |
| SLASR903-I-A= | Cisco ASR 903 LicensesĀ SLASR903-I-A ASR 903 Metro IP to Metro Aggregation Paper PAK |
| SLASR903-A= | Cisco ASR 903 LicensesĀ SLASR903-A ASR 903 Metro Aggregation Services |
Compare to Similar Items
Table 3 shows the comparison.
| Part Number | ASR-903 | ASR-9006-AC-V2 |
| Description | Cisco ASR 900 Series ASR 903 Router Chassis | Cisco ASR 9006 System ASR-9006-AC-V2 ASR 9006 AC Chassis with PEM Version 2 |
| Slots | 6 Line Cards
2 RSPs 1 fan trays 2 power supplies |
4 Line Cards
2 RSPs 2 fan trays 2 (1+1 RSP redundancy) |
| Software | Ā IOS XE | Ā IOS XR |
Cisco ASR 903 Router Specifications |
|
| Physical specifications | Height: 5.22 in. (132.6 mm) – 3RU
Width: 17.44 in. (443 mm) Depth: 9.22 in. (234.2 mm) Weight: āĀ Ā 34.17 lb (15.5 kg) with two RSPs, two DC power supplies, and loaded with a typical combination of interface moduleĀ cards ā 11.2 lb (5.1 kg) for an empty chassis āĀ Ā 38 lb shipment weight |
| Rack mounts | ETSI rack mount kit
19 in. rack mount kit 23 in. rack mount kit |
| Power supplies | 2 power supply slots |
| Interface modules | 6 interface module slots |
| Route switch processors | 2 RSP slots |
| Fan tray | 1 fan tray with fan redundancy
4 dry contact input alarms on the fan tray |
| Air flow | Side-to-side airflow; inlet on the right side, outlet on the left side when looking from the front |
| Power supplies | Up to 2 power supplies (AC or DC)
Modules operate in load-share mode System can operate on a single power supply and supports mixing of one AC and one DC power supplies in a single chassis. |
| Chassis MTBF at 40ĀŗC operating temperature | 900,000 hours |
| Fan Tray MTBF at 40ĀŗC operating temperature | 600,000 hours |
| Power consumption | Maximum input power 1350W (including loss). This is equivalent to 4600 BTU per hr. |
| AC input voltage and frequency | Voltage range: 85 to 264 VAC, nominal 115 to 230 VAC
Frequency Range: 47 to 63 Hz, nominal 50 to 60 Hz |
| AC Power Supply MTBF at 40ĀŗC operating temperature | 300,000 hours |
| DC input voltage | For 550W DC power supply, voltage range: 19.2V to 72V DC, nominal +24V DC, -48V/ā60V DC.
For 1200W DC power supply, voltage range: ā40.8V to ā72V DC, nominal ā48V/ā60V DC |
| DC Power Supply MTBF at 40ĀŗC operating temperature | 300,000 hours |
| Power Supply shipment packaging size (L x W x H) | 15.44 in. x 9.44 in. x 4.31 in. |
| Power Supply shipment weight | 3.6 lbs. |
| Operating environment and altitude | ā40 to 65ĀŗC operating temperature (DC operation, with both the 550W and the 1200W power supplies)
ā40 to 65ĀŗC operating temperature (AC operation, with the 1200W power supply) ā5 to 55ĀŗC operating temperature (AC operation, with 550W AC power supply) 0 to 40ĀŗC operating temperature (AC operation, with 550W AC power supply) ā60 to 1800m operating altitude (for full operating temperature range) Up to 4000m operating altitude (at up to 40ĀŗC temperature) |
