ASR1001X-10G-K9 – Cisco ASR 1000 Series Router
| Model: | ASR1001X-10G-K9 – Cisco ASR 1000 Series Router |
| Detail: |
ASR1001-X Router, 10G Base Bundle, K9, AES, Built-in 6x1G
|
| Product Code | Ā ASR1001X-10G-K9 |
| Rack Height | Ā 1RU |
| System Bandwidth | Ā 2.5G (default) / 5G, 10G, 20G (upgrade) |
| Router Processor (RP) | Ā Quad-core 2.13Ghz processor |
| Build-in Gigabit Ethernet port | Ā 6 x SFP ports, 2 x SFP+ ports |
| Redundancy | Ā Software (license purchase separately) |
| SIP and Ethernet line card | Ā Integrated in chassis; not upgradable |
| Embedded hardware-based encryption | Ā up to 8-Gbps crypto supportĀ throughput |
| Rack-mounting | Ā 19-inch |
| DRAM Memory | Ā 4 GB |
| Flash Memory | Ā 8 GB |
| Shared port adapters | Ā 1Ā SPA slot |
| External USB flash memory | Ā 1-GB USB flash-memory support |
AED372,299.00
The CiscoĀ ASR1001X-10G-K9Ā Router is a 1-rack-unit (1RU) platform targeted towards the low to medium Enterprise and Managed Service Provider use cases. Its compact form factor has a built-in Route Processor, Embedded Services Processor (ESP) and Shared Port Adapter (SIP) Interface processor.

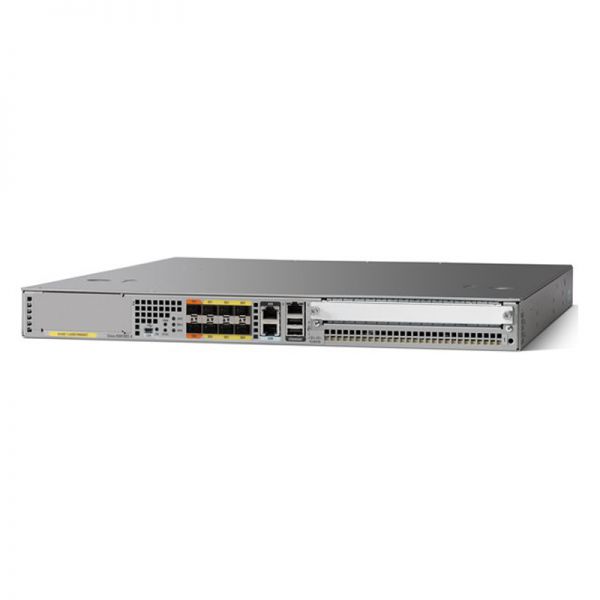

Figure 1 shows the appearance ofĀ ASR1001X-10G-K9.
Ā
Figure 2 shows the front panel ofĀ ASR1001X-10G-K9.
Ā
Note:
| ā | NIM slots | ā¦ | USB port 1 |
| ā” | CONāOne mini eUSB por | ā§ | USB port 0 |
| ā¢ | STATāStatus LED | āØ | Shared port adapter slot |
| ā£ | CRIT LEDāCritical alarm indicator
MAJ LEDāMajor alarm indicator MIN LEDāMinor alarm indicator |
ā© | MGMTāOne RJ-45 10/100/1000 management Ethernet port. |
| ā¤ | 6 x SFP ports, 2 x SFP+ ports | āŖ | AUXāOne RJ-45/RS-232 compatible auxiliary port |
| ā„ | CONāOne RJ-45/RS-232 compatible console port | ā« | PWRāPower LED |
*Six built-in 1 GE SFP-only interfaces (do not support SFP+), and two built-in 10 GE SFP+Ā interfaces (support only 10-GE rate)
FigureĀ 3Ā shows theĀ backĀ panel ofĀ ASR1001X-10G-K9.
Note:
| ā | Two power supplies, either two AC power supplies or two DC power supplies are accessed from the rear of the router and are hot-swappable. |
| ā” | Four internal fans draw cooling air into the chassis and across internal components to maintain an acceptable operating temperature. |
The Configuration
The ASR1001X-10G-K9Ā should be configured with some accessories for normal operation.
TableĀ 2Ā shows the recommended configuration.
| Model | Description |
| Card | |
| SPA-5X1GE-V2 | Cisco 5-Port Gigabit Ethernet Shared Port Adapter |
| License | |
| FLASR1-CUBEE-100R | Unified Border Element Ent, 100 Sessions, Redundancy |
| FLASR1-CUBEE-100P | Unified Border Element – Enterprise Edition 100 Sessions |
| FLASR1-CUBEE-4KP | Unified Border Element – Enterprise Edition 4000 Sessions |
| FLASR1-CUBEE-4K-R | Unified Border Element Ent, 4000 Sessions, Redundancy |
Compare to Similar Items
TableĀ 3Ā shows the comparisonĀ between ASR1001X-10G-K9 and ASR1001.
| Models | ASR1001X-10G-K9 | ASR1001 |
| Scalability | 2.5 to 20 Gbps | 2.5 to 5 Gbps |
| Rack Height | 1U | 1U |
| SFP Ports | 6 x 1 G | 4 x 1G |
| SPA slots | 1 | 1 |
| SIP Slots | Integrated | Integrated |
| ESP Slots | Integrated | Integrated |
| RP Slots | Integrated | Integrated |
ASR1001X-10G-K9 Specifications |
|
| Physical specifications
Note:Ā Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 1.71 in. (43.43 mm)
Width: 17.3 in. (439.42 mm) Depth: 18.17 in. (461.5 mm) Weight: āĀ Ā 25 lb (11.35 kg) fully loaded Note:Ā The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated. |
| Default memory | 8-GB DRAM shared across route processor, ESP, and SIP |
| Number of SIPs or Ethernet line cards supported | Integrated inĀ chassis |
| Shared port adapters | 1 single-height SPA slot |
| Ethernet port adapters | N/A |
| Cisco ASR 1000 Series ESP | Integrated inĀ chassis |
| Route processor | Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet ports | Yes: 6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports |
| Built-in 10 Gigabit Ethernet port | Yes: Two 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports
Note:Built-in 10-GB ports cannot be reduced to 1-GB speed. |
| Network interface module | Yes |
| Cisco ASR 1000 Series | Cisco ASR 1001-X |
| ESP support | Cisco ASR 1000 Series 2.5-Gbps ESP (default)
Upgradable through a software-activated feature license to 5, 10, or 20Ā Gbps |
| ESP bandwidth | 2.5 to 20 Gbps |
| ESP memory | Share the same control memory on route processor |
| SIPs and Ethernet line cards | Integrated in chassis; not upgradable |
| Embedded hardware-based encryption | Yes: Up to 8-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software ReleaseĀ 3.12.0 |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Redundant power supply | Yes: Dual power supplies by default; option of either AC or DC power supply
Note:Ā A mix of one AC and one DC power supply is not supported. |
| Power input | Worldwide ranging AC input range (85 to 264 VAC)
Worldwide ranging DC (-40 to -72V; 48V nominal) |
| Power consumption | āĀ Ā Maximum (DC): 242W
āĀ Ā Maximum (AC): 250W āĀ Ā Maximum (out): 250W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | 32 to 104Ā°F (0 to 40Ā°C) |
| Operating temperature (short-term) | 32 to 122Ā°F (0 to 50Ā°C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 to 90% |
| Storage temperature | -40 to 150Ā°F
(-40 to 70Ā°C) |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating altitude | -500 to 10,000 feet (152 to 3048 meters) |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 (in progress) |
| EMC standards | āĀ Ā FCC 47 CFR Part 15 Class A
āĀ Ā VCCI Class A āĀ Ā AS/NSZ Class A āĀ Ā ICES-003 Class A āĀ Ā EN55022/CISPR 22 Information Technology Equipment (Emissions) āĀ Ā EN55024/CISPR 24 Information Technology Equipment (Immunity) āĀ Ā EN300 386 Telecommunications Network Equipment āĀ Ā (EMC) āĀ Ā EN50082-1/EN61000-6-1 Generic Immunity Standard |
| Safety Standard | UL60950-1
CSA C22.2 No.Ā 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
