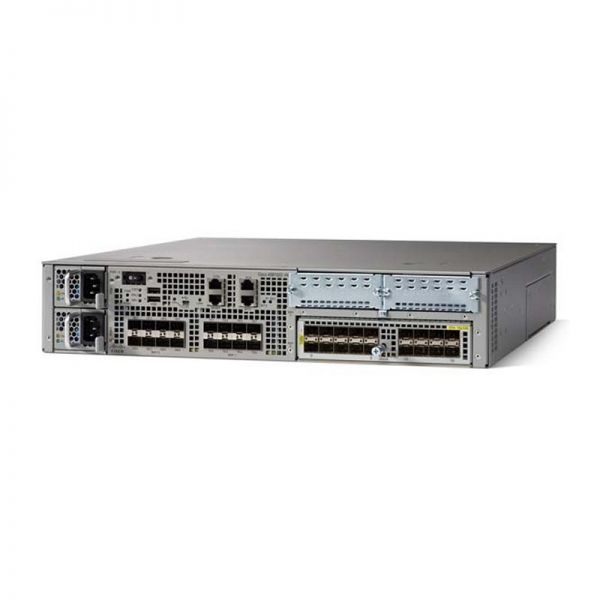

ASR1002-HX= – Cisco ASR 1000 Routers
| Model: | ASR1002-HX= – Cisco ASR 1000 Routers |
| Detail: |
Cisco ASR1002-HX System,4x10GE+4x1GE, 2xP/S, optional crypto
|
| Default memory | 16-GB DRAM shared across route processor, ESP, and MIP |
| Number of SIPs or Ethernet line cards supported | Integrated inĀ chassis |
| Ethernet port adapters | 1 EPA slot |
| Cisco ASR 1000 Series ESP | Integrated inĀ chassis |
| Route processor | Integrated in the chassis: Cisco ASR 1002-HX Series Route Processor |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet ports | Yes: 8 Gigabit Ethernet SFP ports |
| Built-in 10 Gigabit Ethernet port | Yes: Eight 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports
Note:Built-in 10-GB ports cannot be reduced to 1-GB speed. |
| Network interface module | Yes |
| Dimension | Height: 3.5 in. (88.9 mm)
Width: 17.3 in. (439.4 mm) Depth: 19.25 in. (489.0 mm) |
AED819,599.00
Cisco ASR1002-HX System is one of the ASR 1000 Series routers, providing 4x10GE+4x1GE enabled portsļ¼upgradeable to 8xGE and 8x10GE with a license, 2x Power Supplies, and optional crypto.

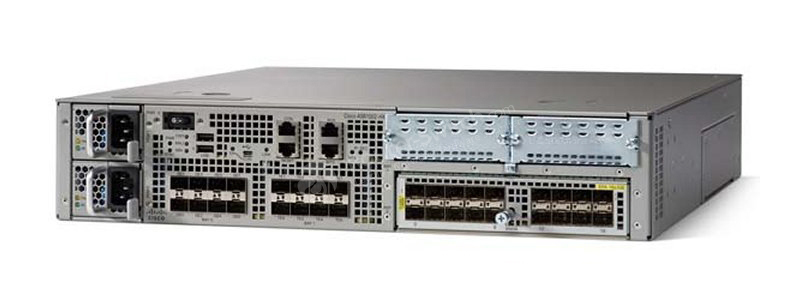

Figure 1 shows the appearance of ASR1002-HX=.
Table 2 shows the recommended SFP and SFP+ of ASR1002-HX=.
| Model | Description |
| GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| GLC-LH-SMD | 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| SFP-GE-T | 1000BASE-T SFP (NEBS 3 ESD) |
| GLC-BX-U | 1000BASE-BX SFP, 1310nm |
| GLC-BX-D | 1000BASE-BX SFP, 1490nm |
| GLC-TE | 1000BASE-T SFP transceiver module for category 5 copper wire |
| GLC-SX-MM | GE SFP, LC connector SX transceiver |
| GLC-LH-SM | GE SFP, LC connector LX/LH transceiver |
| GLC-EX-SMD | GE SFP, LC Connector, EX transceiver |
| GLC-ZX-SMD | 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
| SFP-10G-SR | 10GBASE-SR SFP+ Module for MMF |
| SFP-10G-SR-X= | 10GBASE-SR SFP+ Module for Extended Temp range |
| SFP-10G-LR | 10GBASE-LR SFP+ Module for SMF |
| SFP-H10GB-ACU7M | 10GBASE-CU SFP+ Cable 7 Meter, active |
| SFP-H10GB-ACU10M | 10GBASE-CU SFP+ Cable 10 Meter, active |
Compare to Similar Item
Table 3 shows the comparison.
| Models | ASR1002-HX= | ASR1001-X |
| Rack Height | 2U | 1U |
| SFP Ports | 8 x 1 G | 6 x 1 G |
| ESP Slots | Integrated | Integrated |
| RP Slots | Integrated | Integrated |
ASR 1002-HX= Specification |
|
| Physical specifications | Height: 3.5 in. (88.9 mm)
Width: 17.3 in. (439.4 mm) Depth: 19.25 in. (489.0 mm) Weight: āĀ Ā 34 lb (15.45 kg) (with dual AC power supplies) āĀ Ā 34 lb (15.45 kg) (with dual DC power supplies) |
| Default memory | 16-GB DRAM shared across route processor, ESP, and MIP |
| Number of SIPs or Ethernet line cards supported | Integrated inĀ chassis |
| Shared port adapters | N/A |
| Ethernet port adapters | 1 EPA slot |
| Cisco ASR 1000 Series ESP | Integrated inĀ chassis |
| Route processor | Integrated in the chassis: Cisco ASR 1002-HX Series Route Processor |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet ports | Yes: 8 Gigabit Ethernet SFP ports |
| Built-in 10 Gigabit Ethernet port | Yes: Eight 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports
Note:Built-in 10-GB ports cannot be reduced to 1-GB speed. |
| Network interface module | Yes |
| ESP support | Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) equivalent |
| ESP bandwidth | 100 Gbps |
| ESP memory | Share the same control memory on route processor |
| SIPs and Ethernet line cards | Integrated in chassis: not upgradable |
| Embedded hardware-based encryption | Yes: Up to 25-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 16.2.1S |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Redundant power supply | Yes: Dual power supplies by default; option of either AC or DC power supply
Note:Ā A mix of one AC and one DC power supply is not supported. |
| Power input | Worldwide ranging AC input range (85 to 264 VAC)
Worldwide ranging DC (-40 to -72; -48V nominal) |
| Power consumption | āĀ Ā Maximum (DC): 500W
āĀ Ā Maximum (AC): 500W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | 32 to 104Ā°F (0 to 40Ā°C) |
| Operating temperature (short-term) | 32 to 122Ā°F (0 to 50Ā°C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 to 90% |
| Storage temperature | -40 to 150Ā°F
(-40 to 70Ā°C) |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating altitude | -500 to 10,000 feet (152 to 3048 meters) |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 |
| EMC standards | Emissions
āĀ Ā FCC 47CFR15 ClassĀ A āĀ Ā AS/NZS CISPR 22 āĀ Ā CISPR 22 ClassĀ A āĀ Ā EN55022 Class A āĀ Ā ICES-003 Class A āĀ Ā VCCI Class A āĀ Ā CNS-13438 Class A āĀ Ā EN61000-3-2 āĀ Ā EN61000-3-3 Immunity āĀ Ā IEC/EN61000-4-2 Electrostatic Discharge Immunity āĀ Ā IEC/EN61000-4-3 Radiated Immunity āĀ Ā IEC/EN61000-4-4 EFT-B Immunity āĀ Ā IEC/EN61000-4-5 Surge āĀ Ā IEC/EN61000-4-6 Immunity to Conducted Disturbances āĀ Ā IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity āĀ Ā IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations ETSI/EN āĀ Ā EN55022/CISPR 22 Information Technology Equipment (Emissions) āĀ Ā EN55024/CISPR 24 Information Technology Equipment (Immunity) āĀ Ā EN300 386 Telecommunications Network Equipment āĀ Ā EN50082-1/EN61000-6-1 Generic Immunity Standard |
| Safety Standard | UL60950-1
CSA C22.2 No.Ā 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
