ASR1009-X – Cisco ASR 1000 Series Router
| Model: | ASR1009-X – Cisco ASR 1000 Series Router |
| Detail: |
ASR1009-X Router Chassis
|
| Product Code | ASR1009-X |
| Default memory | 8-GB DRAM RP2
8-GB DRAM RP3 |
| Number of SIPs or Ethernet line cards supported | 3 |
| Shared port adapters | 12 SPA slots |
| Ethernet port adapters | 6 EPA slots |
| Route processor | 2 route-processor slots |
| Network interface module | No |
| Weight | 154 lb (70 kg) |
| Dimensions (W x D x H) | 437.4 mmĀ xĀ 461.0 mmĀ xĀ 399.3 mm |
AED122,499.00
The Cisco ASR 1009-X Router is for medium and high-end enterprises with up to 200 Gbps total system bandwidth in a 9-rack-unit (9RU) form factor. With the ASR 1009-X, you can benefit from best-in-class service performance and network resilience through redundant hardware and carrier class software.
Figure 1 shows the appearance ofĀ ASR1009-X.
Ā

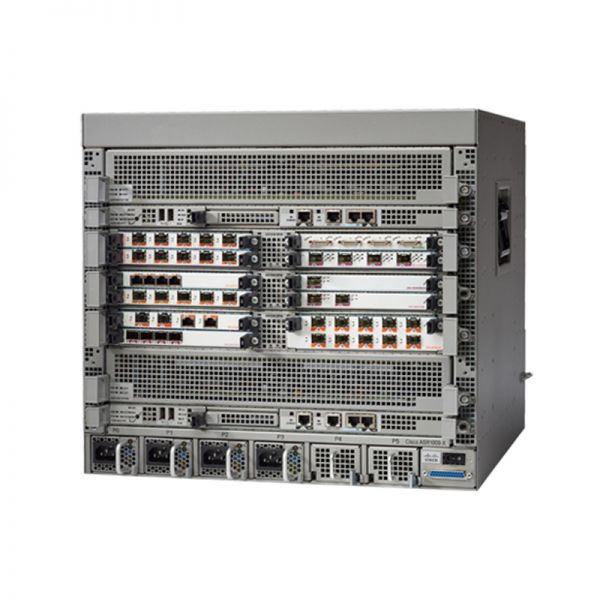

Figure 2 shows theĀ backĀ panel ofĀ ASR1009-X.
Ā
Note:
| ā | Power shelf that has power supplies from P0 to P5 |
| ā” | Slot F1 |
| ā¢ | Slot R1 |
| ā£ | Slot 2 |
| ā¤ | Slot 1 |
| ā„ | Slot 0 |
| ā¦ | Slot F0 |
| ā§ | Slot R0 |
| āØ | Standby/ON switch |
| ā© | DB-25 Alarm connector |
The Cardsļ¼Licenseļ¼USB Flash ļ¼Embedded Services Processor
Table 2 shows the recommended elements for theĀ ASR1009-X.
| Model | Description |
| card | |
| ASR1000-RP2 | Cisco ASR1000 Route Processor 2, 8GB DRAM |
| License | |
| FLASR1-SBC-RTU | DBE Base Right-To-Use Lic for Release 2.3.x and prior |
| FLASR1-BB-RTU | Broadband Right-To-Use Feature Lic for ASR1000 Series |
| FLASR1-IPSEC-RTU | Encryption Right-To-Use Feature Lic for ASR1000 Series |
| USB Flash | |
| MEMUSB-1024FT | 1GB USB Flash Token |
| Embedded Services Processor | |
| ASR1000-ESP40 | Cisco ASR1000 Embedded Services Processor, 40G |
Compare to Similar Items
TableĀ 3Ā shows the comparisonĀ between ASR1009-X and ASR1002-X.
| Model | ASR1009-X. | ASR1002-X |
| Default memory | 8-GB DRAM RP2
8-GB DRAM RP3 |
4-GB DRAM shared across route processor, ESP, and SIP |
| Number of SIPs or Ethernet line cards supported | 3 | Integrated in chassis |
| Shared port adapters | 12 SPA slots | 3 SPA slots |
| Ethernet port adapters | 6 EPA slots | N/A |
| Route processor | 2 route-processor slots | Integrated in the chassis: Cisco ASR 1002-X Series Route Processor
with Quad Core Processor |
| Network interface module | No | No |
| Weight | 154 lb (70 kg) | 39.05 lb (17.72 kg) |
| Dimensions (W x D x H) | 437.4 mm x 461.0 mm x 399.3 mm | 437.4 mm x 461.0 mm x 88.9 mm |
ASR1009-X Specifications |
|
| Physical specifications
Note:Ā Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 15.72 in. (399.3 mm)
Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight: āĀ Ā 50 lb empty āĀ Ā 154 lb (70 kg) (with three fan modules, four AC power supplies, two power bay blanks, two Cisco ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200], two Cisco ASR 1000 Series RP2s [ASR1000-RP2], three Cisco ASR 1000 Series 100-Gbps MIPs [ASR1000-MIP100], six EPA blanks, and no EPAs) |
| Default memory | 8-GB DRAM RP2
8-GB DRAM RP3 |
| Number of SIPs or Ethernet line cards supported | 3 |
| Shared port adapters | 12 SPA slots |
| Ethernet port adapters | 6 EPA slots |
| Cisco ASR 1000 Series ESP | 2 ESP slots |
| Route processor | 2 route-processor slots |
| Redundancy | Hardware: Yes |
| Built-in Gigabit Ethernet ports | 0 |
| Built-in 10 Gigabit Ethernet port | No |
| Network interface module | No |
| Cisco ASR 1000 Series | Cisco ASR 1009-X |
| ESP support | Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40), Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100), and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) |
| ESP bandwidth | 40 to 200 Gbps |
| ESP memory | Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40): 8-GB DRAMCisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200): 32-GB DRAM |
| SIPs and Ethernet line cards | Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE (ASR1000-2T+20X1GE) line cards; and six 10 GE line cards (ASR1000-6TGE) |
| Embedded hardware-based encryption | Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput, Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput, and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) with up to 78-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 3.16.0 |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Redundant power supply | Yes: Dual power supplies by default, expandable up to a total of six, depending on configuration and redundancy preferences; option of either 1100W AC or 950W DC
Note:Ā A mix of AC and DC power supplies is not supported. |
| Power input | Worldwide ranging AC input range (85 to 264 VAC)
Worldwide ranging DC (-40 to -72; -48V nominal) |
| Power consumption | āĀ Ā Maximum (DC): 5200W
āĀ Ā Maximum (AC): 5100W āĀ Ā Maximum (out): 4575W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | Same as for Cisco ASR 1001-X |
| Operating temperature (short-term) | Same as for Cisco ASR 1001-X |
| Operating humidity (nominal) (relative humidity) | Same as for Cisco ASR 1001-X |
| Operating humidity (short-term) | Same as for Cisco ASR 1001-X |
| Storage temperature | Same as for Cisco ASR 1001-X |
| Storage humidity (relative humidity) | Same as for Cisco ASR 1001-X |
| Operating altitude | Same as for Cisco ASR 1001-X |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 (in progress) |
| EMC standards | Same as for Cisco ASR 1001-X |
| Safety Standard | UL60950-1
CSA C22.2 No.Ā 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
