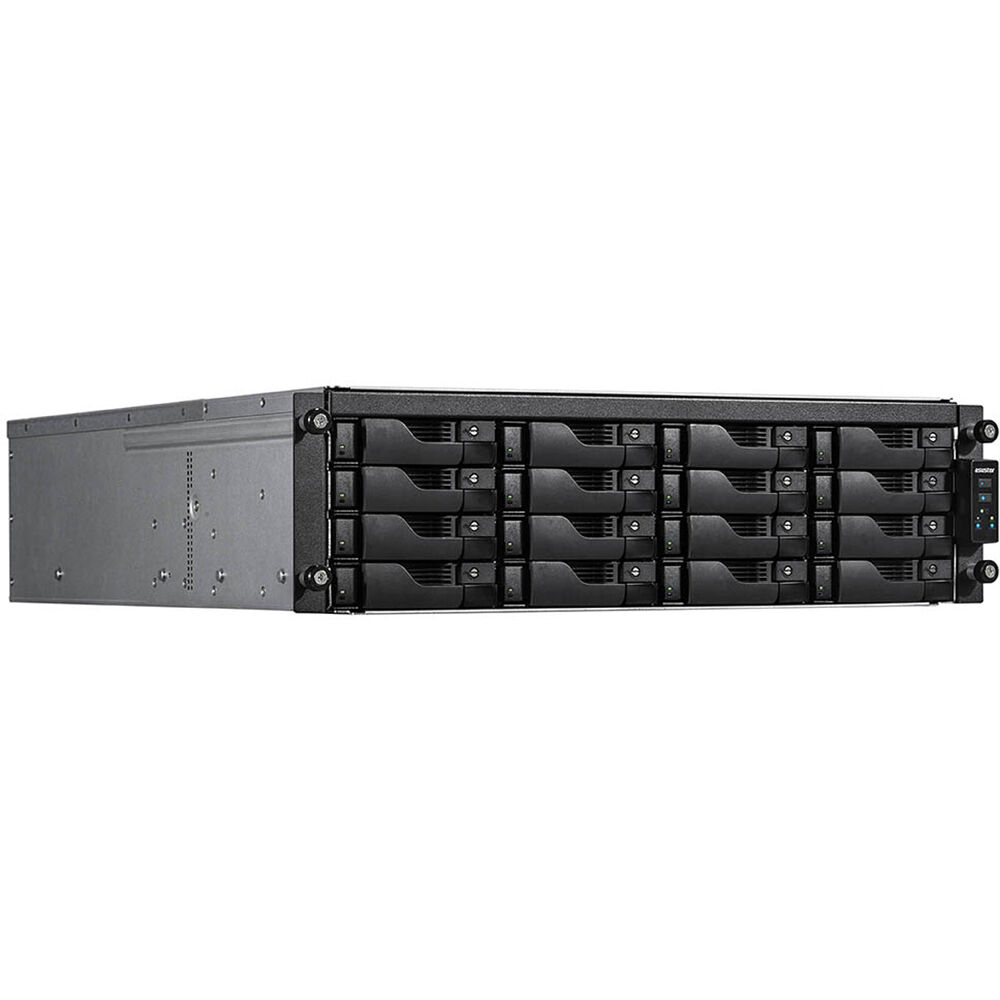

Asustor Lockerstor 16R Pro 16-Bay NAS Enclosure

Add to Wishlist

Quickly and reliably transfer, backup, and sync your data with the Lockerstor 16R Pro 16-Bay NAS Enclosure from Asustor. Built with quadruple Gigabit connectivity, a 3.4 GHz Intel Xeon E-2224 Quad-Core processor, and 8GB of ECC DDR4 memory that’s expandable to 128GB, this NAS is designed to deliver exceptional performance for your business as it grows its network storage capacity. The Lockerstor 16R Pro 16 includes 3.5″ / 2.5″ SATA III drive bays, supporting RAID 0, 1, 5, 6, 10, and JBOD configurations. Read speeds reach up to 451 MB/s and write speeds reach up to 451 MB/s using all four Gigabit connections with link aggregation in RAID 5 mode. Up to two M.2 22110 NVMe PCIe solid-state cache drives can be installed to further boost performance for data-intensive applications.

25,000.00 د.إ

Add to Wishlist

Asustor R Pro External HDD/SSD Overview

Quickly and reliably transfer, backup, and sync your data with the Lockerstor 16R Pro 16-Bay NAS Enclosure from Asustor. Built with quadruple Gigabit connectivity, a 3.4 GHz Intel Xeon E-2224 Quad-Core processor, and 8GB of ECC DDR4 memory that’s expandable to 128GB, this NAS is designed to deliver exceptional performance for your business as it grows its network storage capacity. The Lockerstor 16R Pro 16 includes 3.5″ / 2.5″ SATA III drive bays, supporting RAID 0, 1, 5, 6, 10, and JBOD configurations. Read speeds reach up to 451 MB/s and write speeds reach up to 451 MB/s using all four Gigabit connections with link aggregation in RAID 5 mode. Up to two M.2 22110 NVMe PCIe solid-state cache drives can be installed to further boost performance for data-intensive applications.

You can enhance performance even further with the available PCIe 3.0 expansion slots to install upgrades such as 40GbE network cards, SAS cards, and more. Four 10 Gb/s USB 3.2 Gen 2 Type-A ports and two USB 3.2 Gen 2 Type-C ports are also available for connecting peripherals such as storage drives and printers that can be shared across the network.

This 3U rackmount NAS supports up to 2048 concurrent connections with support for virtualization, Docker applications, and enterprise-class backup solutions. Your data is secured by features such as 256-bit AES encryption and an integrated firewall. The installed ADM operating system supports a variety of applications to help secure and streamline the operation of your NAS. The Lockerstor 16R Pro is compatible with Windows, Mac, Linux, and Unix operating systems.

General Features
Quad Gigabit Network Connections
The Lockerstor 16R Pro features four Gigabit Ethernet LAN ports that can help accelerate file sharing, virtual machines, and other applications.
Server-Grade ECC Memory
The included DDR4 ECC memory is designed to detect and correct the most common kinds of data corruption, helping to prevent data loss due to electromagnetic interference or crashes.
Network Storage
This NAS includes 16 3.5″ / 2.5″ SATA III 6 Gb/s drive bays, and installed drives can be set to RAID 0, 1, 5, 6, 10, and JBOD configurations to back up your business’s data, share files across your network, and more. Your data is secured by features such as 256-bit AES encryption and an integrated firewall.
M.2 SSD Cache Acceleration
Up to two M.2 22110 NVMe PCIe SSD cache drives can be installed to further boost performance for data-intensive applications.
Power and Performance
Featuring a 3.4 GHz Intel Xeon E-2224 Quad-Core processor with up to 4.6 GHz burst speeds and 8GB of ECC DDR4 memory, the Lockerstor 16R Pro is designed to handle high workloads with up to 2048 concurrent connections, supporting virtual machines and Docker apps. The Lockerstor 16R Pro can transfer data at up to 451 MB/s, utilizing all four Gigabit Ethernet ports with link aggregation in RAID 5 mode.
PCIe Expansion Slots
Two PCIe Gen 3 x4 slots and one x8 slot are available, allowing you add expansions such as 40GbE network adapters, SAS cards, and more to your NAS.
Enterprise Backup
The Lockerstor 16R Pro features two built-in 550W redundant power supplies and four Gigabit Ethernet ports with failover capabilities to help increase reliability, data integrity, and execution speeds.
“Find Me” Function and Service Light
Pressing a dedicated button turns on an LED service light, which complements the Find Me function on the NAS management app to sound a buzzer, allowing administrators to quickly locate the device in crowded server rooms.
Comprehensive Data Protection

The Linux-based ADM operating system includes features such as a built-in firewall, antivirus, 256-bit AES encryption, and various backup tools to secure your data. Snapshot Center and Btrfs assist in efficiently creating snapshots to backup and restore data. Snapshot Center supports up to 256 snapshots per volume, which can be done every five minutes.

This NAS is also compatible with applications such as Windows Backup Plan and Time Machine for macOS in addition to cloud storage services such as Amazon S3, Dropbox, Google Drive, and Microsoft OneDrive. The Datasync Center allows you to manage multiple cloud storage solutions from a single app.

SKU: 16R Pro 16-Bay Category: Tag:

Asustor R Pro External HDD/SSD Specs

Computing
CPU 3.4 to 4.6 GHz Quad-Core
Processor Intel Xeon E-2224
Total Installed Memory 8 GB ECC DDR4
User-Replaceable Memory 1 x 8 GB
Total Memory Slots 4 x DIMM
Maximum Memory Capacity 128 GB
Flash Memory 8 GB
General
Number of Bays 16 x 2.5″/3.5″
2 x M.2 (22110)
I/O 4 x RJ45 (Gigabit Ethernet)
4 x USB Type-A (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s))
2 x USB Type-C (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s))
Compatible Drive Interface SATA III
Media Card Slots None
Maximum Filled Capacity 288 TB
432 TB (with Expansion)
Form Factor Rackmount (3 RU)
RAID RAID 0, 1, 10, 5, 6, JBOD
Hot-Swap Support Yes
PCI Expansion 2 x PCIe 3.0 (x4 Electrical)
1 x PCIe 3.0 (x8 Electrical)
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CIFS/SMB
FTP
HTTP
HTTPS
IPv4
IPv6
NFS
Proxy
Rsync
SFTP
SMB 2.1
SMB 3.0
SNMP
SSH
Syslog
TFTP
WebDAV
iSCSI
iSCSI LUN 512
iSCSI Target 256
Max Concurrent Connections 2048
Max Folders 512
Max Groups 512
Max User Accounts 16,384
Software
Installed Operating System ADM 3.5
Supported File Systems Internal: BTRFS, EXT4
External: BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility Windows XP or Later
Windows Server 2003 or Later
UNIX
Linux
FreeBSD
*As of November, 2020: Check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Edge, Firefox, Internet Explorer, Safari
Supported Languages Czech
Danish
Dutch
English
Finnish
French
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Thai
Traditional Chinese
Turkish
Security
Encryption 256-Bit AES
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
Power Consumption 121.7 W (Typical)
51.5 W (Idle)
7.55 W (Standby)
PSU Wattage 2 x 550 W (Supports Redundancy)
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95%
Physical
Status Monitoring LED Indicator
Audible Alarm No
Cooling 3 x 60 mm Fans
Built-In Speakers None
Dimensions 21.1 x 17.3 x 5.2″ / 535.9 x 439.4 x 132.1 mm
Weight 33.7 lb / 15.3 kg
Packaging Info
Package Weight 45.76 lb
Box Dimensions (LxWxH) 28.2 x 23.6 x 12.2″
