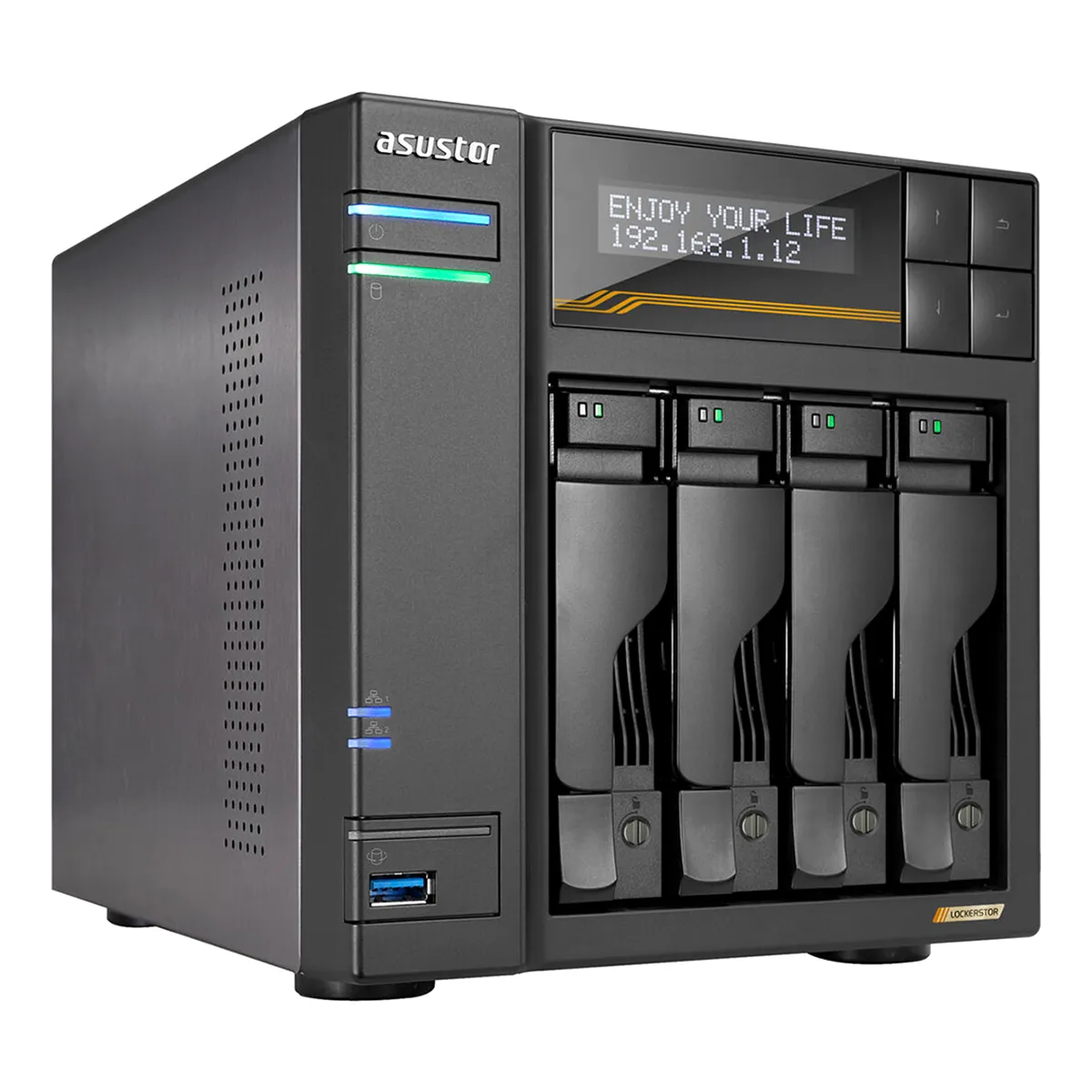

ASUSTOR Lockerstor 4 Gen 3 AS6804T 4-Bay NAS Enclosure, Diskless


Key Features

  • Experience lightning-fast data transfers with dual 10GbE ports on this 4-Bay NAS enclosure.
  • Safeguard your files with robust data security features, including AES 256-bit encryption.
  • Enjoy easy setup and management with ASUSTOR’s intuitive ADM interface on your new NAS.
  • Stream 4K video seamlessly and share media effortlessly with this high-performance server.
  • Access your files remotely from anywhere, ensuring your data is always within reach, securely.
  • Ensure reliability with ECC DDR5 memory, preventing data corruption for critical applications.

AED7,799.00

AboutĀ ASUSTOR Lockerstor

It is time to elevate your data management with the ASUSTOR Lockerstor 4 Gen 3 AS6804T 4-Bay NAS Enclosure, a robust and versatile solution designed for both personal and professional use. Powered by AMD’s Ryzen Embedded SoC, this NAS enclosure delivers exceptional energy efficiency and desktop-class performance with its four cores operating at speeds up to 3.8 GHz. This ensures seamless data transfer, storage, and creation processes, making it an ideal choice for demanding tasks.

The ASUSTOR Lockerstor 4 Gen 3 is equipped with server-grade ECC RAM, which is crucial for detecting and correcting data corruption, thereby preventing data loss due to electromagnetic interference or system crashes. This feature enhances the stability and reliability of your NAS, making it one of the most dependable options available.

Experience unparalleled speed with the Lockerstor Gen3 series, ASUSTOR’s fastest NAS to date. It combines the power of AMD’s Ryzen Embedded SoC with M.2 NVMe SSDs utilizing PCIe 4.0, dual USB4 ports, and dual 10GbE connectivity. This configuration ensures lightning-fast data operations, whether you’re transferring, storing, or backing up data. With four M.2 slots for NVMe SSDs and up to ten bays for HDDs, you get the perfect blend of speed and capacity.

The inclusion of PCI Express 4.0 technology doubles the performance of the M.2 slots compared to the previous generation, supporting both caching and storage for enhanced random I/O performance. The dual USB4 ports offer ultra-fast data transfer speeds of up to 40 Gbps and are compatible with Thunderbolt 3/4 devices, facilitating rapid data synchronization and backup without relying on network ports.

Cooling is paramount for the high-performance Lockerstor Gen3 series. It features an advanced heat dissipation system with heat pipes and fins to efficiently manage CPU heat, ensuring optimal performance even under heavy workloads.

The innovative MyArchive cold backup technology allows for unlimited capacity expansion by turning NAS hard disks into removable storage archives. Simply insert a MyArchive disk into the NAS to access, backup, and share vast amounts of data effortlessly.

Security is a top priority with the ASUSTOR NAS, which is fortified with a Linux-based ADM, built-in firewall, ClamAV Antivirus, and various backup tools to protect against ransomware and other threats. Features like AES-256 folder encryption, VPN connections, and 2-Step Verification further enhance data security.

The Snapshot Center feature leverages Btrfs and iSCSI volumes to take up to 256 snapshots of a volume, providing a reliable backup solution that can be restored easily if data is compromised. MyArchive now supports Btrfs and snapshots, offering version history to safeguard against accidental deletions or modifications.

DataSync Center integrates multiple cloud services, including Google Drive, Dropbox, and OneDrive, into a single app for streamlined data management. The Cloud Backup Center supports a wide range of business cloud services, ensuring your data is protected both online and offline.

Transform your NAS into a multimedia powerhouse with ASUSTOR’s App Central, offering apps like UPnP Media Server and OwnTone for streaming content to various devices. The revamped Photo Gallery 3 and AiFoto 3 apps simplify photo organization and sharing, enhancing your digital experience.

For surveillance needs, the ASUSTOR NAS provides a cost-effective solution with four free camera channels, expandable up to 72 channels. The Surveillance Center and AiSecure mobile app allow for remote monitoring of live feeds, ensuring the security of your home or business.

With Portainer for Docker images, the ASUSTOR NAS offers easy deployment of a wide range of programs, expanding its functionality. Dr. ASUSTOR provides comprehensive protection against threats, including ransomware, ensuring your data remains secure.

ASUSTOR’s mobile apps and EZ Connect technology enable remote access to your NAS, while App Central offers over 200 unique applications to customize your NAS experience, catering to business, entertainment, and more. Explore the limitless potential of the ASUSTOR Lockerstor 4 Gen 3 AS6804T 4-Bay NAS Enclosure and create a personalized digital ecosystem tailored to your needs.

ASUSTOR LockerstorĀ Features

  • Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz – 3.8 GHz Turbo
  • 16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
  • Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
  • 2x USB4 ports at 40 Gbps
  • 3x USB 3.2 Gen 2 Type-A at 10 Gbps
  • 2x 10-Gigabit Ethernet
  • 2x 5-Gigabit Ethernet
  • Supports Wake on LAN and Wake on WAN (5 GbE)
SKU: AS6804T Category: Tag:

Here is the 100% table-format specification for the ASUSTOR Lockerstor NAS:

Category Specification
Hardware: CPU
CPU Model AMD Ryzen V3C14
CPU Architecture x64 64-bit
CPU Frequency Quad-Core 2.3GHz (burst up to 3.8GHz)
Hardware: Memory
Memory 16GB ECC DDR5-4800 SO-DIMM
Memory Module Pre-installed 16GB (1x16GB)
Total Memory Slots 2
Memory Expandable up to 64GB (supports mixed capacity; ECC functionality disabled if non-ECC used or mixed)
Flash Memory 8GB eMMC
Hardware: Storage
Drive Bays 4
M.2 Drive Slots 4
Compatible Drive Types 3.5″ SATA HDD, 2.5″ SATA HDD, 2.5″ SATA SSD, M.2 2280 NVMe
Maximum Drive Bays with Expansion Unit 16
Supports Hot Swappable Drives Yes
Hardware: External Ports
Expansion 3x USB 3.2 Gen 2 (10Gbps) Type-A, 2x USB 4.0 (40Gbps) Type-C
Network 2x 5 Gigabit Ethernet (5G/2.5G/1G/100M), 2x 10 Gigabit Ethernet (10G/2.5G/1G/100M)
PCIe Expansion Slots PCIe 4.0 x4 link (for optional 10 GbE card)
Hardware: Others
System Fan 1x 120mm
LCD Panel Yes
Power Supply Unit / Adapter 90W x1
Input Power Voltage 100V to 240V AC
Certification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Hardware: Operation
Power Consumption Operation: 34W, Sleep Mode: 23W
Noise Level 17.6dB (HDD idle)
Operation Temperature 32°F – 104°F (0°C – 40°C)
Storage Temperature -4°F – 158°F (-20°C – 70°C)
Humidity 5% – 95% RH
Hardware: Physical
Dimensions (D x W x H) 9.06 x 6.69 x 7.30″ (230 x 170 x 185.5mm)
Weight 7.06 lbs (3.20kg)
Software & Features: General
Supported OS Windows 10, 11, Server 2016, 2019, 2022, macOS, UNIX, Linux, BSD
Supported Languages German, English, French, Italian, Dutch, Russian, Japanese, Korean, Simplified & Traditional Chinese, Czech, Polish, Swedish, Danish, Norwegian, Finnish, Portuguese, Turkish, Spanish, Hungarian, Thai
Supported Browsers Firefox, Chrome, Safari, Microsoft Edge
Software & Features: Network
Network Protocols CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Connection and Transmission TCP/IP (IPv4 & IPv6), Link Aggregation (802.3ad & six other modes), Jumbo Frame (MTU), VLAN, EZ Connect, Wireless Network, DDNS, EZ-Router, WOL, WOW
Software & Features: File Management
File System Internal: EXT4, Btrfs; External: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT, Btrfs
File Explorer Web-based File Management, ISO Mounting, Share Links, Task Monitor, Local PC Browsing, Thumbnail Preview, External Optical Drive Access, Video Playback
Network Recycle Bin Share folder-based, retains directory structure and permissions, on-click restore, scheduled emptying, filtering by size/date/type
Software & Features: Storage Management
Supported RAID Levels Single, JBOD, RAID 0, 1, 5, 6, 10
Supported RAID Migration Methods Single → RAID 1/5/6/10, RAID 1 → RAID 5/6/10, RAID 5 → RAID 6
Software & Features: Volume
RAID Levels Supporting Expansion By drive replacement: RAID 1/5/6/10; By drive addition: RAID 5
RAID Spare Drive Support RAID 1, RAID 5
Supported RAID Levels Single, JBOD, RAID 0/1/5/6/10
Supported RAID Migration Same as above
Software & Features: M.2 Volume
RAID Levels Supporting Expansion By complete drive replacement: RAID 1/5/6/10; By drive addition: Yes
Supported RAID Migration Methods RAID 1, RAID 5
MyArchive Hot-swappable design, works in any empty bay, supports EXT4, NTFS, HFS+, Btrfs, exFAT, AES 256-bit encryption, Btrfs snapshots, USB key decryption
iSCSI/IP-SAN Max Targets: 256, Max LUNs: 256, Max Snapshot Versions per LUN: 256, Target Masking, LUN Mapping, ISO Mounting, MPIO, Persistent (SCSI-3) Reservations
Disk Management Scheduled Bad Block & S.M.A.R.T. Scans
Software & Features: Access & Security
Access Control Max Users: 4096, Max Groups: 512, Max Shared Folders: 512, Max Concurrent Connections: 512
Directory Services Windows Active Directory / LDAP
ACL Windows & Linux ACL, 13 permission types, reset to defaults, supports local users & groups
SSD Cache Read-only and read-write modes supported
System Administration Logs (System, Connection, File Access), Real-time User/System Monitor, User Quota, Virtual Drive (ISO Mounting, 16 max), UPS Support
Security AES 256-bit Encryption, Firewall, Email/SMS Alerts, HTTPS, FTPS, SSH, SFTP, Rsync over SSH, Hardware Encryption Engine, RAID Scrubbing
Network Defender Auto blacklist, Trusted list, IP/IP range/geolocation filtering
Software & Features: Backup
Backup Solutions Rsync, Cloud Backup, FTP Backup, External Backup, One Touch Backup, EZ Sync, SMB Backup
Snapshots Btrfs Snapshots (256 total), iSCSI LUNs supported
Software & Features: Others
ASUSTOR Highlight System Migration, EZ Connect, Dr. ASUSTOR, 2-way Backup, Task Monitor
Eco-Friendly Design Sleep Mode (S3), Disk Auto-Standby, Fan Control, LED Night Mode, Power Schedule (On/Off/Restart/Sleep)
Energy Control Configurable Hibernation and Sleep Mode Timers
Apps ClamAV Antivirus, Download Center, FTP Explorer, DataSync Center, Cloud Backup Center, RADIUS Server, Mail Server, LooksGood, Photo Gallery 3, SoundsGood, Surveillance Center, UPnP Media Server, VPN Server & Client
Mobile Apps AiMaster, AiFoto 3, AiMusic, AiVideo, AiData, AiDownload, AiSecure, AiRemote
