ATEN Compact Control system (Controller + Software + 2 Licenses for iOS System App)


Compact Control system (Controller + Software + 2 Licenses for iOS System App)

6,899.00 د.إ

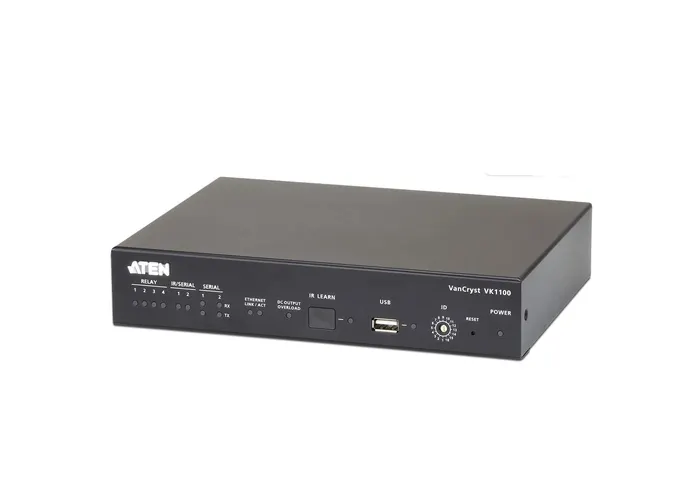

The ATEN Control System, incorporating the ATEN Control Box (VK1100 or VK2100), the ATEN Configurator (VK6000) and the ATEN Control System App, is a standard Ethernet-based management system that connects all the hardware devices in a room or large facility to provide centralized control directly and effortlessly via a mobile device and tablet computer. The VK1100 Compact Control Box works as the main controller that provides connectivity to all the hardware devices found in a room. After connecting the hardware, the VK6000 Configurator software provides simple setup of the devices with easy step by step configuration. The ATEN Control System App then connects you to the VK1100 Compact Control Box from any iOS, Android or Windows mobile device / tablet computer which empowers you with mobility to control all the hardware devices, in different rooms, whenever and however you like. 1x VK1100 ATEN Compact Control Box 1x LIN2-418K-E12G Power Cord 4x Terminal Blocks 1x User Instructions

SKU: VK1100K2-AT-G Categories: , Tag:
Attribute Value
Width 215 mm
Depth 162.3 mm
Height 41.8 mm
Weight 1.72 kg
Package width 207 mm
Package depth 414 mm
Package height 117 mm
Package weight 1.81 kg
Power consumption (typical) 5.4 W
Input frequency 50-60 Hz
Input voltage 100-240 V
DC input voltage 12 V
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 0 – 80%
Storage relative humidity (H-H) 0 – 80%
Harmonized System (HS) code 85176990
LED indicators Yes
Manual Yes
Cables included AC
Master (outer) case net weight 5.16 kg
Master (outer) case width 370 mm
Master (outer) case length 427 mm
Master (outer) case height 232 mm
Master (outer) case gross weight 6.2 kg
Products per master (outer) case 3 pc(s)
Product colour Black
Enclosure material Metal
Control display unit No
Supported network protocols ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
Security algorithms SSH
Ethernet LAN data rates 10, 100 Mbit/s
Web-based management Yes
Reset button Yes
USB 2.0 ports quantity 1
RS-232 ports 2
Ethernet LAN (RJ-45) ports 1
Serial interface type RS-232/422/485
