Aten Corp VM0404 4 by 4 VGA Matrix Switch (VM0404)
The VM0404 4×4 Video Matrix Switch connects four VGA source devices to four VGA monitors, displays, or projectors at the same time. It’s steadfast unique features include: EDID mode selection for high compatibility, long signal range, easy source/display switching and matrix connections.
As a Matrix Switch, each input can be independently connected to any or all outputs. The audio and video inputs from each source device can also be switched independently – giving you the ultimate in flexibility and control in any multi-display audio/video installation.

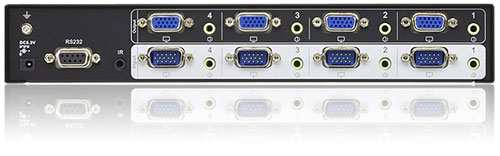

Rear view of the Aten VM0404 VGA Matrix switch
Features:
- Connects any of four VGA Video + Audio inputs to any of four VGA Video + Audio outputs
- Long distance transmission ā up to 100 feet (30m)
- Easily switch between multiple sources and multiple displays
- Easy Operation:Superior video quality ā up to 1920 x 1440; VGA, SVGA, XGA, SXGA, UXGA, and WUXGA (1920 x 1200)
- Front panel pushbuttons
- RS-232 serial controller
- Supports up to 300 MHz bandwidth for high performance video
- EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
- Built-in bi-directional RS-232 serial port for high-end system control
- Independent switching of audio and video sources – each input can be independently connected to any or all outputs for flexibility
- Rack Mountable
- All-metal casing

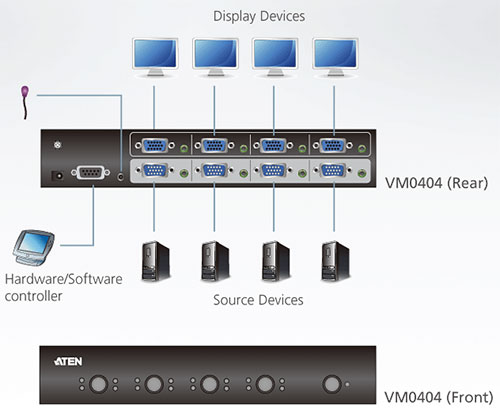

VM0404 Application Diagram
Package Includes:
- 1x VM0404 4×4 Video Matrix Switch with Audio
- 1x Power Adapter
- 1x User Instructions
VM0404 Specifications:
Mechanical | Ā |
Height | 1.7 in. (4.2 cm.) |
Width | 10.2 in. (26.0 cm.) |
Depth | 3 in. (7.6 cm.) |
Weight | 1.9 lbs. (0.87 kg.) |
Housing | Metal |
Environmental | Ā |
Operating Temperature | 32 ~ 122F (0~50 C) |
Storage Temperature | -4~ +140F (-20~ +60C) |
Humidity | 0~ 80% RH, NC |
Power Consumption | DC5.3V, 2.7W |
LED’s | Ā |
Power | 1 (Green / Orange) |
Port Selections | 16 green |
Connectors | Ā |
Video Input | 4 x 15 pin HDB Male, Blue |
Audio Output | 4 x Earphone Jack, Female, Green |
Power | 1 x DC jack |
Video Output | 4 x 15 pin HDB Female, Blue |
Audio Input | 4 x Earphone Jack, Female, Green |
IR Port | 1 x Mini Stereo Jack Female (Black) |
Video Bandwidth | 300 MHz |
Video Resolution | 1920 x 1440 @ 60Hz |
