Aten CubiQ 4-Port HDMI KVM With USB Hub & Integrated Digital Audio
With its unique design and innovative features, the ATEN CubiQ⢠CS1794 HDMI KVMP⢠Switch with USB 2.0Ā hub, provides both style and functionality for today’s multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
The ATEN CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync⢠technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio. Ideal for multimedia applications in the home or office, the ATEN CubiQ⢠CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
In the box:
1 x CS1794 USB 2.0 HDMI KVMP⢠SwitchĀ
4 x Custom HDMI KVM Cable SetsĀ
1 x Firmware Upgrade CableĀ
1 x Power AdapterĀ
1 x USB-to-PS/2 ConverterĀ
1 x User Instructions
ATEN’s CS1794 HDMI KVM Rear Connections
CS1794 Hot Key Sequence
Hotkey Mode (Invoke Hotkeys) |
Port Selection | Invoke OSD |
Default: [Num Lock] + [-] | Default: [Scroll Lock] [Scroll Lock] [Port #] [Enter] | Default: None |
Alternate: [Ctrl] + [F12] | Alternate: [Ctrl] [Ctrl] [Port #] [Enter] | Alternate: None |
Features of the CS1794
- One USB console controls four HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support – fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Superior video quality – supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection – If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
- Multiplatform support – Windows, Linux, and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSync⢠– stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable
* 1. PC keyboard combinations emulate Mac Keyboards
Ā Ā 2. Mac keyboards only work with their own computers

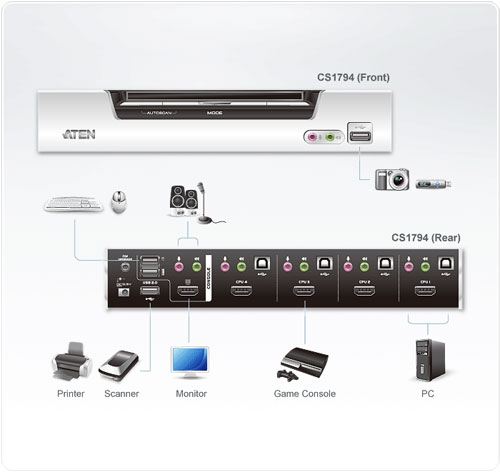

Typical Application Diagram
Ā CS1794 Specifications:
Mechanical | Ā |
Width | 10.4 in. (20.50 cm.) |
Height | 1.77 in. (4.50 cm.) |
Depth | 2.9 in. (7.3 cm.) |
Weight | 1.2 lbs. (0.53 kgs.) |
Computer Connections | 4 |
Port Selection | Front Panel Pushbuttons, Hotkeys |
Connectors | Ā |
Console Ports | Keyboard- 1 x USB Type A Female (Black; rear panel)Ā Video 1- 1 x HDMI Type A Female (Black) Mouse- 1 x USB Type A Female (Black; rear panel)Ā Speaker- 2 x Mini Stereo Jack FemaleĀ (Green; 1 x front, 1 x rear) Mic.- 2 x Mini Stereo Jack FemaleĀ (Pink; 1 x front, 1 x rear) |
KVM Ports | Keyboard/Mouse- 4 x USB Type B Female (White) Video- 4 x HDMI Type A Female (Black) Speaker- 4 x Mini Stereo Jack Female (Green) Mic.- 4 x Mini Stereo Jack Female (Pink) |
Power | 1 x DC Jack |
USB 2.0 Hub | 2 x USB Type A Female (White: 1x front panel: 1x rear panel) |
F/W Upgrade | 1 x 4-conductor 3.5mm Jack (Black) |
Ā | Ā |
Switches | Ā |
Selected | 5 x Pushbutton |
LEDs | Ā |
KVM | 5 (Orange) |
Audio | 5 (Green) |
USB | 5 (Green) |
Emulation | Ā |
Keyboard/Mouse | USB |
Video | 1080p (HDMI)/1920×1200 (DVI) |
Scan Interval | 1-99 secs. (Default: 5 secs) |
Power Consumption | DC 5.3 V, 3.2 W |
Environment | Ā |
Operating Temperature | 0-50C |
Storage Temperature | -20-60C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | Ā |
Housing | Metal, Plastic |
