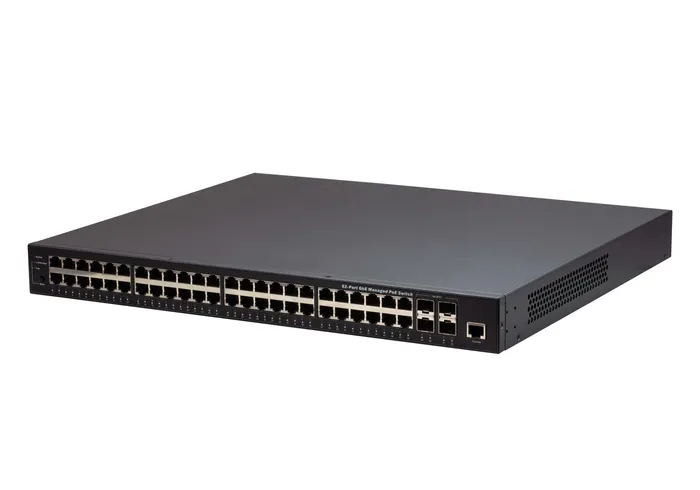

ATEN ES0152P-AX-E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Add to Wishlist

52-Port GbE PoE Managed Switch

AED41,899.00

Add to Wishlist

The ES0152P is a feature-rich managed switch for ATEN KE series KVM over IP extenders and VE89 series Video over IP extenders. Ideal for installation in combination with the KE / VE89 series products, the ES0152P helps users build their OT infrastructure with the KE series by eliminating the hassles of complicated setup. 1x ES0152P 52-Port GbE PoE Managed Switch 1x LIN2-418K-E12G AC Power Cord 1x RJ45 to DB9 Serial Console Cable 1x Foot Pad Set (4 pcs.) 1x Mounting Kit 1x User Instructions

SKU: ES0152P-AX-E Categories: , Tag:
Feature Description
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Y
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Console port RJ-45
Networking standards IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
10G support Y
Flow control support Y
Spanning tree protocol Y
Switching capacity 176 Gbit/s
Forwarding rate 130.95 Mpps
Jumbo frames support Y
Jumbo frames 10240
IGMP snooping Y
Product colour Black
Housing material Metal
AC input voltage 100 – 240 V
AC input frequency 50/60 Hz
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 48
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 740 W
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -20 – 60 °C
Operating relative humidity (H-H) 10 – 90%
Storage relative humidity (H-H) 10 – 90%
Width 442 mm
Depth 372 mm
Height 44 mm
Weight 5.93 kg
Cables included AC
User guide Y
Package width 470 mm
Package depth 534 mm
Package height 138 mm
Package weight 6.82 kg
