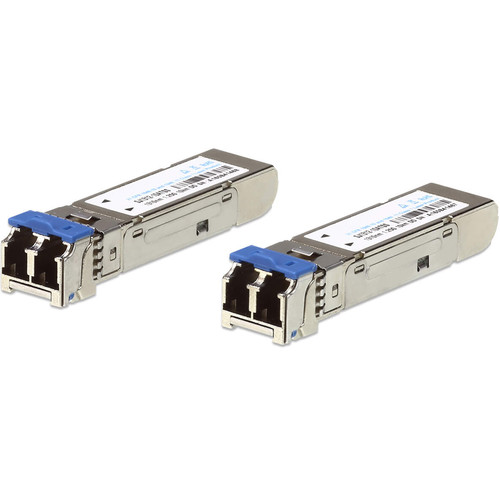

ATEN Fiber Multi-Mode 1.25 Gb/s SFP Transceiver Module (550m, 2 Modules)

Add to Wishlist

ATEN 2A-136G Overview

The 2A-136G Fiber Multi-Mode 1.25G SFP Transceiver Module provides 1 GbE connectivity up to 550 meters. The transceiver can be installed in both transmitters and receivers. As a hot pluggable module with a standard duplex connector for fiber communications, the 2A-136G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm which makes it a cost-effective and high performance transceiver.

Key Features
  • Extend your network connectivity up to 550 meters
  • Differential Inputs and Outputs
  • Small Form Factor Pluggable MSA (SFP Multi-Source Agreements standards) Compliant
  • Compliant with SFF-8472 MSA Digital Diagnostic Monitor (DDM), Internal Calibration

AED699.00

Add to Wishlist

ATEN 2A-136G Specs

General
Packaged Quantity
2 (specifications are for single item)
Device Type
SFP (mini-GBIC) transceiver module
Form Factor
Plug-in module
Networking
Connectivity Technology
Wired
Data Transfer Rate
1.25 Gbps
Optical Wave Length
850 nm
Max Transfer Distance
1800 ft
Features
Digital Diagnostics Monitoring (DDM)
Expansion / Connectivity
Interfaces
1 x network – LC multi-mode x 2
Miscellaneous
Compliant Standards
RoHS, Laser Class 1, EN 60825-1, MSA SFF-8472, FDA 21CFR1040.10, FDA 21CFR1040.11
Dimensions & Weight
Width
0.6 in
Depth
2.2 in
Height
0.5 in
Weight
0.71 oz
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
158 °F
