Aten RS-232 to RS-485/RS-422 Bi-directional Converter
Aten RS-232 to RS-485/RS-422 Bi-directional Converter
,

Aten RS-232 to RS-485/RS-422 Bi-directional Converter

Availability:

30 in stock
Add to Wishlist

AED199.00

30 in stock

Add to Wishlist

Aten RS-232 to RS-485/RS-422 Bi-directional Converter

Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional ConverterĀ
Aten IC485S is a 2-way converter for converting RS-232 signals to and from RS-422/RS-485 signals in long-distance application up to 1200m (4000 ft.). It supports the connection of up to 32 hubs.Ā

Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional ConverterĀ Features and Benefits:

  • Data transmission controlled by the RTS signal.
  • DCE/DTE selectable.
  • Point to point, multidrop, and simplex/duplex link selection.
  • Four wire full duplex/two wire half duplex.
  • Monitor configuration support.
  • Compact size.
  • OS Compatibility: WIN98态WIN ME态WIN 2K 态WIN NT and WIN XP.

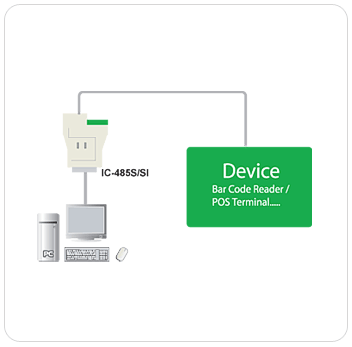

ATEN IC485S Function Diagram
Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional ConverterĀ Function Diagram

Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional ConverterĀ Package Content :Ā
1x IC-485S Bi-directional ConverterĀ
1x Power AdapterĀ
1x User ManualĀ
Ā

Aten (IC485S) RS-232 to RS-485/RS-422 Bi-directional Converter Specifications:

Connectors 1 DB-25 Female (RS-232)
RS-485 / RS-422 Four Terminal Block
RJ-11
Switches SW1 DCE, DTE, Monitor
SW2 TxON, RxON
TxRTS, RxRTS
TxRTS, RxON
Cable Length 1200 m [4000′] (max.)
Data Rate Up to 100 Kbps under 1200 m [4000′]
Power Consumption DC9V, 1.35W (max.)
Housing Plastic
Weight 0.06kg
Dimensions
( L x W x H )		 5.4 x 7.45 x 1.85 cm



SKU: IC485S Categories: , Tags: , ,
Weight 0.6 kg
