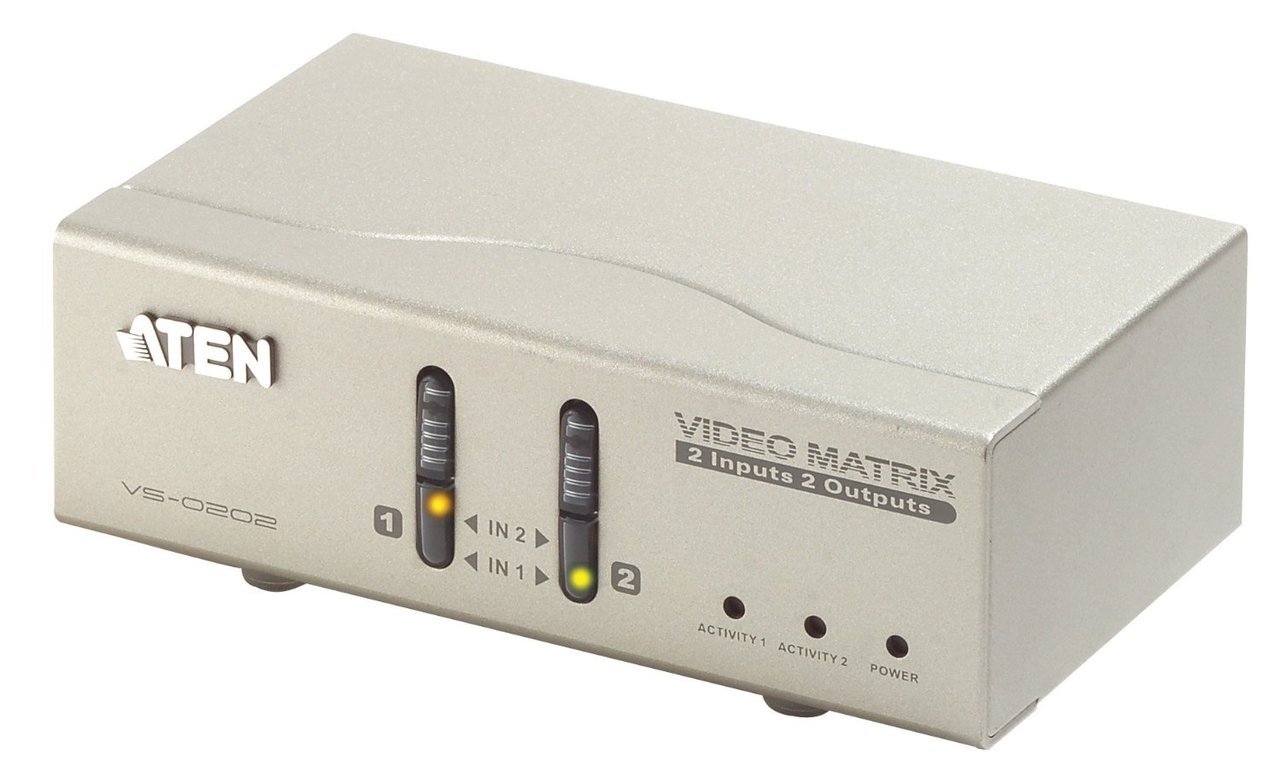

Aten Technology VS0202 2×2 Port Audio Video Matrix Switch with Signal Booster

The ATEN VS0202 is a 2 port Video Matrix Switch which integrates a video switch, a video splitter, and a speaker together. When the regular video splitter can only distribute a single video signal to multi-monitors and the regular video switch just shows a single video signal at one time,VS0202 allows video and audio signals from 2 separate computers to be routed to 2 monitors, projectors, and speakers independently.

The VS0202 matrix switch is also a signal booster. It allows you to extend the signal transfer distance up about 210 feet with excellent video quality. To provide more outputs, VS0202 can be cascaded itself or regular video splitter (2 levels) for various applications. This video matrix switch is ideal for presentations and applications where information from multiple computers is being delivered to multiple destinations

Aten Video Matrix Switch Application Diagram

Aten Video Matrix Switch Features:

• Each of the 2 video outs can toggle between Source1 and Source2 using front panel push buttons
• Duplicate and enhance video signals to up to 210 ft. (max.)
• Expandable
• Audio enabled OS Compatibility :DOS, Windows, LINUX, Mac OS 8.6/9/10 and SUN Solaris 8/9
• Simultaneous Monitor Display

VS0202 Package Includes:

• 1x Video Switch
• 1x Power Adapter
• 1x VGA Cable 6.0 ft. (1.8 m.)

• 1x User Guide

Aten VS0202 Specifications:
