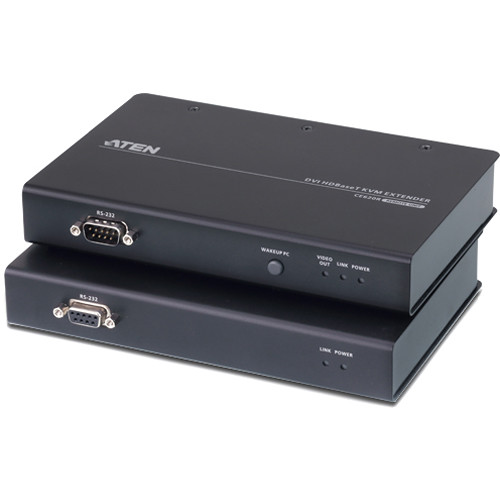

ATEN USB DVI HDBaseT 2.0 KVM Extender over CAT5e/6 Cable (328′)

Add to Wishlist

AED3,999.99

Add to Wishlist

ATEN CE620 Overview

The ATEN CE620 USB DVI HDBaseT 2.0 KVM extender integrates the HDBaseT 2.0 technologies to provide reliable transmission of video, audio, USB and RS-232 signals. The CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

Key Features
  • Extends video, audio, USB and RS-232 signals via a single Ethernet cable
  • EDID Buffer for smooth power-up and high-quality display
  • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
  • Long distance superior video quality
  • Long Reach mode switch – switches between HDBaseT Standard and Long Reach modes in a snap
  • Integrated USB 2.0 ports – ensuring fast transmission speeds for peripherals
  • Supports 2-channel PCM digital audio – ensuring high-quality audio transmissions
SKU: CE620 Category: Tag:

ATEN CE620 Specs

General
Device Type KVM / audio / serial / USB extender
Form Factor External
Networking
Connectivity Technology Wired
Data Link Protocol HDBaseT 2.0
Max Resolution 1920 x 1200
Max Transfer Distance 328 ft
Expansion / Connectivity
Interfaces 1 x USB keyboard
1 x DVI
1 x USB mouse
1 x audio – mini jack
1 x microphone – mini jack
1 x RS-232 – DB-9
1 x USB
Miscellaneous
Cables Included 1 x keyboard / mouse / video / audio cable
Power
Power Device External power adapter
Dimensions & Weight
Width 4.8 in
Depth 7.2 in
Height 1.1 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 – 80% (non-condensing)
Packaging Info
Package Weight 5.05 lb
Box Dimensions (LxWxH) 12.8 x 8.6 x 3.9″
