ATEN USB DVI HDBaseT KVM Mini Extender with Audio

Add to Wishlist
Key Features
  • Compact Aluminum Transmitter & Receiver
  • 1920 x 1200 up to 328′ over Cat 5e/6/6a
  • Transmit Video, Audio, USB, and RS-232
  • DVI-D Input and Output
  • USB Type-B Input / 2 x USB Type-A Output
  • Mic/Line Stereo Audio Connectors

AED2,699.99

Add to Wishlist

The ATEN USB DVI HDBaseT KVM Mini Extender transmits up to 1920 x 1200 resolution video, stereo audio, and USB as well as RS-232 signals up to 328′ over Cat 5e, 6, and 6a cables. The extender is suitable for applications requiring remote access, such as transportation control centers, medical facilities, industrial warehouses,

ATEN CE611 Overview

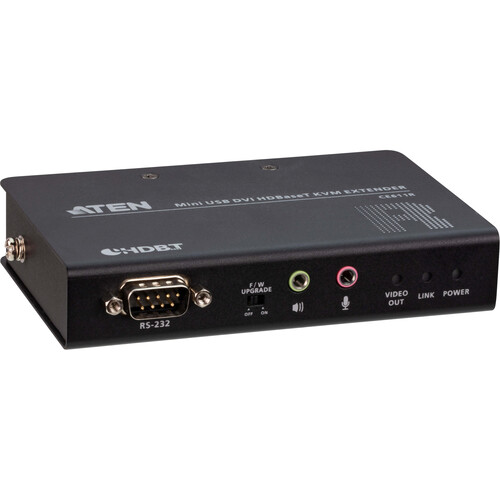

The ATEN USB DVI HDBaseT KVM Mini Extender transmits up to 1920 x 1200 resolution video, stereo audio, and USB as well as RS-232 signals up to 328′ over Cat 5e, 6, and 6a cables. The extender is suitable for applications requiring remote access, such as transportation control centers, medical facilities, industrial warehouses, and extended workstations. The two units have a compact form factor and an aluminum housing for easier and more reliable installation and use.

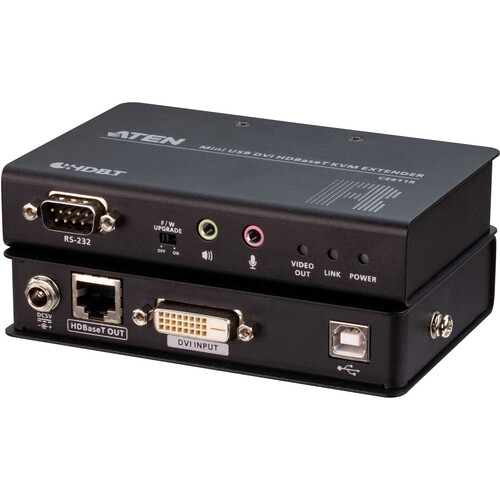

The transmitter features one DVI-D and one USB Type-B port, and the receiver has a DVI-D and two USB Type-A ports. Both units offer mic/line stereo audio connectors. Serial RS-232 control is supported over a DB-9 connector on each unit.

Transmission Distances
1920 x 1200 and 1600 x 1200 up to 328′ over a Cat 6/6a cable
1920 x 1080 up to 328′ over a Cat 5e/6/6a cable
1920 x 1200 and 1600 x 1200 up to 295′ over a Cat 5e cable
Other Features
Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
USB 2.0 full speed ports for fast transmission speeds for KVM peripherals
Built-in 8kV / 15kV ESD protection
Status detection and LED indicators
Locking DC power supply jacks
SKU: CE611 Category: Tag:

ATEN CE611 Specs

General
Inputs/Outputs Transmitter:
1 x DVI-DInput
1 x USB-BInput
1 x 1/8″ / 3.5 mm (Audio)Input
1 x 1/8″ / 3.5 mm (Audio)
1 x RJ45Output
1 x DE-9/DB-9 (RS232) Female
Receiver:
1 x DVI-DOutput
2 x USB-AOutput
1 x 1/8″ / 3.5 mm (Audio)Output
1 x 1/8″ / 3.5 mm (Audio)
1 x DE-9/DB-9 MaleOutput
1 x RJ45Input
Supported Resolutions 1920 x 1200
1920 x 1080
1620 x 1200
Maximum Transmission Distance 328′ / 100.0 m
Transmission Method CAT5e/CAT6 Cable
Power
DC Input Power 5 VDC
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 80%
Physical
Material of Construction Metal
Dimensions 5.0 x 3.4 x 1.0″ / 12.8 x 8.7 x 2.5 cm (Transmitter)
5.0 x 3.4 x 1.0″ / 12.8 x 8.7 x 2.5 cm (Receiver)
Weight 12.3 oz / 350.0 g (Transmitter)
12.0 oz / 340.0 g (Receiver)
Packaging Info
Package Weight 2.35 lb
Box Dimensions (LxWxH) 11.3 x 6.9 x 2.4″
