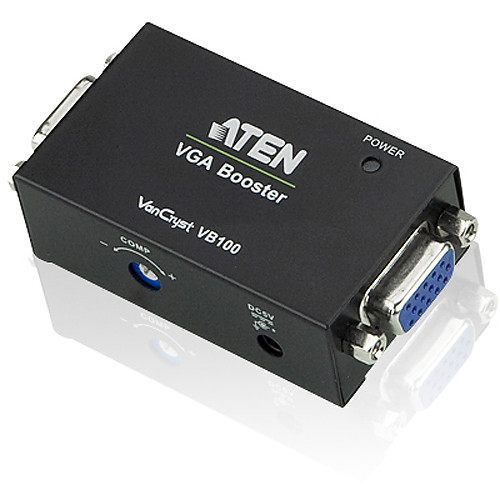

ATEN VB100 VGA Booster

Add to Wishlist
Key Features
  • Extends 1280×1024 VGA Signals up to 230′
  • Extends 1920×1200 VGA Signals up to 98′
  • Manual Gain Control
  • Place at Either End of the Signal Chain
  • LED Power and Source Indication

AED299.99

Add to Wishlist

Extend VGA signals up to 230′ away with the ATEN VB100 VGA Booster. Its simple design features one VGA input and one VGA output, plus a power connection for the included power supply. A manual gain control adjusts the image to ensure optimal picture quality, and a status LED shows when power and source are connected. 1920 x

ATEN VB100 Overview

Extend VGA signals up to 230′ away with the ATEN VB100 VGA Booster. Its simple design features one VGA input and one VGA output, plus a power connection for the included power supply. A manual gain control adjusts the image to ensure optimal picture quality, and a status LED shows when power and source are connected. 1920 x 1200 signals can be extended up to 98′ from source to display, while lower resolution signals up to 1280 x 1024 can be extended the full 230′. As a simple extender, the VB100 can be placed at either end of the signal chain, either near the source or the display.

SKU: VB100 Category: Tag:

ATEN VB100 Specs

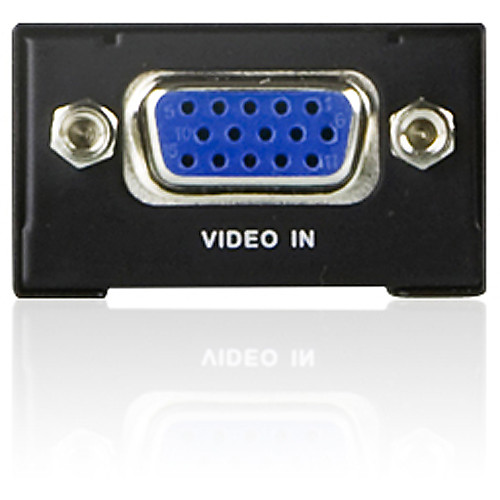

Input 1 x VGA
Impedance: 75 Ohms
Output 1 x VGA
Impedance: 75 Ohms
Video Bandwidth 300 MHz (maximum)
Maximum Video Resolution 1920 x 1200 (up to 98′ / 30 m)
1280 x 1024 (up to 230′ / 70 m)
Power Consumption 0.9 W (5 VDC, 0.2 A)
Environmental Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Humidity: 0-80% RH, non-condensing
Dimensions 1.4 x 2.7 x 0.8″ / 3.5 x 6.9 x 2.1 cm
Weight 2.1 oz / 60 g
Packaging Info
Package Weight 0.405 lb
Box Dimensions (LxWxH) 6.35 x 4.7 x 2.3″
