ATEN VM1600 | 16×16 Modular Matrix Switch

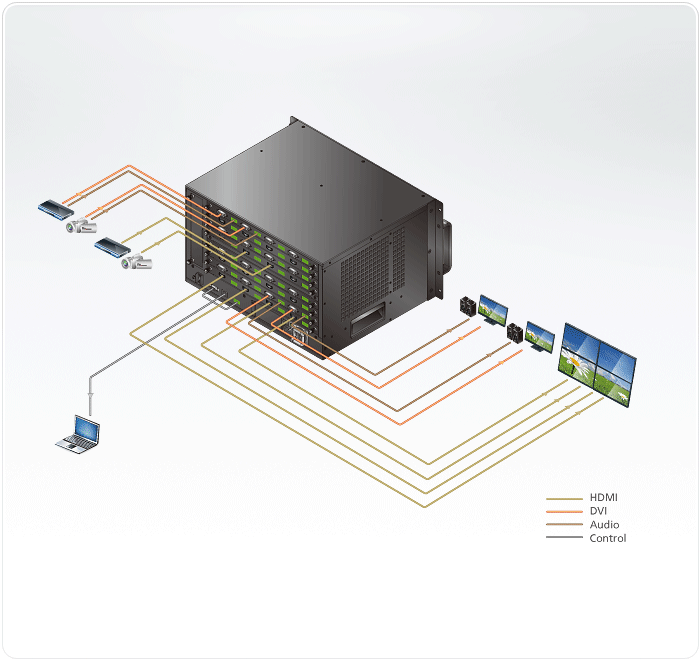

The VM1600 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM1600 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections, with an option to select an EDID Mode that yields the best resolution across different monitors.

VM1600 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion, it allows any combination of digital video formats, such as DVI (VM7604 / VM8604) and HDMI (VM7804 / VM8804), thus making it ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers and any application that requires customizable high speed A/V signal routing.

Features:

• Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix Solutions
• Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA and WUXGA (1920 x 1200)
• HDCP 1.4 Compatible
• Seamless Switch™ – provides continuous video streams, real-time switching and stable signal transmission*
• EDID Expert – selects optimum EDID settings for smooth power-up and highest quality display
• Built-in EDID wizard – provides an easy way to customized EDID settings
• Easily switch between multiple sources and multiple displays
• Hardware Configuration:  Front panel pushbuttons and RS-232 serial port
• System Operation: Browser-based Graphical User Interface (GUI) and Telnet
• Built-in bi-directional RS-232 serial remote port for high-end system control
• Hot-pluggable: Modular Fan Design, Power Module and Easy Intergration of I/O boards
• Video wall – provides up to 32 connection profiles that you can customize into layouts using the web GUI
• Optional redundant power supply for continuous operation
• Firmware upgradeable via web
• Rack Mountable
• Built-in scaler on each output port to support the scaling function for different video resolutions
