ATEN VM7804 | Modular Matrix Switch 4 Port HDMI Input Card
Availability:
30 in stock
AED3,599.00
30 in stock
ATEN VM7804 | Modular Matrix Switch 4 Port HDMI Input Card

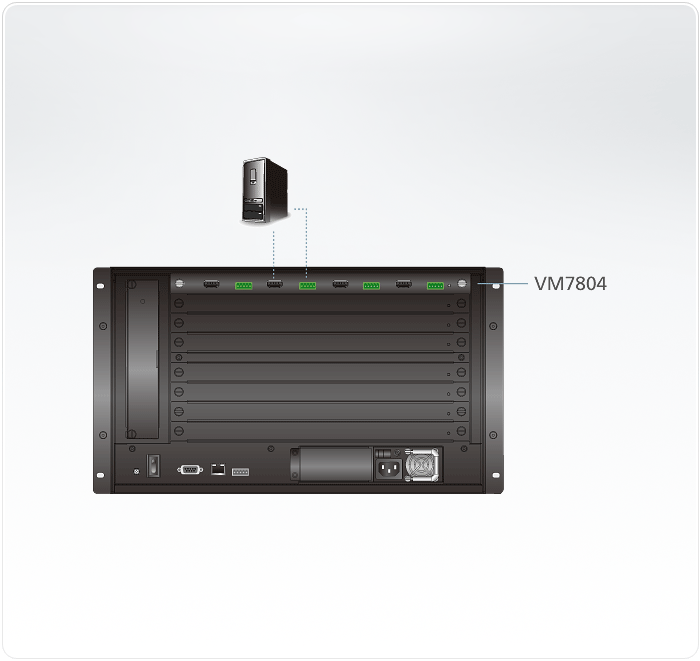

The VM7804 4-Port HDMI Input Board is offers an easy way to route any of 4 audio/video sources to any of 4 displays, in combination with an ATEN Modular Matrix Switch.
The VM7804 also supports HDMI audio can be extracted and stereo audio that can be embedded.
Features:
- Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
- HDMI (3D, Deep Color); HDCP 1.4 Compatible
- Built-in scaler on each output port to support the scaling function for different video Resolutions
- Consumer Electronics Control (CEC) support
- EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
- Built-in EDID wizard – provides an easy way to customized EDID settings
- Hot-swappable design for easy integration of I/O boards
- Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
Specifications:
| Mechanical | |
| Width | 9.4 in. (23.8 mm.) |
| Depth | 13.9 in. (35.2 mm.) |
| Height | .9 in. (2.28 mm.) |
| Weight | 1.2 lbs. (.55 kg.) |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to -60°C |
| Humidity | 0-80% RH non-condensing |
| Power | DC5V, 7W |
| Connection | |
| HDMI Out | 4 x HDMI Type A Female (Black) |
| Audio Out | 4 x captive screw connector, 5 pole |
| Weight | 0.55 kg |
|---|
