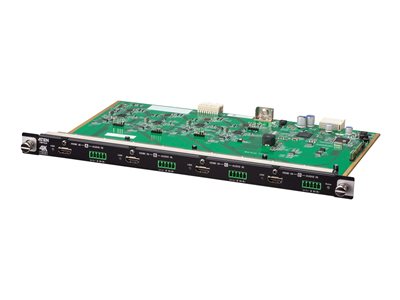

ATEN VM7824 4-Port True 4K HDMI Input Board – expansion module – HDMI x 4
ATEN VM7824 4-Port True 4K HDMI Input Board – Expansion module – HDMI x 4 – for VanCryst VM1600A, VM3200, VM3250, VS182B, VS184B
AED6,599.00
The VM7824 is a True 4K HDMI input board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI audio/video sources to 4 displays with True 4K high-definition images support. In addition to the HDMI interface that carries digital A/V signal, the VM7824 also provides 4 stereo audio input ports that enable stereo audio embedding.
All of ATEN’s VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
| General | Details |
|---|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking | |
| Ports | HDMI x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 18 Gbps |
| Features | HDCP compliant, 3D support, 4K resolution support, EDID Expert, Seamless Switch, FrameSync |
| Compliant Standards | HDCP 2.2, CEC |
| Expansion / Connectivity | 4 x HDMI input – 19 pin HDMI Type A <br> 4 x audio line-in – 5 pin terminal block |
| Dimensions & Weight | Width: 9.4 in <br> Depth: 13.9 in <br> Height: 0.9 in <br> Weight: 19.4 oz |
| Environmental Parameters | Min Operating Temperature: 32 °F <br> Max Operating Temperature: 104 °F <br> Humidity Range Operating: 0 – 80% (non-condensing) |
| Compatibility Information | Designed For: ATEN VanCryst VM1600A, VM3200, VM3250, VS182B, VS184B |
