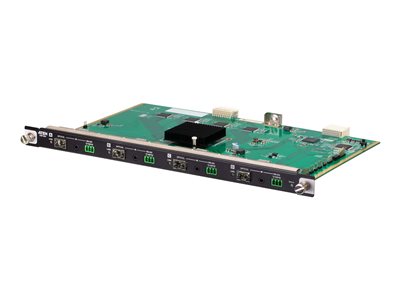

ATEN VM8584K2 – expansion module – 10 Gigabit SFP+ x 4 + IrDA x 4 + RS-232 x 4
ATEN VM8584K2 – Expansion module – 10 Gigabit SFP+ x 4 + IrDA x 4 + RS-232 x 4 – 1310 nm
AED20,999.00
The VM8584 4-Port 10G Optical Output Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot.
| General | Details |
|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking |
| Ports | 10 Gigabit SFP+ x 4 + IrDA x 4 + RS-232 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 10.3 Gbps |
| Optical Wave Length | 1310 nm |
| Status Indicators | Status, link |
| Features | HDCP compliant, 3D support, 4K resolution support, EDID Expert, bi-directional IR |
| Compliant Standards | HDCP 2.2, RoHS, CEC |
| Expansion / Connectivity | 4 x video/audio output – SFP+ <br> 4 x IrDA output – mini-phone 3.5 mm <br> 4 x RS-232 output – 3 pin captive screw |
| Miscellaneous | Included Accessories: 4 x SFP+ single-mode transceivers |
| Power | Power Consumption Operational: 22.96 Watt |
| Dimensions & Weight | Width: 9.4 in <br> Depth: 13.9 in <br> Height: 0.9 in <br> Weight: 20.1 oz |
| Environmental Parameters | Min Operating Temperature: 32 °F <br> Max Operating Temperature: 104 °F <br> Humidity Range Operating: 0 – 80% (non-condensing) |
