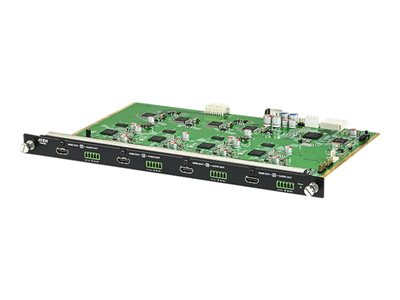

ATEN VM8804 HDMI Output Board – Expansion module – HDMI x 4 – for VanCryst VM1600A, VM3200, VM3250
7,299.00 د.إ
The VM8804 4-Port HDMI Output Board is offers an easy way to route any of 4 audio/video sources to any of 4 displays, in combination with an ATEN Modular Matrix Switch.
The VM8804 supports Seamless Switch technology that provides video switching in real-time, a built in scaler that handles different video resolutions, and EDID Expert technology for fast smooth switching between displays, giving you the perfect viewing experience. The VM8804 also supports HDMI audio can be extracted and stereo audio that can be embedded.
| Category | Details |
|---|---|
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking | Ports |
| HDMI x 4 | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Data Transfer Rate | 6.75 Gbps |
| Features | HDCP compliant, 3D support, EDID Management |
| Expansion / Connectivity | Interfaces |
| 4 x HDMI output – 19 pin HDMI Type A<br>4 x audio line-out – 5 pin terminal block | |
| Miscellaneous | Compliant Standards: RoHS, WEEE |
| Power | Power Consumption Operational: 23.13 Watt |
| Dimensions & Weight | Width: 9.4 in<br>Depth: 13.9 in<br>Height: 0.9 in<br>Weight: 20.46 oz |
| Environmental Parameters | Min Operating Temperature: 32 °F |
| Max Operating Temperature: 104 °F | |
| Humidity Range Operating: 0 – 80% (non-condensing) | |
| Compatibility Information | Designed For: ATEN VanCryst VM1600A, VM3200, VM3250 |
