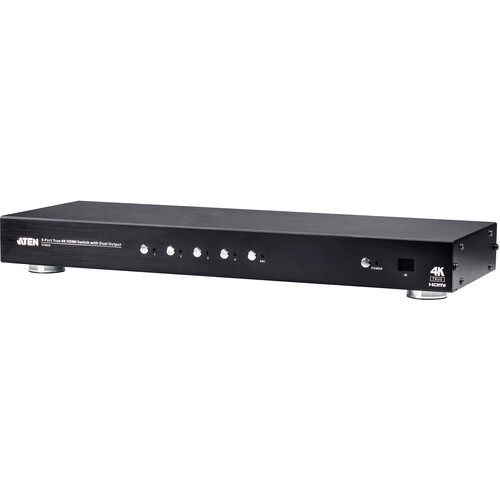

ATEN VS482B 4×2 4K HDMI 4K Switcher


  • 4 x HDMI 2.0 In / 2 x HDMI 2.0 Out
  • Supports up to DCI 4K60 4:4:4 Video
  • Supports HDR, 3D & Deep Color
  • ARC Audio Output via Single HDMI Cable
  • Push-Button, IR Remote & RS-232 Control
  • CEC & HDCP 2.2 Compliant
  • EDID Expert Function
  • Rack Mountable

1,699.00 د.إ

TheĀ VS482B 4×2 4K HDMI 4K SwitcherĀ fromĀ ATENĀ enables you to connect up to four HDMI sources to up to two HDMI displays using push-button, IR, or RS-232 control. This unit supports up to DCI 4K60 video with high dynamic range (HDR) imaging and HDMI 2.0. The Audio Return Channel (ARC) function enables you to send embedded audio to your television, soundbar, or receiver using a single HDMI cable.

4 x HDMI Input to 2 x HDMI Output
This component enables you to switch between up to four HDMI A/V sources for output to up to two HDMI displays. It automatically switches to a newly plugged-in source and has an EDID Expert function, which selects the optimal display and power settings for your output.
Up to DCI 4K60 Video Resolution
Support for video resolutions up to DCI 4K60 4:4:4 provides optimal image quality and HDR (high dynamic range) compatibility created rich, nuanced images.
Audio Functions
The Audio Return Channel (ARC) function uses a single HDMI cable to send your audio to a compatible receiver, television, or soundbar. Embedded HDMI audio can be extracted via the stereo audio and digital audio outputs.
Versatile Control Options
The VS482B offers front-panel button, IR remote, and RS-232 control options plus an onscreen display (OSD) of settings and configurations.
SKU: VS482B Category: Tag:
Processing
Switching Type
IR Remote, Pushbutton, Software
Processing Resolution
DCI 4K at 60
Color Processing
4:4:4
Input
Video Inputs
4x HDMI (2.0)
Input Video Format
HDMI (4:4:4)
DCI 4K at 60 fps
UHD 4K at 60 fps
Embedded Audio Input
HDMI
Output
Video Outputs
2x HDMI (2.0)
Output Video Format
HDMI (4:4:4)
DCI 4K at 60 fps
Audio Outputs
1x 2RCA Analog
1x TOSLINK
1x RCA
Embedded Audio Output
HDMI
Connectivity
Other I/O
1x DE-9/DB-9 RS-232
1x 1/8″ / 3.5 mm IR
HDCP Support
Yes, Version 2.2
HDR Support
Yes, HDR10
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x Barrel Input
Power Consumption
5 VDC (29 W)
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 80%
General
Dimensions
17.21 x 6.25 x 1.7″ / 43.72 x 15.88 x 4.4Ā cm
Weight
4.76Ā lb / 2.16Ā kg
Packaging Info
Package Weight
6.14 lb
Box Dimensions (LxWxH)
21.1 x 9.4 x 4.8″
