Atlas Sound MW100BP-OE Wireless Cardioid Earset Microphone System (566 to 586 MHz)

Add to Wishlist

2,899.00 د.إ

Add to Wishlist
Key Features
  • For Presenters and Instructors
  • Cardioid Earset Mic/Bodypack Transmitter
  • True-Diversity Receiver
  • 16 Hours on Two AA Batteries

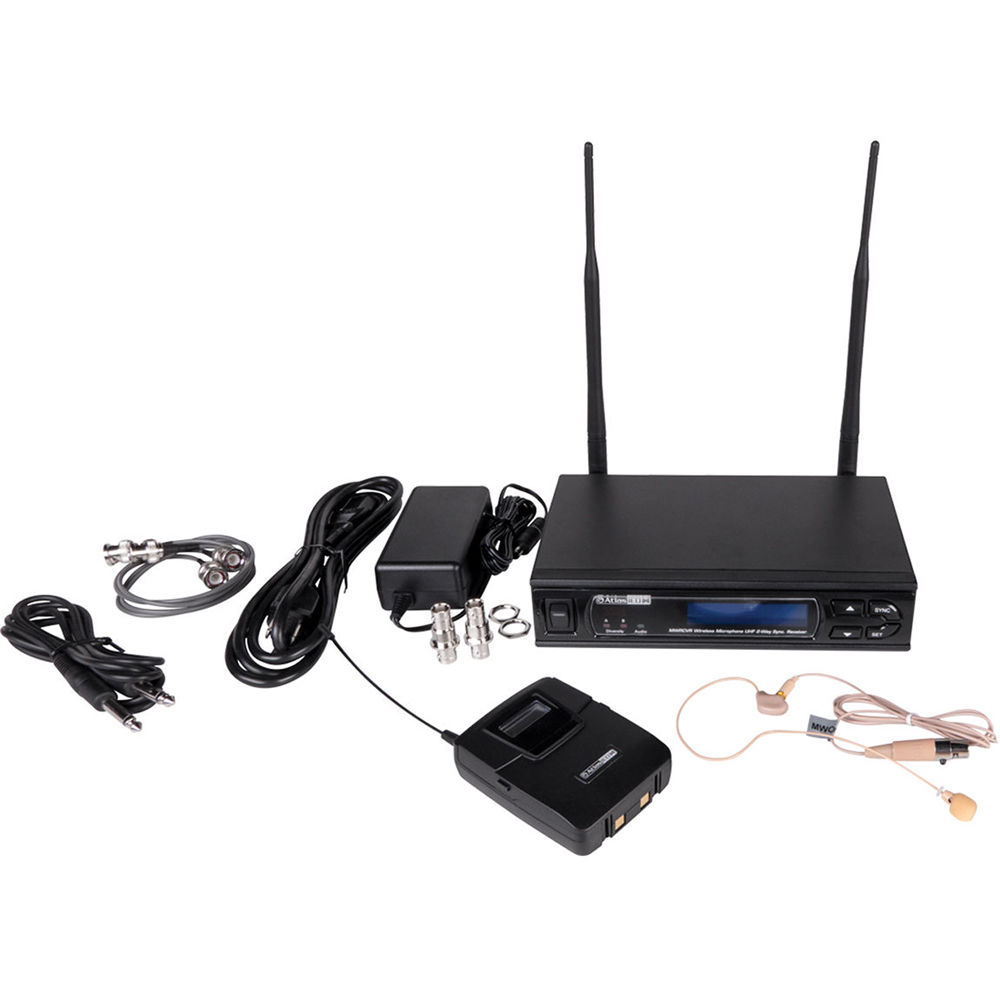

Atlas Sound MW100BP-OE Overview

The Atlas Sound MW100BP-OE is a versatile wireless earset microphone system that offers presenters, lecturers, or instructors quality sound and dependable performance for presentations and events in classrooms, conference rooms, and lecture halls.

The MW100BP-OE features a half-rack receiver that can be either placed on a table or rackmounted (rackmount kit available separately) in portable flight cases or for permanent installations. Quick to set up at the press of a button, the receiver automatically scans a 20 MHz UHF tuning range with 100 selectable frequencies to locate a clean RF channel that’s free from interference. Just press the synchronization button on the bodypack transmitter to link the receiver with the transmitter via IR and you’re ready to go.

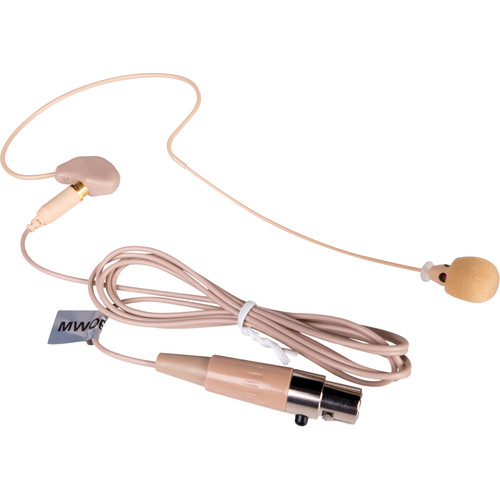

The MWOEM cardioid earset mic is lightweight and comfortable to wear. The microphone is discreet, stable, and easy to place over either ear. Its proximity to the speaker’s mouth delivers enhanced speech intelligibility compared to a lavalier mic. The cardioid polar pattern helps to reject unwanted background sound, ideal for use in environments with loud sound reinforcement. The mic plugs into the MWBPT bodypack transmitter, which provides up to 16 hours of continuous use with two AA batteries.

The system utilizes true-diversity reception to minimize dropouts and deliver clear audio at a range up to 330′.

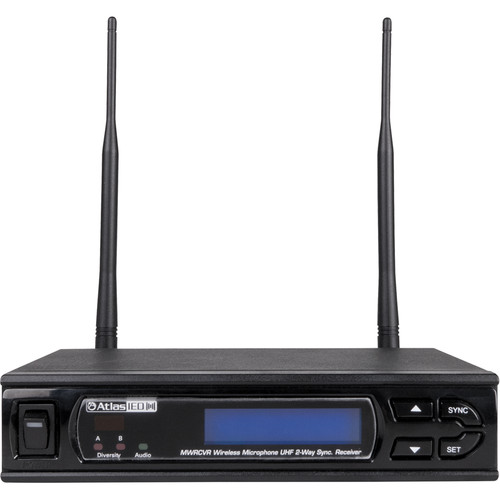

MWRCVR Wireless Receiver

  • Balanced XLR and unbalanced 1/4″ TS output connectors with selectable mic- or line-level output to accommodate proper hookup to mixing consoles, PA systems, and audio recorders
  • Multifunction LCD screen makes critical information such as channel/frequency, volume level, and signal strength easily visible
  • Patented technology for two-way data transfer between transmitter and receiver ensures a reliable reception.
  • Two detachable antennas
  • Adjustable volume level

MWBPT Bodypack Transmitter

  • Four-pin mini-XLR input and high-/low-impedance gain control to accommodate headset/lavalier microphones or instruments such as electric guitar or bass
  • Multifunction LCD screen displays crucial information such as channel/frequency, battery status, and battery type selection
  • Can be powered via two AA alkaline or NiMH batteries (available separately)
  • Charging contacts on the bottom panel let you recharge NiMH batteries via the Atlas Sound MWCHGR charger (available separately) without having to remove the batteries from the transmitter
SKU: MW100BP-OE Category: Tag:

Atlas Sound MW100BP-OE Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 100
Included Transmitters 1 x Bodypack
Diversity True Diversity
RF Frequency Band 566 to 585.5 MHz
RF Bandwidth 25 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1′ / 100 m (Line of Sight)
Max Systems per Setup 2
Encryption None
Receiver
Form Factor Tabletop / Rackmount
Mounting Options Rackmount (with Optional Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, BNC (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Female Balanced Mic/Line Output
1 x 1/4″ TS Female Unbalanced Mic/Line Output
Audio Output Level XLR Output:
+10 dBm (Line Level)
XLR Output:
-18 dBm (Mic Level)
1/4″ Output:
+4 dBm (Line Level)
1/4″ Output:
-24 dBm (Mic Level)
Impedance XLR Output:
600 Ohms (Balanced)
1/4″ Output:
600 Ohms (Unbalanced)
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 1.6 A, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x LED (AF Level)
1 x LED (Diversity)
1 x LCD (Channel, Output Level, RF Level)
Dimensions 7.9 x 1.7 x 5.9″ / 200 x 44 x 150 mm (without Antennas)
Weight 1.4 lb / 635 g
Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power 35 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Input
Auto-Level Control No
Sync Method IR
Antenna 1 x 1/4 Wave Flexible Whip, Fixed
Power Requirements Battery
Battery Type 2 x AA (Not Included)
Approx. Battery Life 16 Hours (Alkaline)
Display & Indicators 1 x LED (Battery Status, Power)
1 x LCD (Audio Level, Battery Status, Channel)
Dimensions 2.5 x 3.3 x 0.9″ / 64 x 84 x 23 mm
Weight 2.7 oz / 77 g
Microphone
Form Factor Earset
Color Beige
Sound Field Mono
Capsule Condenser
Polar Pattern Cardioid
Frequency Range 100 Hz to 18 kHz
SNR 60 dB
Impedance 2.2 Kilohms
Sensitivity -50 dB
Output Connectors 1 x TA4/Mini XLR 4-Pin Female
Operating Voltage 1.5 to 10 V
Weight 0.6 oz / 17 g
