AtlasIED 20A Power Conditioner and Sequencer

Add to Wishlist

Quick tech specs

  • 9 Total 20A Outlets
  • 1 Rear Panel Unswitched Outlet
  • Sequenced Output Trigger
  • Dual Clamping Spike and Surge Suppression
  • 6 Rear Panel Outlets
  • 2 Front Panel Unswitched Outlets
  • Radio Frequency (RFI) and Electromagnetic Interference (EMI) Filters
  • Front Panel Digital AC Mains Voltmeter

AED5,199.00

Add to Wishlist

Know your gear

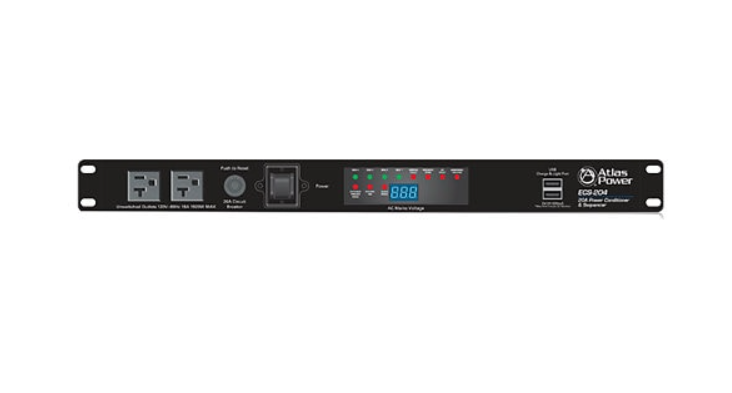

The AtlasIED ECS-204 is a dependable power conditioner and sequencer designed for professional environments. With a power capacity of 2400 watts and a max electric current of 20 A, it ensures efficient power distribution and management. The unit is equipped with a robust surge suppression system rated at 2000 Joules, protecting connected equipment from electrical surges and spikes, thanks to its advanced Metal Oxide Varistor Technology (MOV) and Dual Clamping Suppression technology. In addition, the ECS-204 features user-friendly LED indicators and a digital voltmeter, providing real-time monitoring of power consumption and voltage levels. Built for versatility, this rack-mountable unit is compliant with UL 60065 standards and offers a range of output connectors, including USB Type-A and XLR, to accommodate various devices. The product operates efficiently within a temperature range of 5 °C to 35 °C and maintains performance with a humidity range of 5 – 95% RH. The emergency power off (EPO) function ensures added safety during unforeseen situations, while the included circuit breaker provides reliable circuit protection. The reset button further facilitates easy operational management, making the AtlasIED ECS-204 an essential component for any reliable power management setup.
SKU: ECS-204 Category: Tag:
Category Attribute Value
Overview Brand AtlasIED
Product Line AtlasIED
Model ECS-204
Manufacturer Atlas Sound
Connectivity Interface Provided 1 x EPO (emergency power off), 2 x management – RJ-45
Power Clamping Level 460 volt
Emergency Power Off Digital voltmeter, Dual Clamping Suppression (DCS) technology, Emergency Power Down (EPD), Extreme Voltage Shutdown (EVS), LED display, LED indicators, Metal Oxide Varistor Technology (MOV)
Frequency 60 hertz
Input Voltage Range AC 102 – 132 V
Max Input Current 20 ampere
Max Spike Current 3000 ampere
Max Spike Voltage 6000 volt
Output Connector Quantity 9
Power Consumption Operational 12 watt
Power Output Connectors Details 1 x XLR, 2 x 4 pin USB Type A – 5 V 500 mA, 9 x power NEMA 5-15R (surge)
Power Provided 2400 watt
Required Voltage AC 120 volt
Surge Suppression Yes
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 95 degree Fahrenheit
Min Operating Temperature 41 degree Fahrenheit
Operating Humidity 5 – 95% RH (non-condensing)
Protection Type Circuit breaker
Product Information Features EMI filtering, Reset button, RFI filtering
Packaged Quantity 1
Product Type Power conditioner / sequencer
Subcategory Surge protection and power conditioning
Included Items Included Accessories Cable retainer
Dimensions & Weight Height 1.8 inch
Height (Rack Units) 1
Weight 9.99 lbs
Width 18.9 inch
Depth 8.5 inch
Physical Characteristics Color Black
Color Category Black
