AtlasIED 8″ In-Wall/In-Ceiling PoE+ IP Loudspeaker System with Microphone, LED Display and Flasher

The AtlasIED IPX Series IP-8SCMF indoor wall mount IP speaker with display, talkback, and flasher leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.

AtlasIED IP-8SCMF registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements & intercom, while leveraging the WAN/LAN Network Architecture.

When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

• IP-8SCMF indoor speakers are fitted with a dual cone 8″ (205mm) speaker that is optimized for voice intelligibility.

• The grills for the IP-8SCMF+ IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

• While in Standby, the IP-8SCMF displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date. When active, the I8SCMF+ display changes from time to visual notifications by Scrolling text content over the 16 X 64 high-resolution LED digital readout.

• The LED flashers located below the display can be used to alert room occupants of an incoming audio message as well as scrolling text message in accordance with ADA compliance.

• IP-8SCMF includes an omni directional subminiature, electret condenser microphone that is mounted behind the grill’s steel perforation material adjacent to the speaker to allow two-way communication and/or monitoring from the speaker location to any PC or phone handset.

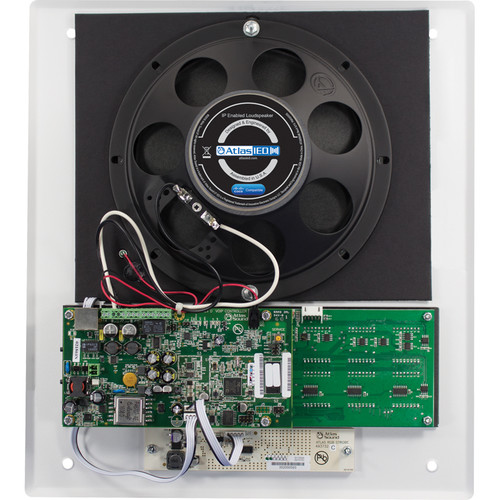

• All Atlas IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.

• The IP-8SCMF features include auto-provisioning and auto-registration. This is an easy and timesaving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed

• Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third-party systems.
