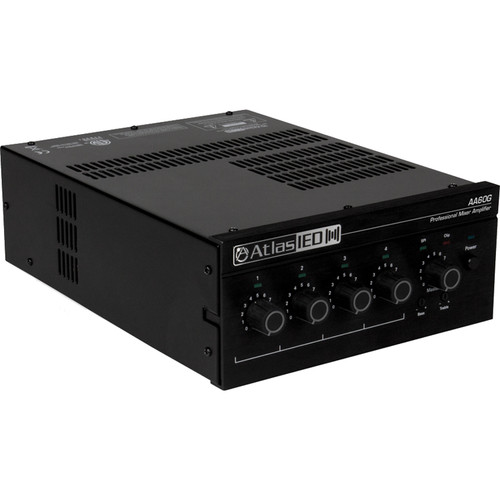

AtlasIED AA60G 4-Input 60W Mixer Amplifier with Global Power Supply

Add to Wishlist
  • Paging, Background Music, Music on Hold
  • 60W into 70V, 100V, or 8 Ohms Output
  • Balanced Mic/Line Input, 15V Phantom
  • 3 Unbalanced, Summing Line-Level Inputs
  • Zone 2 and Line-Level Outputs
  • Priority Muting by Voice Threshold
  • Dip Switch Matrix
  • Universal Power Supply

2,499.00 د.إ

Add to Wishlist

Powering 60W into 70V, 100V, and 8 Ohms systems, the Atlas Sound AA60G is a four-input mixer amplifier designed for distributed business paging, background music systems (BGM), small-to-medium speech-privacy systems, or any situation in which Music on Hold (MOH) plus paging is required. It accommodates a variety of input sources including paging microphones, CD players, digital music players, satellite receivers, and more.

The AA60G is equipped with a balanced microphone/line input that provides 15V phantom power to condenser mics and three, stereo unbalanced line inputs summed to mono. In addition to the amplifier outputs, it offers a pre-master, level-line output to connect the signal to a secondary amplifier and a Zone 2 output, which allows you to play music over a phone line while the caller is on hold.

You can maximize the AA60G’s versatility using the configuration DIP switch to set the priority or VOX (Voice-Activated) background music muting modes or to create a Zone 2 mix from any or all the input sources. Other features include bass and treble controls on the master output, signal presence LED indicators, and a universal power supply.

Key Features
  • Ideal for paging, background music, and Music-on-Hold applications
  • Accommodates a variety of input sources including paging microphones, CD players, and digital music receivers
  • Four inputs, each with a front panel volume control and a single output channel
  • 60W into 70V, 100V, or 8 Ohms output
  • Output power matches AtlasIED FAP, SM, SD, and GD Series loudspeakers (available separately)
  • Five-terminal Euroblock connector for balanced mic/line input
  • Three unbalanced stereo line-level RCA-type connectors, summed to mono
  • Priority muting by VOX or external switch
  • Dip switch selectable matrix allows the creation of a Zone 2 mix from any or all the input sources
  • Secondary Zone 2 output 1W & 600 Ohms/MOH (Music on Hold)
  • Bass and treble controls on master output
  • Pre-master, line-level output to connect signal to a secondary amplifier
  • Universal AC power supply for use in any 120 to 240V country
  • 15V phantom power for condenser microphones
  • Signal presence LED indicators
SKU: AA60G Category: Tag:
Number of Channels
3
Amplifier Power Rating
8 Ohms / 70 V / 100 V:
60 W (1 kHz, 0.5% THD)
Amplifier
Form Factor/Type
Tabletop
Number of Channels
3
Amplifier Power Rating
8 Ohms / 70 V / 100 V:
60 W (1 kHz, 0.5% THD)
Performance
Frequency Response
50 Hz to 20 kHz ±1 dB
Input Sensitivity
Mic:
3 mV
Line:
800 mV
RCA:
400 mV
I/O Impedance
Mic Input:
2.2 Kilohms
Line Input:
10 Kilohms
RCA Input:
10 Kilohms
Output Level
Line Output:
1 V (10-Kilohm Load)
SNR
Mic:
> 58 dB
Line:
> 60 dB
Telephone:
> 60 dB
Aux:
> 78 dB
THD+N
< 0.5% (at Rated Power, 1 kHz)
< 0.1% (at 5 W, 1 kHz)
Crosstalk
-82 dB (1 kHz)
Connectivity
Phantom Power
15 VDC
Power
AC Input Power
Universal:
100 to 240 VAC, 50 / 60 Hz
Power Consumption
150 W
Physical
Cooling
Convection
Operating Temperature
68 to 104°F / 20 to 40°C
Storage Temperature
-4 to 185°F / -20 to 85°C
Operating Humidity
0 to 95%
Dimensions
8.2 x 3.5 x 11.6″ / 210.0 x 90.0 x 295.0 mm
Weight
9.4 lb / 4.3 kg
Packaging Info
Package Weight
12.43 lb
Box Dimensions (LxWxH)
15.65 x 11.05 x 6.95
