AtlasIED Atmosphere 4-Zone Audio Processor

Add to Wishlist
Key Features
  • Control Unit for AZM Audio Systems
  • Powerful DSP I/O Processing
  • Built-In Messenger/Virtual Controller
  • Bell Scheduler
  • Web Control Interface via URL/QR Code
  • RCA and Euroblock I/O
  • RJ45 Ports for up to 16 Controllers
  • High-Priority GPI Alarm System Input
  • Built-In Wi-Fi Support
  • Autonoise Compensation

6,299.00 د.إ

Add to Wishlist

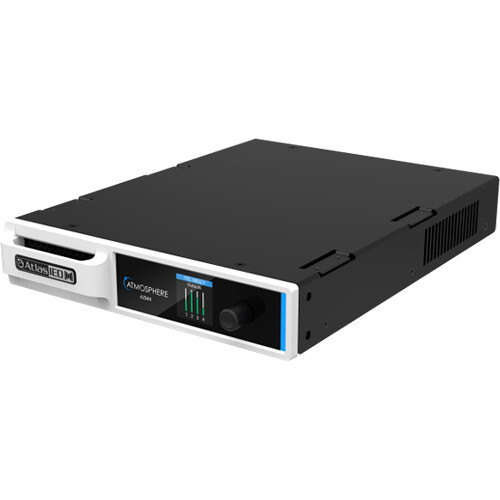

Built as the beating heart of an Atmosphere distributed audio control system, the Atmosphere AZM4 from Atlas Sound is a 6-input, 4-output, 4-zone audio processor with powerful DSP I/O processing and comprehensive Euroblock and RCA connectivity for a wide range of configurations and spaces. With features like a built-in message player, virtual wall controllers, auto-adaptive noise compensation, room combine, GPIO and high-priority alarm system connections, a bell scheduler, and many more, the AZM4 is a processing powerhouse, capable of handling any system, big or small.

The AZM4 is easy to control through its app-less, web-based programming, which can be accessed via QR code or distributed URL, and two RJ45 ports for connection of up to 16 independent control modules and two audio wall plates at distances up to 1000 ft. A dedicated network port and built-in Wi-Fi deliver plenty of flexibility, making the AZM4 ideal for numerous commercial or private spaces including restaurants and bars, hospitality suites, houses of worship, educational institutions, offices, industrial facilities, and corporate headquarters.

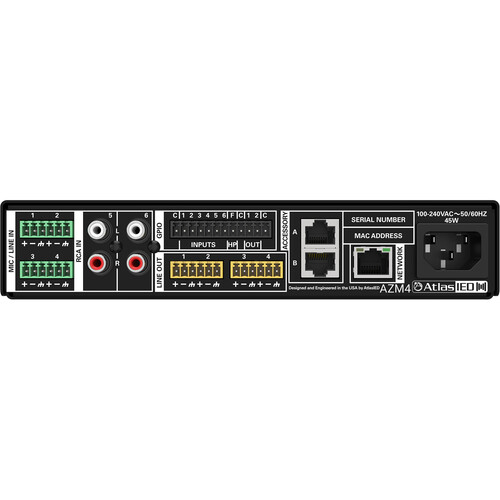

Connectivity
The AZM4 sports enough balanced and unbalanced I/O for any number of scenarios, from multispeaker and multiroom setups  to building-wide message, bell, and alarm systems.

  • Four Euroblock mic/line inputs and two RCA mono-summed pair inputs
  • Four balanced Euroblock output zones
  • Six GPIO Euroblock inputs, one high-priority Euroblock input for alarm systems, two Euroblock GPIO outputs
  • Two non-IP, RJ45 accessory ports for up to 16 control modules total or one audio wall plate accessory each
  • One RJ45 network port
  • Built-in Wi-Fi for tablets and other controlling devices
Web-Based Control
The web-based control software is completely app-less and works on any operating system or web browser including: Windows, Mac, Android, iOS, and Linux. It is also optimized specifically for use on Chrome and Safari.

Access to the virtual wall controller is easy through either a generated QR code or distributed URL address.

DSP Processing
The AZM4 sports plenty of high-quality DSP processing for the inputs and outputs. From numerous EQ options to dynamics processing, the AZM4 is well equipped to dial in an ideal sound for any distributed application.

  • High-pass, parametric, low/high shelf, notch, and programmable low-pass filters on inputs
  • Gate, de-esser, compressor, and autogain on inputs
  • Parametric EQ, tilter filter, low/high shelf, notch, low-pass and high-pass filters, and AtlasIED speaker tuning EQ presets on outputs
  • Ambient noise compression and limiter on outputs
  • Delay and gain correction on outputs
Control Modules and Optional Accessories
The AZM4 unit is compatible with control modules from numerous third-party developers including RTI, Crestron, Extron, and AMX. Six optional, plug-and-play, smart wall plate accessories from Atlas are also supported for scalability, including:

  • Balanced mic/line XLR adapter (A-XLR)
  • 3.5mm adapter (A-RCA)
  • Bluetooth module (A-BT)
  • Single-zone volume controller (C-V)
  • Advanced multizone volume control, source, select, scene recall, and message recall (C-ZSV)
  • Ambient noise sensor (X-ANS)
SKU: AZM4 Category: Tag:
General
Compatibility
Atlas Sound Atmosphere Ecosystem
RTI Control Module
Crestron Control Module
Extron Control Module
AMX Control Module
THD+N
<0.01 % with 0 dB Gain at 1 kHz
Frequency Response
20 Hz to 20 kHz (±5 dB)
Dynamic Range
>108 dB (Unweighted, 20 Hz to 20 kHz)
>118 dB (A-Weighted)
Crosstalk
>-78 dB at 1 kHz
Latency
Euroblock In/RCA In/Euroblock Out: 4.9 ms
Accessory In A or C to Euroblock Out: 5.9 ms
Accessory In B or D to Euroblock Out: 6.7 ms
Max Gain
60 dB
Input Processing
EQ: 24 dB/Oct HP, PEQ, Low / High Shelf, Notch, LP/HP (BW 6, 12, or 24 dB/Oct)
Dynamics: Gate, De-Esser, Compressor, Auto-Gain
Other: Gain, Mixer, Priority Router
Output Processing
EQ: PEQ, Tilt Filter, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, or 48 dB/Oct), Speaker Tuning EQ Presets
Dynamics: Ambient Noise Compression, Limiter
Other: Delay (500 ms), Gain
Display
Panel Type
TFT LCD
Display Size
1.45″
Native Resolution
128 x 128
Touchscreen
No
Inputs / Outputs
Audio I/O
4x Block Line/Mic Input (Balanced)
2x 2RCA Coaxial Line Input (Mono-Summed)
4x Block Line Output (Balanced)
6x Block Aux Input (GPIO)
1x Block Aux Input (High-Priority)
2x Block Aux Output (GPIO)
2x RJ45 Input (Accessory Ports)
1x RJ45 Input/Output (Network Port)
Wireless
Mobile App Compatible
No
Web Access Control
QR Code or Distributed URL Web-Based Control
Power
Power Source
AC Input (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
38 W (Maximum)
Trigger Voltage
GPIO/High-Priority: 1.3 VDC
Phantom Power
+48 VDC at 10 mA
Environmental
Certifications
ANSI, CAN, FCC Part 15 (Class B)
Operating Temperature
32 to 72°F / 0 to 40°C
Physical
Mounting

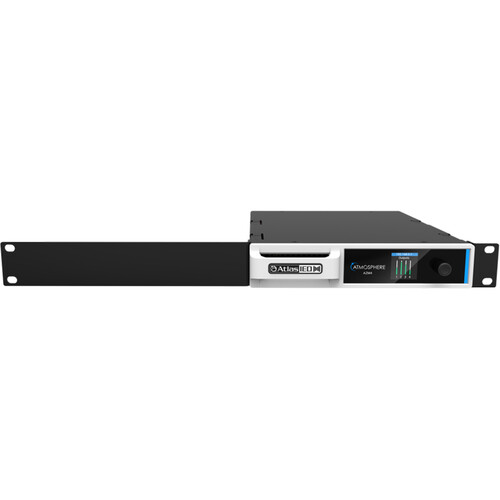

Front: 4x Standard Rackmount Hole (With Adapter)
Color
White
Material of Construction
Metal, Plastic
Dimensions
19 x 11.7 x 1.75″ / 48.3 x 29.7 x 4.45 cm (With Rack Ears, 1 RU)
Weight
4.73 lb / 2.15 kg
