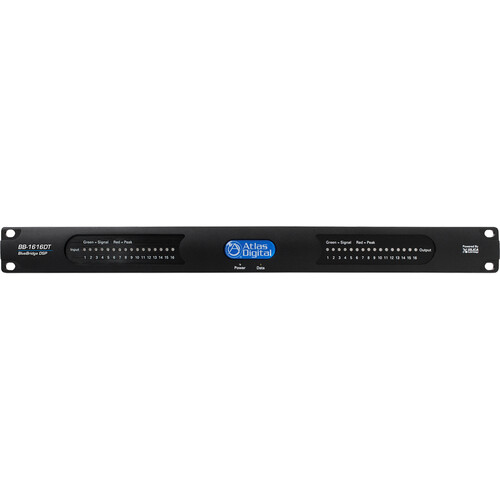

AtlasIED BlueBridge 16 x 16 Networkable DSP Device with Dante

The BlueBridge family of products feature open-architecture, drag-and-drop software that makes them incredibly easy to use. Each model utilizes high-quality THAT Corporation microphone preamps and 24-bit converters to obtain an ultralow noise floor while still maintaining a smooth sound that satisfies the needs of demanding clients, with the flexibility and control a system designer requires.

BlueBridge models use a 40-bit floating point DSP engine to prevent digital clipping that commonly occurs in other DSP products and to obtain maximum speed and power to process advanced algorithms in complex system designs. When connected to a network, each BlueBridge processor on the network will be auto-recognized and controllable. BlueBridge models provide many valuable processing tools including standard mixers, gain sharing auto-mixers, delays, equalizers, level controls, duckers, filters, and dozens of other processing capabilities.

The BB-1616DT incorporates Dante technology and is capable of being integrated into new or existing systems that are using a Dante network. This devices offers 16 channels of self-configuring, true plug-and-play digital audio over an Ethernet network, providing the highest quality audio over existing network infrastructure.

This model includes 16 inputs and 16 outputs using Phoenix-style connectors. BlueBridge additionally works with the Atlas BluePanel software which enables the designer to create custom interfaces that can be accessed via a computer connected to the network.

BluePanel can also be used to program wall controllers including the BB-TOUCH7 touch panel (sold separately), giving the user access to the system’s functionality for volume control, source selection, room combining, or any other function the designer programs. This enables the end user to have some control over the system without having to access the BlueBridge device directly, preventing any unauthorized changes from happening within the device.

The 16×16 BlueBridge is equipped with several DSP audio processing modules for robust, ultra-high speed digital audio processing. This includes:

• EQ Modules: Parametric, Graphic, and Anti-Feedback
• Crossover Modules: Butterworth, Linkwitz Riley, Bessel (6 to 48 dB per Octave)
• Filter Modules: High Shelf, Low Shelf, All Pass
• Mixer Modules: Gain Sharing Auto Mixer, Gating Auto Mixer, Matrix Mixer, Standard Mixer, LR Mixer, LCR Mixer
• Generator Modules: Sine Tone, Sign Sweep, White, Pink
• Dynamics Modules: Compressor, Expander, Limiter, Ducker
