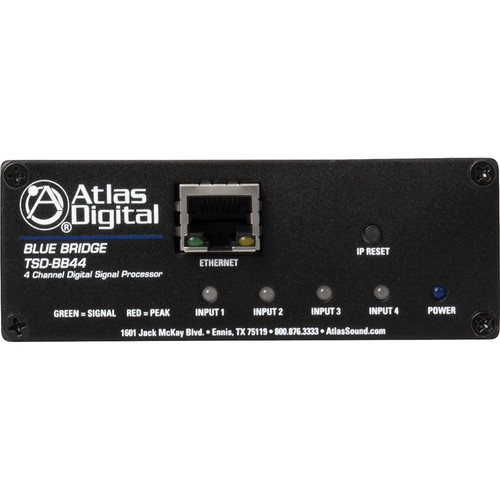

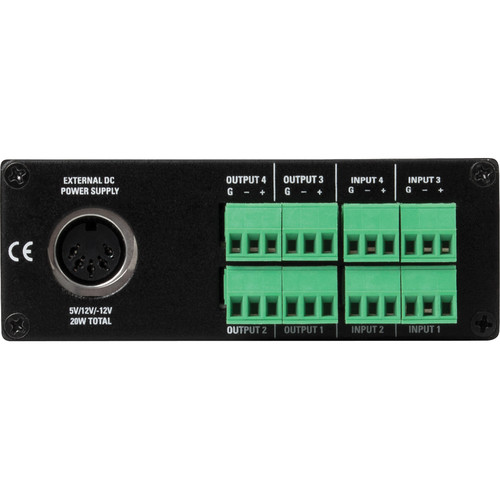

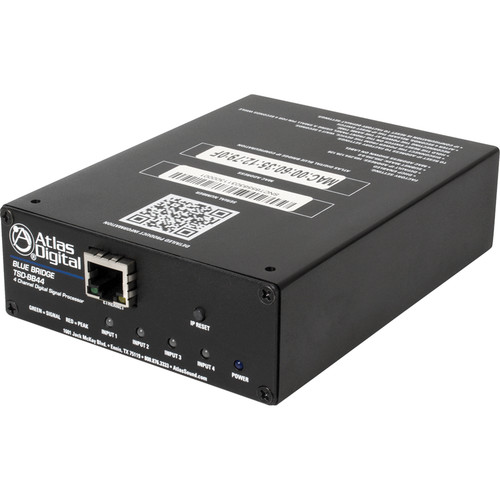

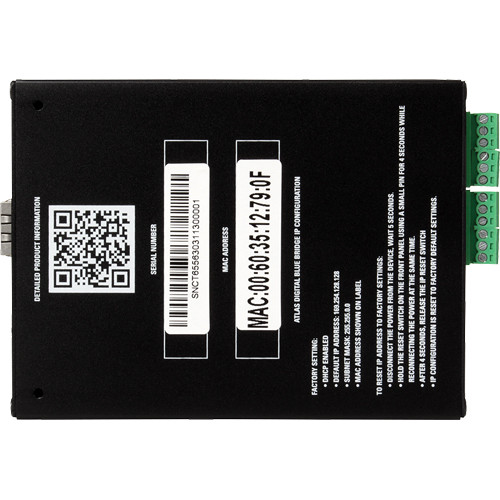

AtlasIED TSD BlueBridge 4 Input / 4 Output DSP Audio Processor


AED6,399.00

AtlasIED TSD-BB44Ā Overview

TheĀ TSD BlueBridge 4 Input / 4 Output DSP Audio ProcessorĀ fromĀ Atlas SoundĀ is a platform designed for sound reinforcement and AV applications. The DSP Processor can provide audio and Ethernet connectivity for TCP/IP third party control and programmability. Using microphone preamps from THAT Corporation and 24-bit converters, this processor obtains a low noise floor. The 40-bit floating point DSP engine is designed to prevent digital clipping and to obtain maximum speed and power to process advanced algorithms in complex system designs. The unit can operate on any network, and when connected, the processor will be recognized and controllable. The TSD BlueBridge processors offer fixed application embedded designs and the ability to design custom drag and drop systems. The TSD processor can be used for system designs that require limited I/O’s, but require a modern DSP platform. The design can be used as a standalone device to run a sound system or as a supplement to an existing system.

  • Drag and Drop architecture
  • Mic or Line selectable inputs
  • Balanced high gain outputs
  • Output peak and signal indicator LEDs
  • Low noise floor
  • THAT Corp mic preamp
  • Ethernet network connectivity
  • 24 dB converters
  • 48 kHz, 40-bit floating DSP engine
  • External power supply included
SKU: TSD-BB44 Category: Tag:
Input Type
Mic or Line, GUI selectable
Configuration
Electronically balanced
Gain
-40 to +15 dB in 0.25 dB Steps
Polarity
+/-, GUI selectable
Input Impedance
>10 kOhms
Maximum Input Level
+20 dBu
Phantom Power
48 V, GUI Enabled
Output Type
Line
Ouput Impedance
50 ohms
Maximum Output Level
+20 dBu
Frequency Response
20 Hz – 20 kHz
Dynamic Range
110 dB Type (unweighted)
Common Mode Rejection Ratio
>100 dB (50 Hz – 10 kHz)
Distortion
0.002% (1 kHz @ +4 dBu)
Dimensions
1.5 x 4.0 x 5.2″ (3.9 x 10.1 x 13.2 cm)
Weight
15 oz (425 g)
External Power Supply
cUL, CE, RoHS, TUV
Packaging Info
Package Weight
3.545 lb
Box Dimensions (LxWxH)
13.2 x 10.5 x 2.8″
