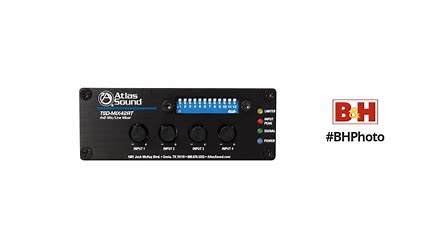

AtlasIED TSD- MIX42RT 4×2 Mic/Line Mixer with Priority Sense

The Atlas Sound TSD- MIX42RT 4×2 Mic/Line Mixer with Priority Sense is designed for applications where paging, priority music override or remote input selection with level control are required. Use alone or in conjunction with amplifiers in meeting rooms, digital signage, luxury suites, and other applications requiring versatile, stereo or mono multi source mix control.

The unit includes one mic/balanced line input via removable Phoenix style connector and three stereo 3.5mm inputs. Switchable phantom power is provided for the mic input to facilitate condenser microphones. The low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter at 125Hz also is available on the mic input to minimize bass rumble and low frequency feedback.

The TSD-MIX42RT can be used in conjunction with an Atlas Audio WPD-MIX42RT decor style wall plate that is designed for remote activation of the TSD-MIX42RT mic/line mixer. When connected to the TSD-MIX42RT and the Juke Box Override, any page made through the system will override the selected source so that the page can be heard clearly.

Priority paging can be accomplished via contact closure or VOX trigger on Input 1 that will mute Inputs 2, 3, or 4 (assignable). Remote level control feature allows use of the Atlas Sound AAVC-10K or WPD-VC10K decorative wall plate control for remote adjustment of either the entire master mix bus or inputs 1, 2, 3. A variable output limiter provides system protection by reducing clipping and distortion which can be useful when mixing mic and/or line sources with varying volumes. The unit requires a power supply (not included) for operation.
