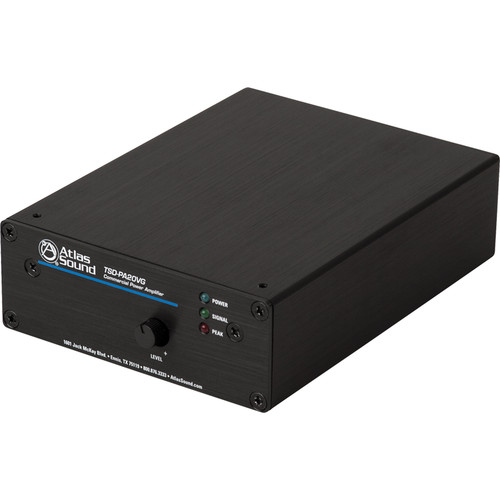

AtlasIED TSD-PA20VG Mono Power Amplifier

Add to Wishlist

1,399.00 د.إ

Add to Wishlist

TheĀ Atlas Sound TSD-PA20VG Mono Power AmplifierĀ is a mono amplifier for 4Ī© and distributed constant voltage speaker systems. Applications include house of worship cry rooms, hallways, restrooms, foyers and classrooms. The TSD-PA20V is also an alternative for small projector systems as it can be used with as many as 16 25/70/100V ceiling speakers (tapped at 1 watt each), and its small footprint allows for simplified mounting.

For sound masking applications the TSD-PA20VG has the capacity to drive up to 34 masking speakers tapped at 0.5 watts each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob to facilitate installation of a tamper-resistant cover. The unit requires a power supply (available separately) for operation.

Audio Applications
  • Projector Amplifier
  • Zone Amplifier
  • Paging Systems
20W Mono Amplifier
4Ī©/25/70/100V Output
One Balanced Input
Removable Level Control with Set-It-And-Forget-It Security Cover
Peak Indicator LED
Input Signal Indicator LED
Cable Management System
Multiple Mounting Configurations
Separate Ground Connections
Removable Phoenix Style I/O Connectors
SKU: TSD-PA20VG Category: Tag:
Key Specs
Number of Channels
1
Load Impedance / Voltage
4 Ohms
25 / 70 / 100 V
Analog Audio I/O
1x Screw Terminal 5-Pin Balanced Line Input
1x Screw Terminal 5-Pin Speaker Output
Load Impedance / Voltage
4 Ohms
25 / 70 / 100 V
Performance
Frequency Response
40 Hz to 20 kHz Ā±3 dB
Input Impedance
>10 Kilohms (Balanced)
>5 Kilohms (Unbalanced)
SNR
78 dB
THD
15% (1 kHz)
Connectivity
Analog Audio I/O
1x Screw Terminal 5-Pin Balanced Line Input
1x Screw Terminal 5-Pin Speaker Output
Power
Current Consumption
50 mA (Idle)
160 mA (Typical)
490 mA (Max)
Power Consumption
1.2 W (Idle)
3.8 W (Typical)
11.7 W (Max)
Physical
Display & Indicators
Blue LED (Power)
Green LED (Signal)
Red LED (Peak)
Dimensions
1.5 x 4.0 x 5.2″ / 39.0 x 101.0 x 132.0Ā mm
Weight
6Ā oz / 165Ā g
Packaging Info
Package Weight
2.88 lb
Box Dimensions (LxWxH)
7 x 7 x 3″
