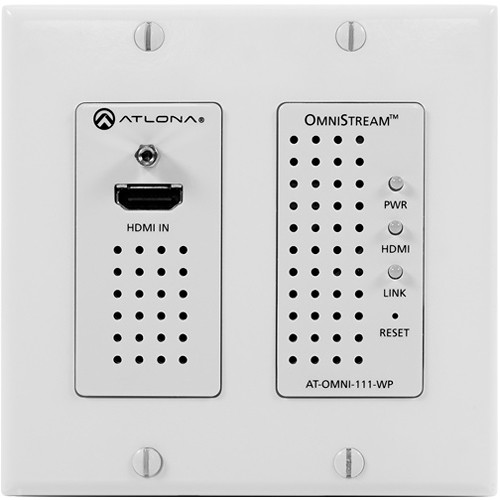

Atlona Single-Channel OmniStream 111 WP HDMI AV Encoder Wall Plate

Add to Wishlist
Key Features
  • Transmit HDMI Video over 1GB Ethernet
  • Encode and Stream Video/Audio over LAN
  • Powered via PoE, AES67 Compatible
  • Transmit Ultra-Low Latency 4K Video
  • Audio Pass-Through, EDID, HDCP Support
  • 2-Gang Wall Plate, Web GUI Configuration
  • AES-128 Encryption Support
  • Black and White Plates Included

10,999.00 د.إ

Add to Wishlist

Transmit up tp UHD/DCI 4K60 video over Gigabit Ethernet through different floors, across a campus, or between meeting rooms using this 2-gang Single-Channel OmniStream 111 WP HDMI AV Encoder Wall Plate from Atlona. The wall plate can transmit up to DCI 4K60 4:4:4 video and features one HDMI input and an RJ45 1GB output. The wall plate has a 2-gang design and is designed for US wall plate installation. Black and white wall plates are included to match your environment.

The plate supports HDR video including HDR10, HLG, and Dolby Vision, and supports up to 900 Mb/s bit rate. It can pass through multiple embedded audio formats from an HDMI source, including PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Digital Surround, and DTS-HD Master Audio. It is powered using PoE (Power-over-Ethernet) from a compatible network switch.

Applications
Enterprises and other Large Organizations
Maximize AV application flexibility by enabling content sharing within single meeting rooms, or corporate-wide broadcasting to every connected screen.
Distribute AV between Buildings
OmniStream allows virtually unlimited AV system scope and scale. For very large, expansive LANs, SMPTE-standard FEC (Forward Error Correction) ensures robust, reliable image presentation at every endpoint.
AV Content or Resource can be Shared Anywhere
AV over IP technology removes the restrictions associated with interconnecting sources and displays through standard matrix switching architecture.
Meeting Rooms and Conference Rooms
An IP network infrastructure makes it simple and efficient to design AV systems for small, large, and divisible meeting room configurations, and to centrally manage them throughout a facility.
Features
AV-over-IP Performance and Reliability over Gigabit Ethernet
Delivers pristine image quality and ultra-low latency over 1 Gb/s (GbE) networks and ideal for integration over new or legacy network cable infrastructure, including Cat 5e.
US Two-Gang Enclosure
Allows inconspicuous installation on a wall, in furniture, or in a floor box; black and white wall plates and faceplates are included; it meets end user requirements for conveniently accessible yet discreet AV connectivity.
HDMI up to UHD/DCI 4K with Embedded Audio
Streams video and audio with the flexibility of transmitting them together or to separate network destinations and allows wide-ranging versatility for integrators to design systems to specific requirements.
Networked AV Redundancy
Maximizes system reliability and meets IT requirements for system redundancy and failover.
Supports UHD 4K60 Plus HDR Formats
  • Ideal for new and emerging UHD and HDR-capable sources and displays
  • Supports HDR10 at 60p and 10-bit color as well as HLG (Hybrid Log-Gamma) for 60p HDR broadcast services and supports Dolby Vision 60p and 12-bit, delivering a dynamic HDR experience.
Visually Lossless Video Compression
SMPTE 2042 VC-2 light video compression with absolutely minimal, sub-frame latency from encode to decode, ensuring optimal, pristine-quality graphics and motion video presentations, and is ideal for applications requiring interactivity.
Supports Virtual Reality Applications
Compatible with HTC VIVE VR system at 2160 x 1200p90.
HDCP Compliance
Adheres to the latest HDCP 2.2 specification for High-Bandwidth Digital Content Protection, allows protected content streams to pass between authenticated devices, HDCP can be disabled through AMS, allowing content to pass to non-compliant displays and teleconference systems. Protected content is not transmitted.
Network Error Resilience with FEC
Compensates for AV packet losses in large systems spanning several networks.
Integration with Plug-and-Play Network Switch Compatibility
Streamline system setup by using Atlona Certified Switch configurations for popular models from Cisco, Pakedge, and many others, saving installation time and costs without the need to manually configure a network switch.
PoE (Power over Ethernet)
With PoE, encoders can conveniently be powered over the network from a PoE-equipped network switch; PoE simplifies integration without the need for local AC power and allows centralized power monitoring and management.
AES-128 Encryption
Any AV presentation content can be secured by scrambling IP streams, ensures secure content delivery across the network, ideal for government, military, and enterprise applications as well as meeting IT security requirements.
Industry-Standard Network Security Features and Protocols
HTTPS, Telnet, SSH, WebSockets with TLS, and AES-128 encryption, and it features IEEE 802.1x which meets IT authentication requirements for improved network security.
AES67 Compatible
OmniStream supports industry standard, AES67-compatible networked audio streams to decoders and audio interfaces and supports multichannel PCM up to 7.1 channels.
Simultaneous OmniStream and AES67 Audio Streaming
OmniStream encoders can deliver native OmniStream RTP networked audio alongside an AES67-compatible audio stream, Encoders also can provide multichannel PCM audio downmixing, and allows for streaming multichannel PCM to OmniStream decoders, plus downmixed PCM audio to an OmniStream 238 audio bridge.
Enhance AV Presentations with Visual Enhancements
Provide corporate or institutional branding by overlaying a logo, display a full-screen image as a backup in an event of an interruption in an AV stream or between presentations, and identify and label presentation content with static or scrolling text.
EDID Management
Manages EDID communications between source and encoder; allows integrators to force a source to a preferred resolution, and ensures desired audio formats and video resolutions are provided to the AV system; EDID can be assigned from a display connected to an OmniStream decoder.
Encoder Grouping
  • Assign up to eight encoders to a logical group
  • Allows a decoder to automatically switch between encoders in the group upon input detection, and create scalable, flexible switching systems with encoders placed wherever AV sources may be located.
Audio Processing and Pass-Through
  • Streams PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
  • Supports multichannel PCM audio downmixing to two-channel PCM.
System management
Configure with Atlona Management System (AMS) is a web-based interface for configuration and management of OmniStream systems, and AV over IP cross-connections.
SKU: AT-OMNI-111-WP Category: Tag:
Inputs / Outputs
Video Inputs
1x HDMI (2.0b) Female
Audio Inputs
No
Video Outputs
1x RJ45 Female
Audio Outputs
No
Expansion Slots
No
Format Support
Input Video Format
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
DCI 4K at 24/30 fps
UHD 4K at 24/25/30/50/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 25/29.97/30 fps
720p at 30/50/59.94/60 fps
576p at 50 fps
480p at 59.94/60 fps
576i / 625 lines at 25 fps
480i / 525 lines at 29.97/30 fps
WUXGA (1920 x 1200) at 60 fps
WUXGA+ (1680 x 1050) at 60 fps
UXGA (1600 x 1200) at 60 fps
HD+ (1600 x 900) at 60 fps
WXGA+ (1440 x 900) at 60 fps
SXGA+ (1400 x 1050) at 60 fps
FWXGA (1366 x 768) at 60 fps
SXVGA (1280 x 1024) at 60 fps
WXGA (1280 x 800) at 60 fps
1280 x 768 at 60 fps
XGA (1024 x 768) at 60 fps
Input Audio Format
LPCM (Linear Pulse-Code Modulation): 192 kHz / 24-Bit
Output Video Format
RJ45 (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
DCI 4K at 24/30 fps
UHD 4K 24/25/30/50/60 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 25/29.97/30 fps
720p 30/50/59.94/60 fps
576p 50 fps
576i / 625 lines 25 fps
480p 59.94/60 fps
480i / 525 lines 29.97/30 fps
WUXGA (1920 x 1200) 60 fps
WUXGA+ (1680 x 1050) 60 fps
UXGA (1600 x 1200) 60 fps
WXGA+ (1440 x 900) 60 fps
SXGA+ (1400 x 1050) 60 fps
FWXGA (1366 x 768) 60 fps
SXGA (1280 x 1024) 60 fps
WXGA (1280 x 800) 60 fps
XGA (1024 x 768) 60 fps
Output Audio Format
LPCM (Linear Pulse-Code Modulation): 192 kHz / 24-Bit
Standards
HDCP Support
Yes, Version 2.2
EDID Support
Manual Control
HDR Support
Not Specified by Manufacturer
DTS Compatibility
DTS, DTS-HD Master Audio
Dolby Compatibility
Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
IP Streaming
Video IP Encoding
RTP
Hardware
Wireless
No
Power
PoE Support
PoE 802.3af
Power Consumption
Device: 12.5 W
Environmental
Operating Temperature
22 to 82°F / -10 to 50°C
Storage Temperature
14 to 140°F / -10 to 60°C
Operating Humidity
20 to 95%
General
Certifications
CB, CE, FCC, RoHS
Dimensions
4.2 x 3.5 x 1.72″ / 106.5 x 88 x 43.65 mm
Weight
7.4 oz / 210 g
Packaging Info
Package Weight
1.17 lb
Box Dimensions (LxWxH)
11.3 x 7.5 x 2.8″
