Network Adapters

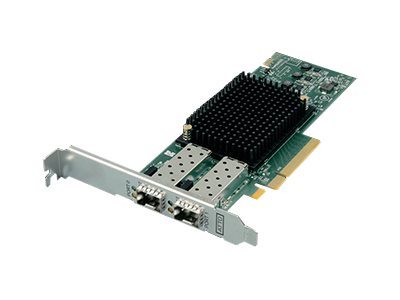

ATTO Celerity FC-162P – host bus adapter – PCIe 3.0 x8 – 16Gb Fibre Channel x 2
ATTO Celerity FC-162P – Host bus adapter – PCIe 3.0 x8 low profile – 16Gb Fibre Channel x 2
AED10,899.00
The ATTO Celerity FC-162P leverages two next-generation storage technologies – PCIe 3.0 interconnect and 16-Gigabit Fiber Channel to provide an advanced storage connectivity solution with high performance, intelligence and scalability. Celerity FC-162P 16Gb/s dual-channel HBAs deliver up to 3200 MB/s in a single PCIe slot solution, allowing original equipment manufacturers and system integrators to design state-of-the-art data infrastructures.
| Category | Details |
|---|
| General |
| Device Type | Host bus adapter |
| Form Factor | Plug-in card – low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Networking |
| Ports | 16Gb Fibre Channel x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 16Gb Fibre Channel, Fibre Channel |
| FC-AL, FC-AL-2, FC-FLA, FC-FS, FC-PLDA, FCP |
| Status Indicators | Port status, port transmission speed |
| Features | Full duplex capability, firmware upgradable, ADS |
| Expansion / Connectivity |
| Expansion Slots | 2 (total) / 0 (free) x SFP+ |
| Interfaces | 2 x 16Gb Fibre Channel – LC – x 2 |
| Power |
| Power Consumption Operational | 10.3 Watt |
| Software / System Requirements |
| Software Included | ATTO ConfigTool |
| OS Required | Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Vista / XP / 7, Apple MacOS X 10.6 or later, Microsoft Windows Server 2008, VMware ESXi 5 |
| Dimensions & Weight |
| Depth | 6.6 in |
| Height | 4 in |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
