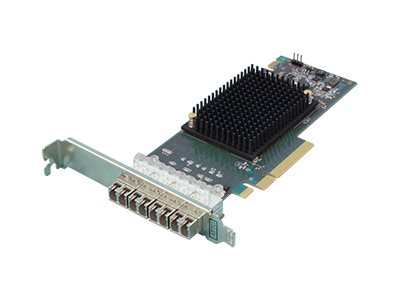

ATTO Celerity FC-164P – Host bus adapter – PCIe 3.0 x8 – 16Gb Fibre Channel x 4
17,299.00 د.إ
The ATTO Celerity FC-164P leverages advanced storage technologies to provide a flexible storage connectivity solution with high performance, intelligence and scalability.
| General |
|---|
| Device Type | Host bus adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Networking |
| Ports | 16Gb Fibre Channel x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | 16Gb Fibre Channel |
| Fibre Channel |
| FC-AL, FC-AL-2, FC-FLA, FC-FS, FC-PLDA, FCP |
| Status Indicators | Port status, port transmission speed |
| Features | Full duplex capability, firmware upgradable, |
| Advanced Data Streaming (ADS) |
| Expansion / Connectivity |
| Expansion Slots | 4 (total) / 0 (free) x SFP+ |
| Interfaces | 4 x 16Gb Fibre Channel – LC – x 2 |
| Miscellaneous |
| Compliant Standards | RoHS |
| Software / System Requirements |
| Software Included | ATTO ConfigTool |
| OS Required | Red Hat Linux, SuSe Linux, Microsoft Windows |
| Server 2003, Microsoft Windows Server 2008 R2, |
| Microsoft Windows Vista / XP / 7, Apple MacOS X |
| 10.6 or later, Microsoft Windows Server 2008, |
| VMware ESXi 5 |
| Dimensions & Weight |
| Depth | 6.5 in |
| Height | 4 in |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
