Network Adapters

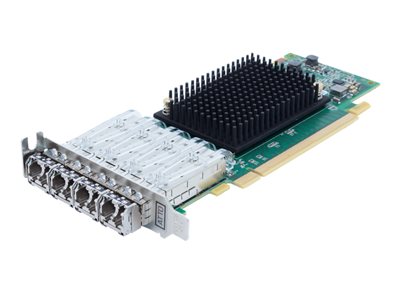

ATTO Celerity FC-324P – host bus adapter – PCIe 3.0 x16 – 32Gb Fibre Channel Gen 7 x 4
ATTO Celerity FC-324P – Host bus adapter – PCIe 3.0 x16 low profile – 32Gb Fibre Channel Gen 7 x 4
AED30,999.00
The ATTO Celerity FC-324P leverages two next-generation storage technologies – x16 PCIe 3.0 interconnect and Gen 7 Fibre Channel to provide an advanced storage connectivity solution with high performance, intelligence and scalability. Celerity FC-324P 32Gb/s quad-channel HBAs deliver up to 12.8 GB/s in a single PCIe slot, allowing original equipment manufacturers and system integrators to design state-of-the-art data infrastructures.
| General | Details |
|---|
| Device Type | Host bus adapter |
| Form Factor | Plug-in card – low profile |
| Interface (Bus) Type | PCI Express 3.0 x16 |
| PCI Specification Revision | PCIe 3.0 |
| Networking |
| Ports | 32Gb Fibre Channel Gen 7 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | 32Gb Fibre Channel |
| Fibre Channel | FC-FS, FCP, FC-PI-6 |
| Data Transfer Rate | 12.8 Gbps |
| Status Indicators | Port status, port transmission speed |
| Features | Full duplex capability, auto-negotiation, Advanced Data Streaming (ADS), Transparent (N_Port ID Virtualization – NPIV) mode support, Fabric-Device Management Interface (FDMI), Virtual Fabric mode |
| Expansion / Connectivity |
| Interfaces | 4 x 32Gb Fibre Channel – LC – x 2 |
| Power |
| Power Consumption Operational | 24.9 Watt |
| Software / System Requirements |
| OS Required | Apple MacOS, Linux, FreeBSD, Microsoft Windows Server, Microsoft Windows, illumos |
| Dimensions & Weight |
| Depth | 6.6 in |
| Height | 2.7 in |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
