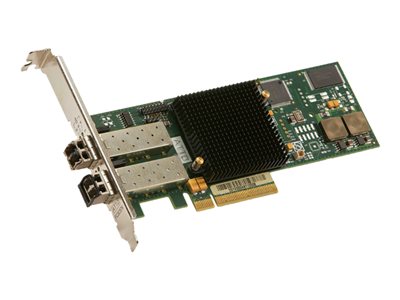

ATTO Celerity FC-82EN – host bus adapter – PCIe x8 – Fibre Channel x 2


ATTO Celerity FC-82EN – Host bus adapter – PCIe x8 – Fibre Channel x 2

6,199.00 د.إ

The ATTO Celerity FC-82EN leverages two next-generation storage technologies – PCIe 2.0 interconnect and 8-Gigabit fiber channel.

With 8-Gb FC speeds of up to 1600 MB/sec. per channel, the Celerity FC-82EN supports the most demanding application requirements, including high-definition video, rich content databases and other high-bandwidth environments. The FC-82EN takes advantage in host interconnect technology – PCIe 2.0 – a serial, high-speed connection that supports aggregate throughput up to 8 GB/second. ATTO Celerity host adapters are an integrated family of advanced storage connectivity solutions that are designed to provide reliable connectivity, intelligence and scalability.

Celerity fiber channel host adapters extend the capabilities of software and hardware, increase overall system performance and drive intelligence all the way to the edge of the SAN. Celerity, a platform for advanced storage connectivity.

Category Specification
General
Device Type Host bus adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express x8
PCI Specification Revision PCIe 2.0
Networking
Ports Fibre Channel x 2
Connectivity Technology Wired
Data Link Protocol 8Gb Fibre Channel, Fibre Channel
FC-AL, FC-AL-2, FC-FLA, FC-FS, FC-PLDA, FCP
Data Transfer Rate 8.5 Gbps
Features Firmware upgradable, Advanced Data Streaming (ADS)
Expansion / Connectivity
Expansion Slots 4 (total) / 0 (free) x SFP+
Interfaces 2 x Fibre Channel – LC – x 2
Compatible Slots 1 x PCI Express x8
Miscellaneous
Compatible with Windows 7 “Compatible with Windows 7” software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards EN55024, EN55022 Class B, FCC Part 15 B, RoHS, EN 60950-1, EN 60825
Software / System Requirements
OS Required Red Hat Linux, Microsoft Windows Server 2003, SuSE Linux Kernel 2.6.x, Apple MacOS X 10.4.x, Red Hat Fedora Core, Microsoft Windows Vista / XP, Microsoft Windows Server 2008, Apple MacOS X 10.5.x
Dimensions & Weight
Depth 6.6 in
Height 2.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95%
