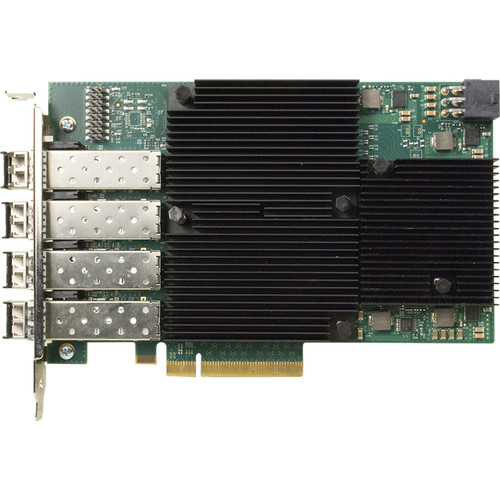

ATTO Technology Celerity FC-164P Quad-Channel 16 Gb/s Gen 6 Fibre Channel PCIe 3.0 Host Bus Adapter with SFF+s


Key Features
  • 4-Channel 16 GB/s Gen 6 Fibre with SFF+s
  • PCIe 3.0 x8 Host Connection
  • Up to 3200 MB/s per Port in Full-Duplex
  • 4 x 16 Gb/s LC SFF+ Transceivers
  • Works with 8 Gb/s & 4 Gb/s Fibre Devices
  • Supports NPIV & Virtual Fabric
  • Latency Management with ADS Technology
  • Configure & Manage HBA with ConfigTool
  • For Windows, VMware, FreeBSD & More
  • High- & Low-Profile Brackets Included

16,799.00 د.إ

Increase the communication speeds between your SAN devices with thisĀ Celerity FC-164P Quad-Channel 16 Gb/s Gen 6 Fibre Channel PCIe 3.0 Host Bus Adapter with SFF+sĀ fromĀ ATTO Technology. This HBA board provides your PCIe 3.0 x8-compatible device with four SFF+s for up to 6400 MB/s of total bandwidth. Utilizing ATTO’s exclusive Advanced Data Streaming technology, latency is managed for consistent data transfer performance for high-bandwidth applications. If your application requires a specific performance range, you can use ATTO’s ConfigTool to control, manage, and monitor the HBA’s settings.

Advanced Data Streaming Highlights
Bus Mastering eliminates the need for communicating with the host CPU of your device by transferring data directly between the HBA and the system memory. Doing this relieves the CPU from the burden of managing protocol activities and increases system bandwidth for other applications.
Tagged Command Queuing allows for multiple I/O commands to be processed in any order, improving overall performance of read and write requests to hard drives.
Disconnect/Reconnect is a feature that increases bus performance by eliminating wait times between the HBA and other devices. This can enable dynamic sharing of the bus bandwidth in sophisticated environments.
Advanced algorithms are implemented to provide optimized performance for workgroup applications such as digital content creation, rich media, prepress, and databases.
SKU: CTFC-164P-000 Category:
Connectivity
Networking I/O
4 xĀ 16Gb LC
System Connection
PCIe 3.0 x8 (Full-Height/Low-Profile Slot)
General
Operating System Support
FreeBSD, Illumos, Linux, VMware, Windows, macOS/OS X
OS Compatibility
FreeBSD
UNIX
Linux
VMware
Windows
macOS
*As of January, 2020: Check with manufacturer for the most up-to-date compatibility
Channels
4
Transfer Rates
Full-Duplex Mode: 3200 MB/s
Electrical
Power Source
Bus Powered
Physical
LED Indicators
Yes
Packaging Info
Package Weight
0.75 lb
Box Dimensions (LxWxH)
9.8 x 7.2 x 1.9″
