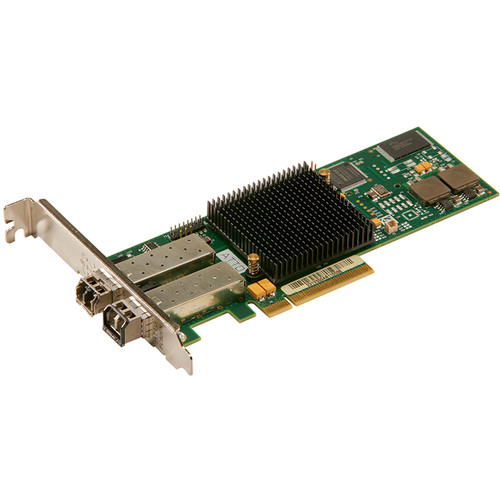

ATTO Technology Celerity FC-322E 32 Gb/s Fiber PCIe 3.0 Host Bus Adapter (Dual-Channel, 2x SFP Modules)

Add to Wishlist
Key Features
  • Dual-channel 32-Gigabit Gen 6 Fibre Channel HBA
  • 6400 MB/s throughput per port in full-duplex mode
  • Includes two 32 Gb/s LC SFP+ transceivers
  • x8 PCI Express 3.0 (PCIe 3.0) host connection
  • Backward compatible with 16Gb/s and 8Gb/s Fibre Channel products
  • Supports NPIV and virtual fabric

14,999.00 د.إ

Add to Wishlist

The ATTO Celerity FC-322E leverages two next-generation storage technologies – PCIe 3.0 interconnect and 32-Gigabit Fibre Channel to provide an advanced storage connectivity solution with high performance, intelligence and scalability. Celerity FC-322E 32Gb/s dual-channel HBAs deliver up to 6400 MB/s in a single PCIe slot solution, allowing original equipment manufacturers and system integrators to design state-of-the-art data infrastructures.

SKU: CTFC-322E-000 Category:
General
Device Type
Host bus adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express 3.0 x8
PCI Specification Revision
PCIe 3.0
Networking
Ports
32Gb Fibre Channel Gen 6 x 2
Connectivity Technology
Wired
Data Link Protocol
32Gb Fibre Channel
Fiber Channel
FC-FS, FCP
Data Transfer Rate
12.8 Gbps
Remote Management Protocol
HTTP
Status Indicators
Port status, port transmission speed
Features
Manageable, Virtual Fabric mode
Expansion / Connectivity
Expansion Slots
2 (total) / 0 (free) x SFP+
Interfaces
2 x 32Gb Fibre Channel – LC – x 2
Miscellaneous
Included Accessories
Low-profile bracket
Compliant Standards
EN55024, EN55022 Class B, RoHS, EN 60950-1, EN 60825-1, FCC Part 15 B Class A
Power
Power Consumption Operational
10.6 Watt
Software / System Requirements
Software Included
ATTO ConfigTool
Dimensions & Weight
Depth
6.6 in
Height
2.7 in
Manufacturer Warranty
Service & Support
Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
131 °F
Humidity Range Operating
10 – 90% (non-condensing)
Packaging Info
Package Weight
0.63 lb
Box Dimensions (LxWxH)
9.8 x 7.2 x 1.9″
