The ATTO ThunderLink FC 3322 acts as an external Thunderbolt 3 to Fiber Channel adapter, connecting Thunderbolt enabled workbooks and mobile workstations to the latest 32Gb/s Fiber Channel networks and storage devices. With dual channel configurations, the 32Gb/s Fiber Channel ThunderLink is an ideal solution providing support for failover and load balancing through ATTO’s exclusive MultiPath Director. With the combined power of Thunderbolt 3 and ATTO’s time-tested history with Fiber Channel users can achieve the highest I/O and data throughput for advanced video and access to IT applications.
Network Adapters

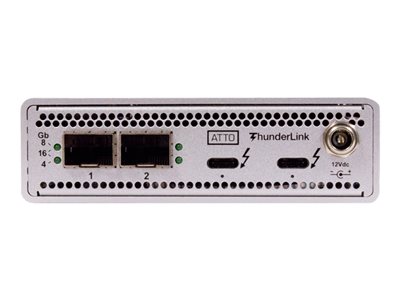

ATTO ThunderLink FC 3162 – network adapter – Thunderbolt 3 – 16Gb Fibre Channel x 2 – TAA Compliant
ATTO ThunderLink FC 3162 – Network adapter – Thunderbolt 3 – 16Gb Fibre Channel x 2 – TAA Compliant
AED12,699.00
| General |
|---|
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | Thunderbolt 3 |
| Localization | United States |
| Networking |
| Ports | 16Gb Fibre Channel x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 16Gb Fibre Channel |
| Fibre Channel | FC-FS, FCP |
| Data Transfer Rate | 16 Gbps |
| Status Indicators | Link/activity |
| Features | Auto-negotiation, load balancing, 4K resolution |
| support, FDMI, Virtual Fabric mode |
| Expansion / Connectivity |
| Interfaces | 2 x 16Gb Fibre Channel – SFP+ ¦ 2 x Thunderbolt 3 |
| Miscellaneous |
| Included Accessories | 2 x SFP+ LC transceivers |
| Compliant Standards | EN55024, EN 60950-1, cTUVus, EN 60825-1, FCC |
| Part 15 B Class A, EN 60825-2, RoHS 2011/65/EU, |
| EN 55032 Class A |
| TAA Compliant | Yes |
| Power |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements |
| OS Required | Microsoft Windows 7 or later |
| Dimensions & Weight |
| Width | 4.1 in |
| Depth | 8.7 in |
| Height | 1.2 in |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
